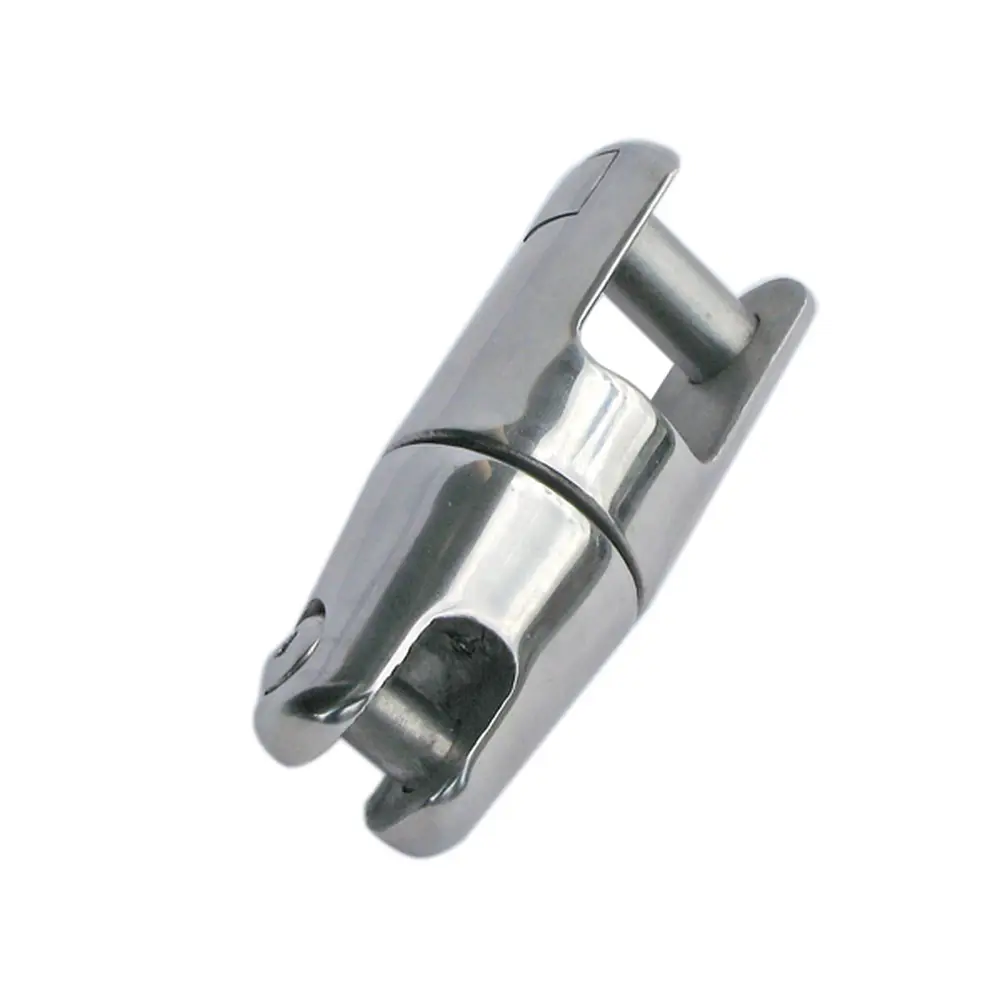

Anchor Swivel for 10-12mm Chain

Description

Suits 15kg – 30kg Anchors – 5000kg break load

Rated to:
3000lbs / 1250kg – Working Load
12500lbs / 5000kg – Maximum Load

The oval shaped joint allows perfect sliding of anchor through the bow roller with no risk of damaging the components. Each unit is quality tested and with stamped specifications.

Anchor swivels are designed to avoid twist on the chain/rope when launching the anchor. Tidal anchorages allow vessels to rotate around the anchor and create a situation where the chain or rope twists. The anchor may come up sideways or upside-down, and may get caught and obstruct on the bow roller. Anchor swivels prevent this.

Installing the swivel directly on to the shank of an anchor is not recommended as they are not designed for lateral loads. Installing inline with a few links of chain between the anchor and the swivel is good practice.

Dimensions:
95mm (l) x 38 (w)
Connection Pins Dia – 12mm & 10mm
