On larger boats there is normally space to recess a Battery ManagementPanel. BEP Marine has made numerous custom panels for different boatmanufacturers and has seen the need to create a standard range forcustom boat builders.
Features:
•Essential circuits, 24 hour supply
•Mains breakers for control panels, davit winches, or treatment systems
•Heavy duty breakers for anchor winches
•Powder coated aluminium panel
•Spare positions for additional battery switches and circuit breakers for extras such as radio batteries and genset batteries

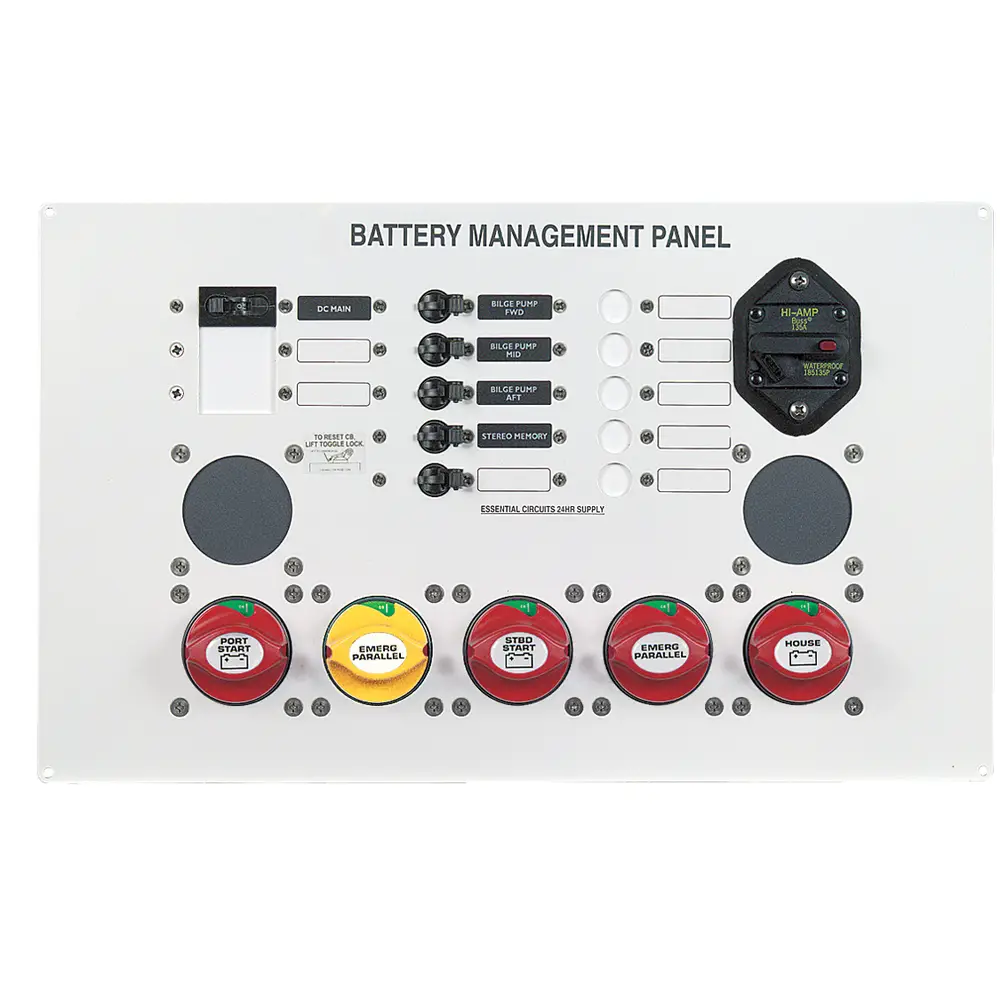

BEP 800-MS2 Battery Management Panel
$856.89 USD
In stock
In stock
Description
Panels are supplied with a BEP 703 heavy duty negative bus, to accommodate all negative connections at the battery.
Also supplied with a full label set for panel circuit breakers – Part No SET-MSP
The 800-MS2
Panel is designed for power boats 10 to 12m(32.9 to 39.5′) with twin engines.See product documents for recommended installation.
Dimensions:
281H x 463W x 75D mm
(11.1H x 18.25W x 2.9D Inches)
