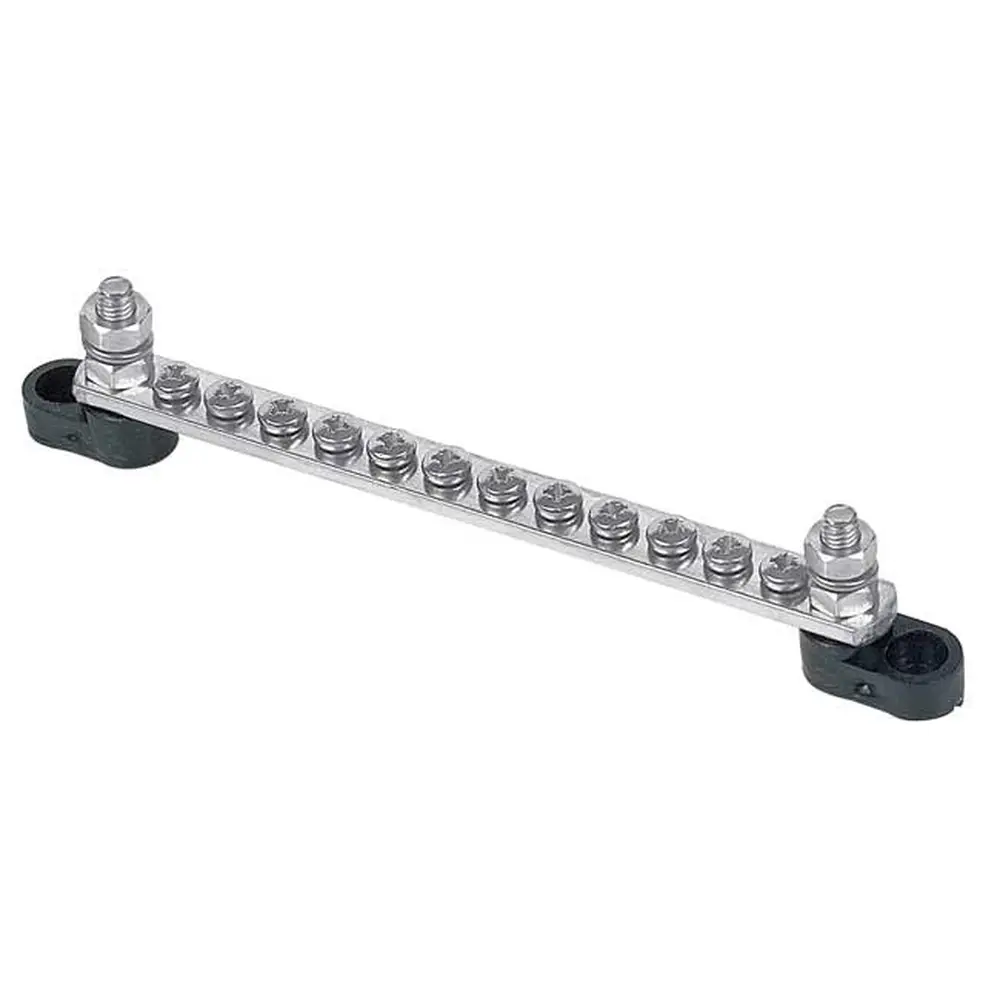

BEP Bus Bar – 12 Way
Dimensions:
177 x 15 x 29 mm
Features:
* 12 x 4mm (5/32″) stainless steel screws with shake proof washers.
* 2 x 6mm (1/4″) input studs
* 100A current rated
* Tin plated Brass
* Insulated mounting base with recessed mounting holes avoids accidential shorting on aluminum backing plates.
Specifications:
* Voltage Rating: 300 Volts AC Max & 48 Volts DC Max
* Bus material: Tin plated brass
* Stud material: Tin plated brass
* Screw Material: Stainless Steel
* Base material: Flame retardant plastic
