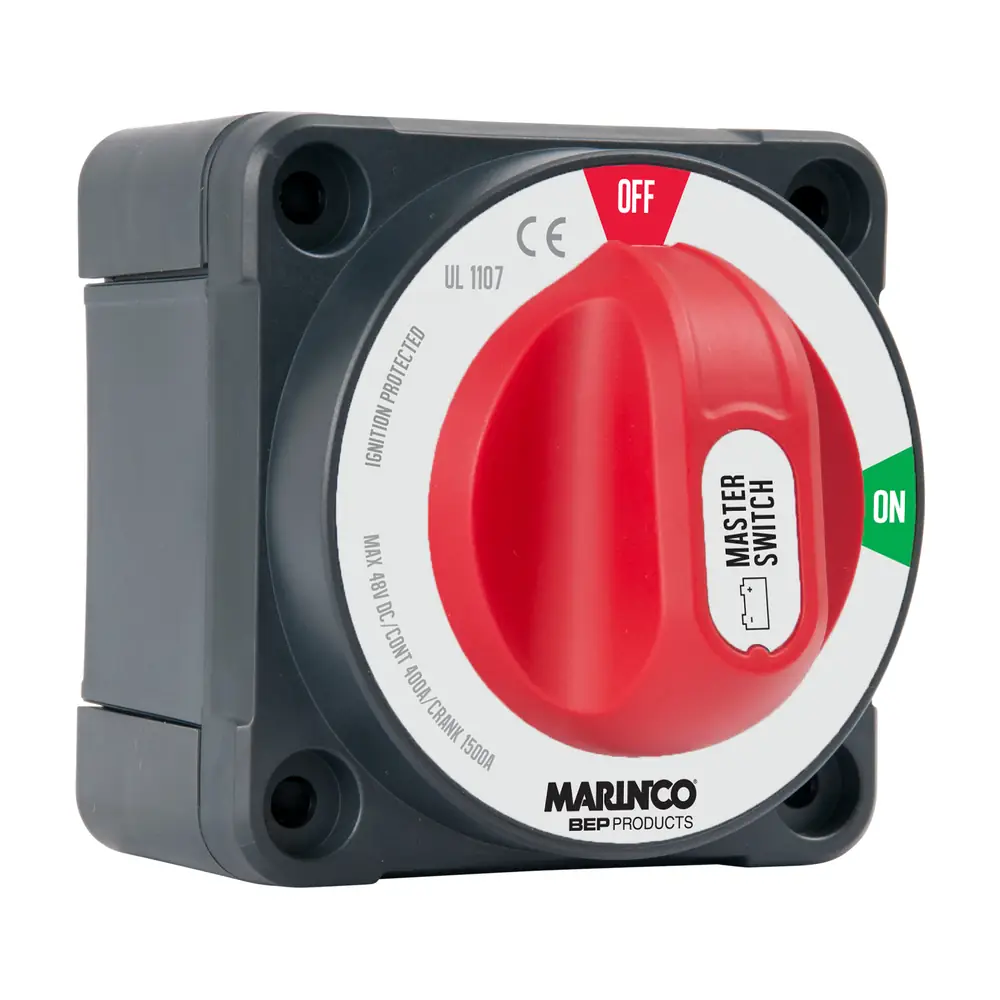

BEP Isolated Double Pole 400A battery Switch – MC10

Description

surface mounting only, stud 10mm 3/8

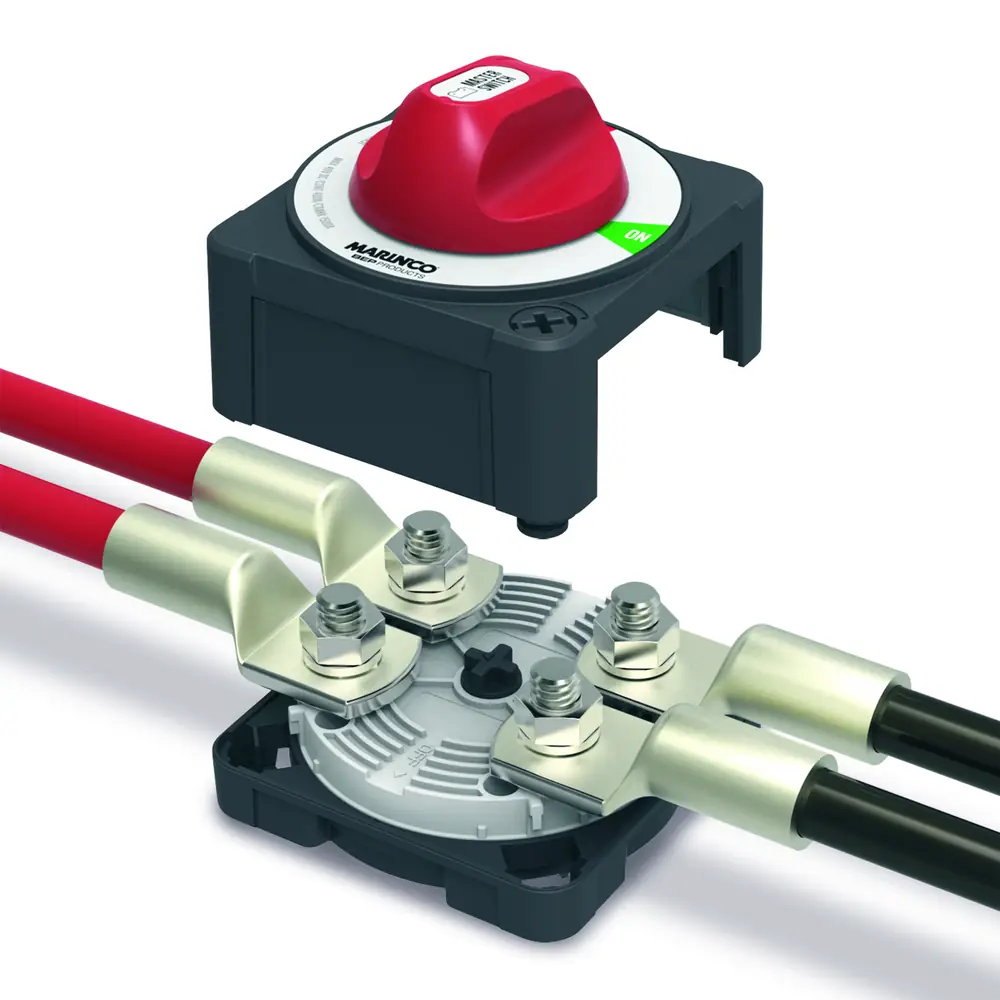

• Easy as 1, 2, 3, allows wiring from the front for the easiest surface mounting

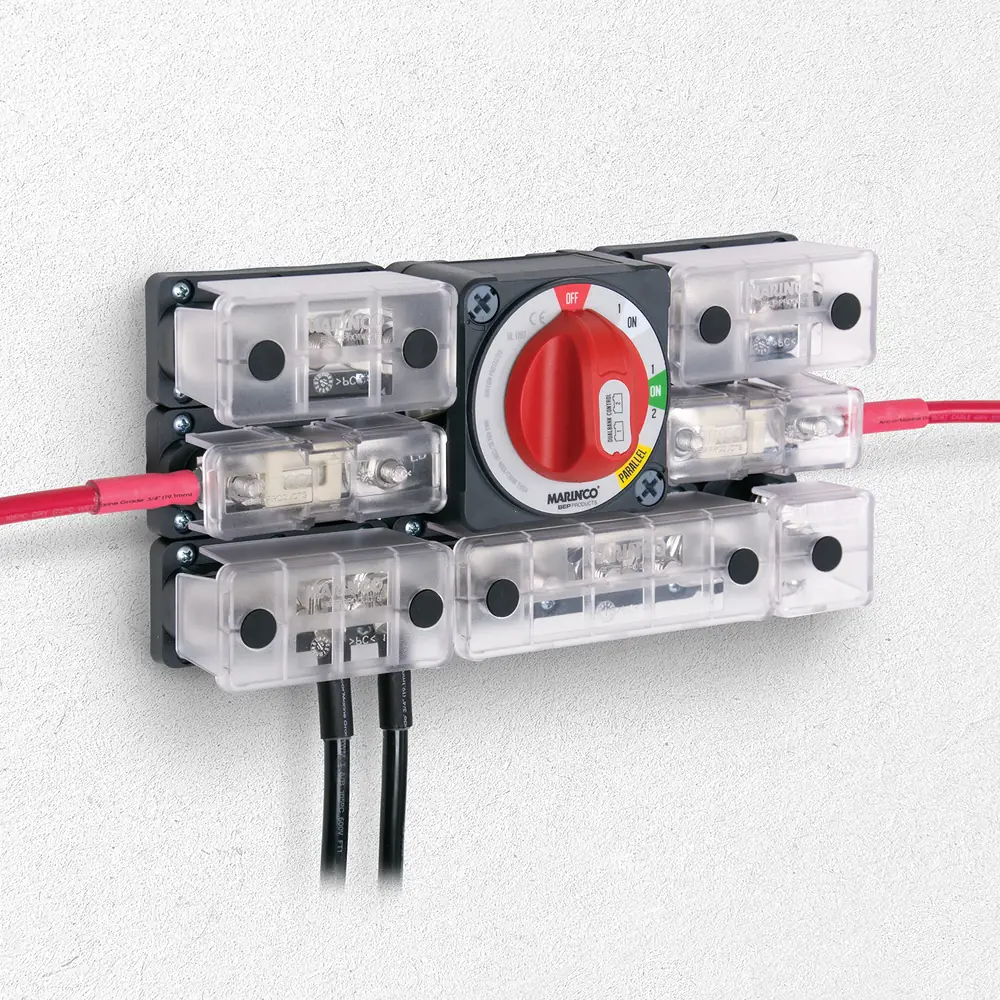

• Shared interconnection height, EZ-Mount battery switches “cluster” directly with Busbar Range
• Optimized cable access makes installation a breeze

• Tinned copper 10 mm (3/8 in) studs
• Stainless steel washers and nuts
• Fiber reinforced plastics
• 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking (cable size to achieve ratings 120mm², 4/0, smaller cable size will reduce the Amp rating)
• Waterproof to IP67
• Same interconnection height as Pro Installer

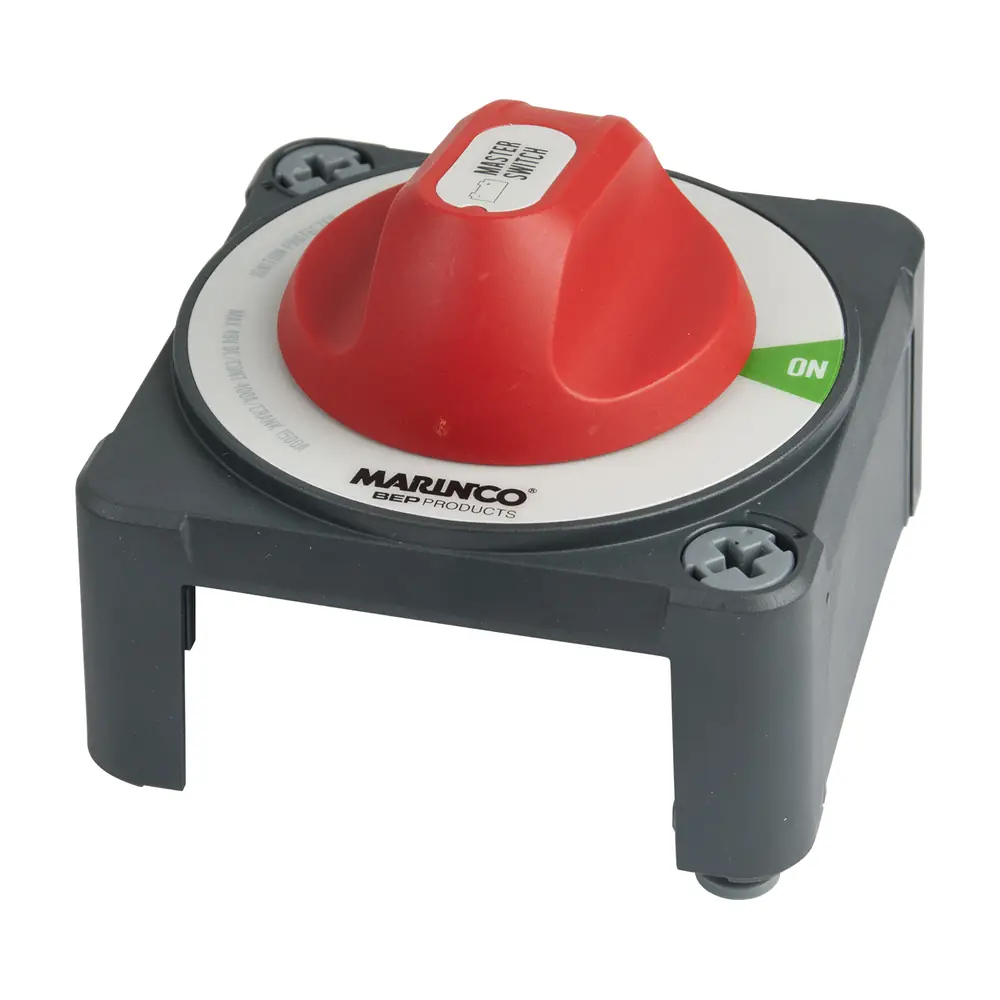

• Removable knob allows isolation during servicing
• 3 removable side plates for protection
• Industry standard 3.85 x 3.85 inch footprint
• Surface mount only

Specifications
4x M10 (3/8 inch) Connection Studs

Module Dimensions:  L x W x H: 98 x 98 x 93mm (3.85 x 3.85 x 3.64 inch)
