The DVSR (Digital Voltage Sensing Relay) allows charging of two independent battery banks from a single charging source. When the voltage on the start battery rises to a charged level, the DVSR engages allowing the 2nd battery to charge. When charging stops and voltage falls, the DVSR will disengage, isolating the two batteries from each other.

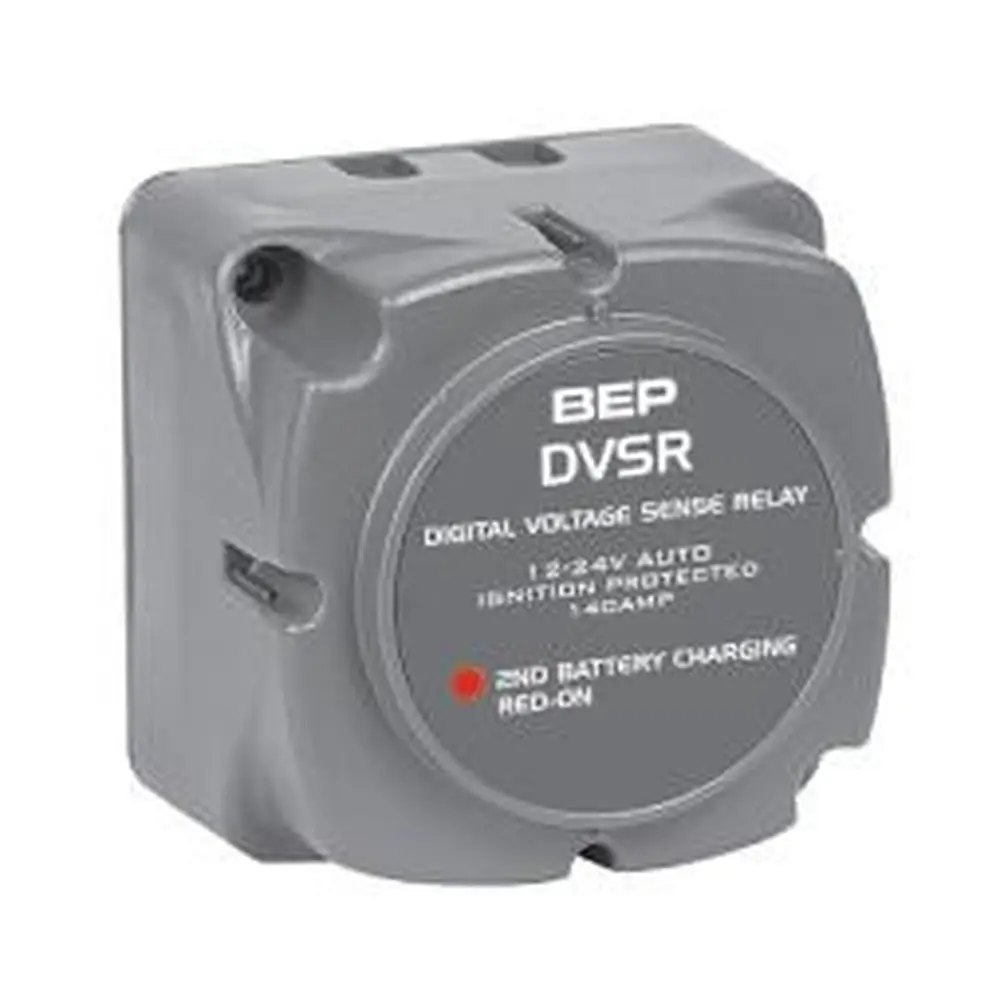

BEP Relay -DVSR 140 Amp – 12/24 Volt
$75.65 USD
In stock
In stock
Description
Dual sensing functionality enables the sensing of two battery banks, allowing two way charging.
Advantages of fitting a VSR over conventional charge (diode isolators).
* Easy 3 wire connection at the battery. No need to bypass existing alternator wiring.
* VSRs have no volt drop. Conventional diode isolators incur a minimum of 0.6 volt drop.
* Compact size – No large heat sink
* Cost effective solution
Dimensions:
69L x 69W x 50H mm
* Auto Dual Votage 12/24 Volt
* Dual Sensing Both battery Banks
* LED status light on unit
* Continuous Rating 125A
* Intermittent Rating 140A
* Power Consumption VSR Disengaged 1.8mA (at 12V)
* Power Consumption VSR Engaged 90mA (at 12V)
* Cut-In voltage 13.4 Volt (26.8V on 24 Volt systems)
* Cut-Out voltage 12.8 Volt (25.6V on 24 Volt Systems)
* Same 3 wire basic installation as old VSR.
Downloads
Information Sheet – Download
