Fiamma Vent 160 – 400 x 400

Description

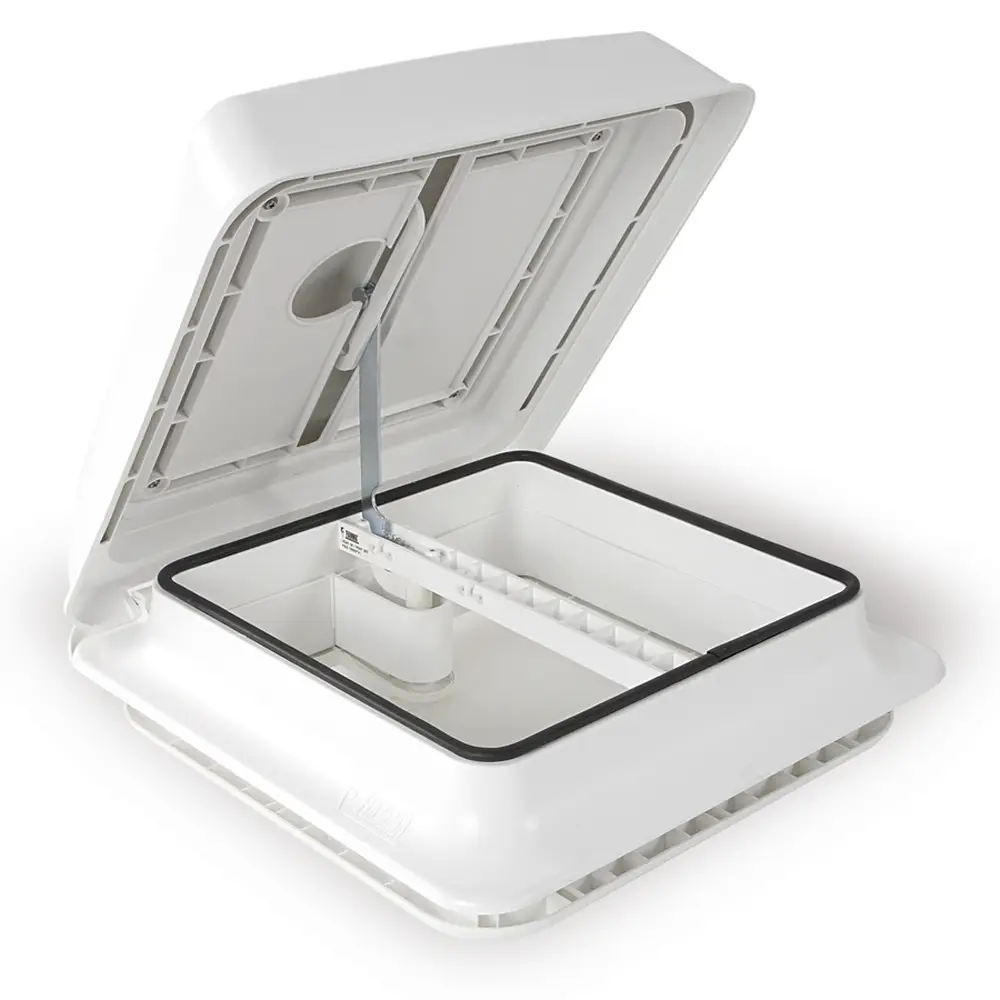

Fiamma’s range of 40 cm roof lights offer high quality and durability. Thanks to their elegant external aerodynamic profile top, they do not require the use of the Spoiler. During high-speed testing, noise and vibrations were greatly reduced. The outer cover and exclusive patented rubber seal, guarantee a watertight system and ensures that rain is displaced.

With an elegant internal frame, the Roof Vent is easily fitted using a sandwich method with screws tightened from inside the vehicle, pulling the inner frame to the outer one and sandwiching the caravan or vehicle between the two parts.

• Supplied with permanent ventilation and mosquito screen
• Aerodynamically shaped top to reduce wind noise at high speed

This hatch can be secured to the roof externally by screwing the outer frame down with stainless screws.

• Now more aerodynamically shaped top to reduce wind noise at high speed
• Installs on 390mm x 390mm apertures and up to 400mm x 400mm openings
• Can be installed on roofs from 25mm to 50mm thick.

This roof vent does not come with any screws. You should require 3.5mm wood screws of various lengths depending on what thickness of roof you are fitting it to.

• Interchangeable with the old 40x40cm Fiamma rooflights
  Supplied with permanent air flow ventilation and a mosquito screen

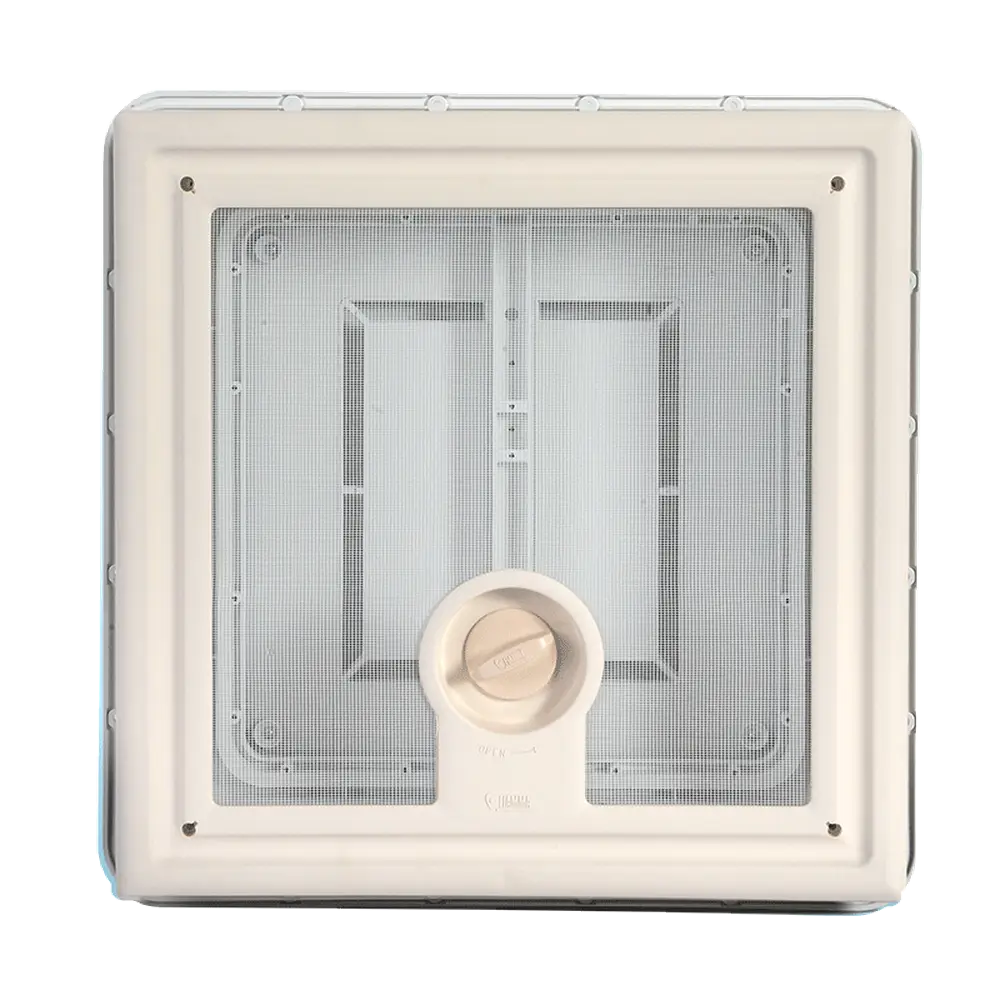

• Cream white frame

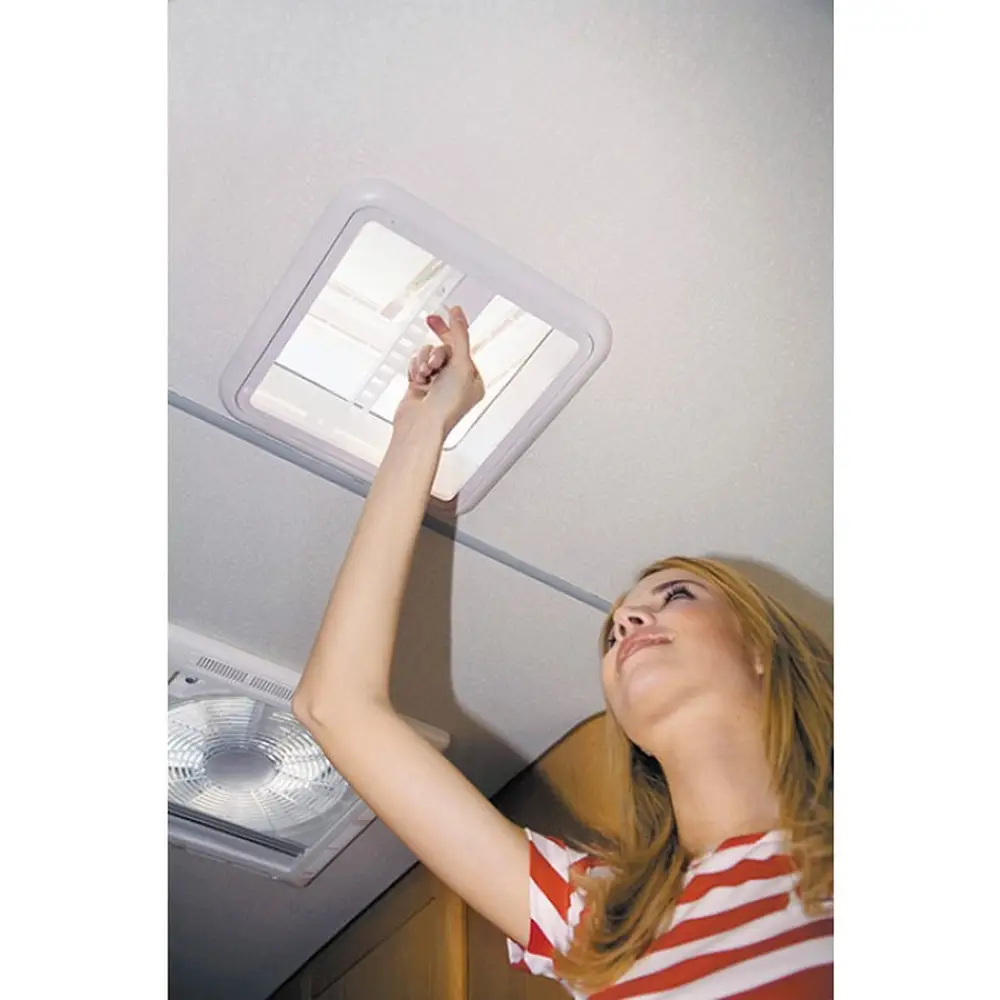

• Windup handle operated from inside
• Fly screen
• Weight 2.5 kg

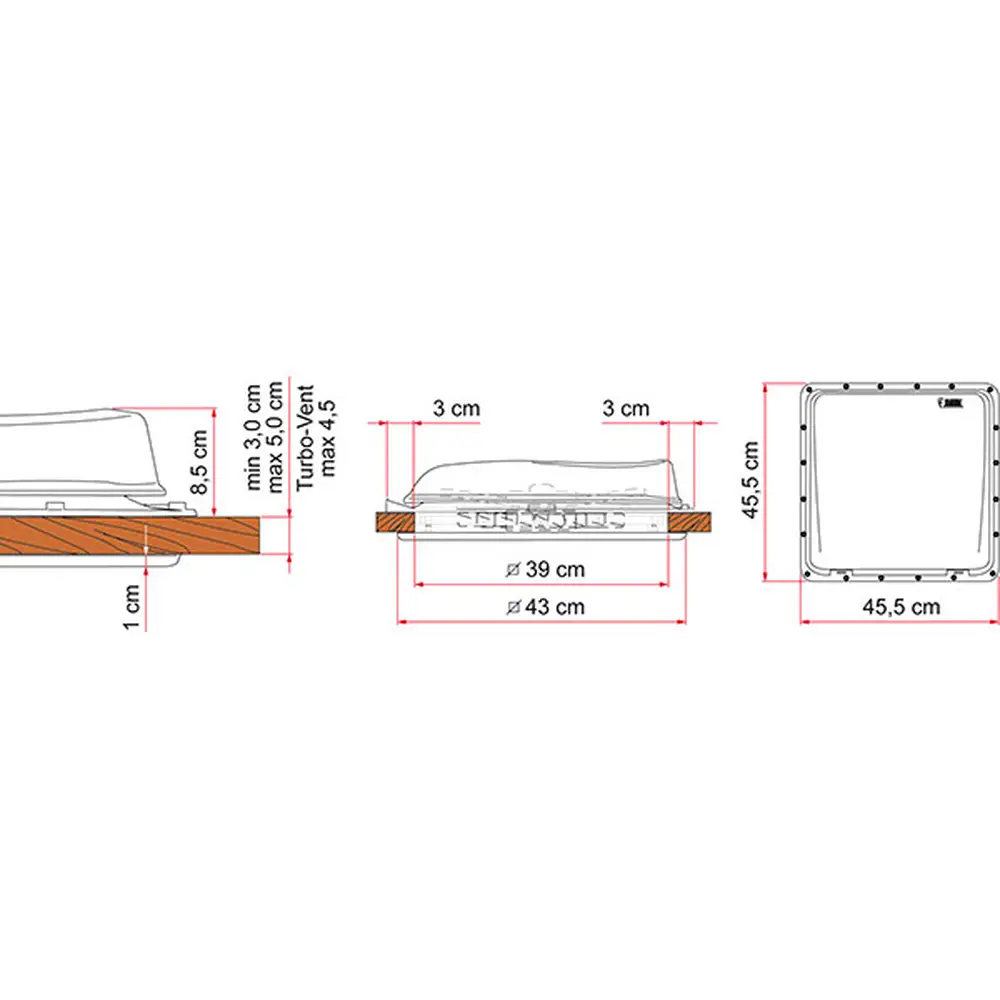

• Required flat surface area: 460 mm x 460 mm
• Max lid opening height: 370 mm
• Height when closed 90 mm
• Cut-out dimensions: 390 mm x 390 mm
• Roof thickness 25 mm -50 mm
• 1 Year Factory Warranty
