Name: FLIR M364C - Thermal &amp; Colour Image Low Light Camera
SKU: M364C
Availability: InStock

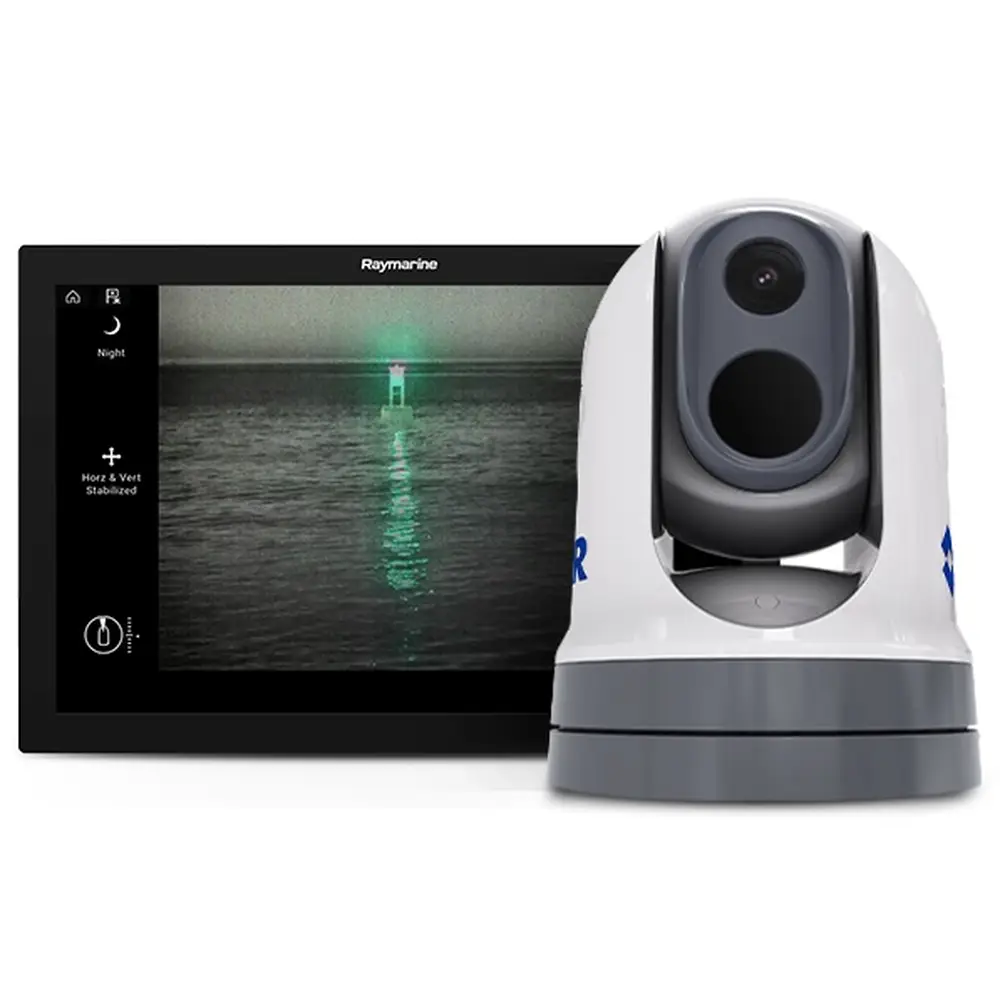

FLIR M364C – Thermal & Colour Image Low Light Camera

Featuring a high definition low light colour camera and one of the most advanced FLIR thermal imaging cores, the M364C provides an elite level of awareness on the water.

POA

In stock

Product Code: M364C

Categories: FLIR Marine Cameras, FLIR Thermal Imagers

Description

Both cameras use multispectral imaging to deliver exclusive FLIR Colour Thermal Vision™ (CTV) technology. Colour Thermal Vision blends visible camera details with a thermal image, overlaying vital colour imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene.

Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C indispensable tools for professionals, commercial mariners, and serious recreational boaters.

Elite Awareness with Advanced Multispectral Imaging
Thermal and visible imaging featuring FLIR Colour Thermal Vision and MSX®.

High Definition Navigation
Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.

A STEADY VIEW IN ROUGH SEAS
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Specifications

SPECIFICATIONS

Detector Type: 640 x 512 VOx Microbolometer
Field of View: 24° x 18°
Image Processing: FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output: Yes
Network Video Output: Single H.264 Network Video Stream
Pan & Tilt Adjustment Range: 360° Continuous Pan, +/- 90° Tilt
Pan/Tilt: Yes

COLOUR CAMERA

E-Zoom – Colour: 12x

CONNECTIONS & COMMUNICATIONS

Analog Video Output: NTSC
Analog Video Connector Types: BNC

DAYLIGHT IMAGING

Zoom: 30x Optical Zoom
Detector Type – Daylight: 1/2.8” Exmor R CMOS
Field of View – Daylight: Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
Focal Length – Daylight: 129 mm to 4.3 mm
Lines of Resolution – Daylight: High Definition up to 1080/30p
Minimum Illumination – Daylight: 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on)

ENVIRONMENTAL

Automatic Window Defrost: Standard at Power-Up
Lightning Protection: Standard
Operating Temperature Range: -25°C to +55°C
Salt Mist: IEC60945
Shock: 15g vertical, 9g horizontal
Vibration: IEC60945
Water Ingress: IPX6 (heavy seas, power jets of water)
Wind: 100 knots (115.2 MPH)
Sand & Dust Ingress: Mil-Std-810E or IP6X

MARINE IMAGING & OPTICAL

Focus: Fixed 12ft (3m) to infinity

THERMAL IMAGING

Continuous E-Zoom: 8x
Focal Length – Thermal: 18mm
Video Refresh Rate – Thermal: 30 Hz
