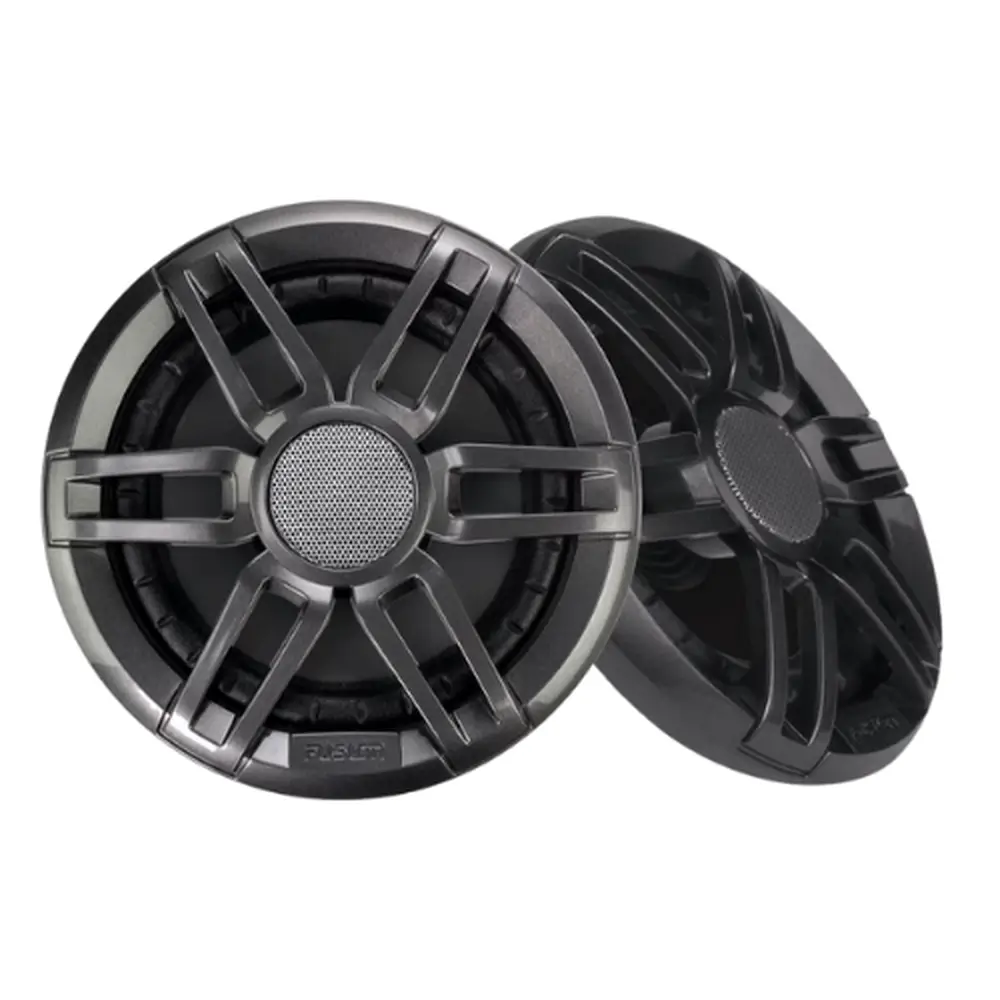

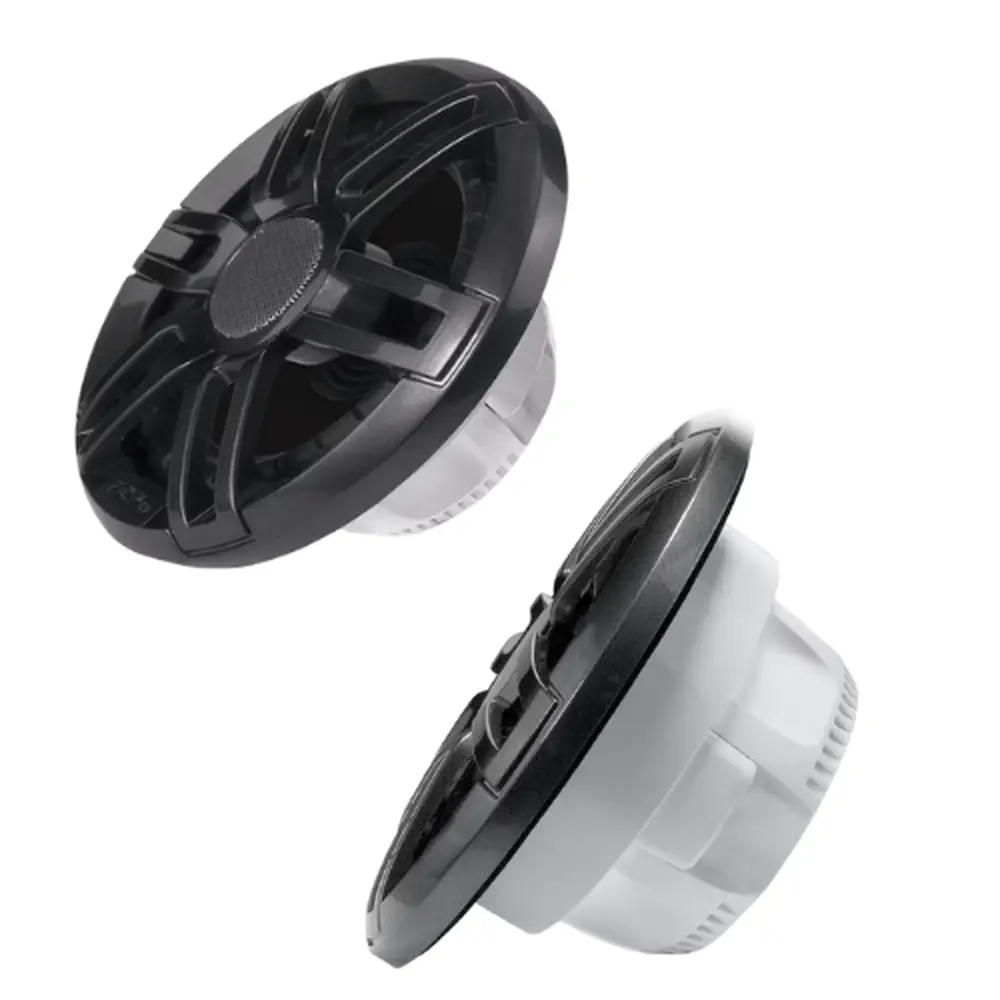

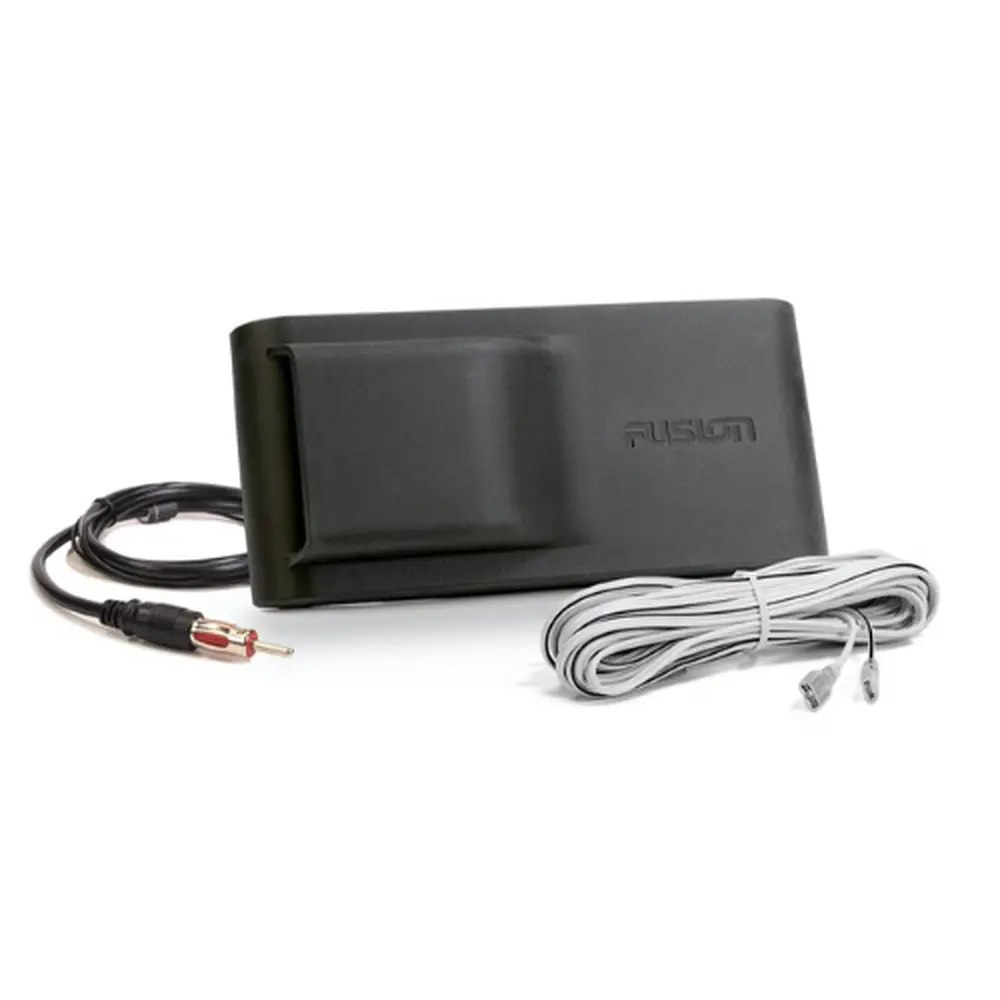

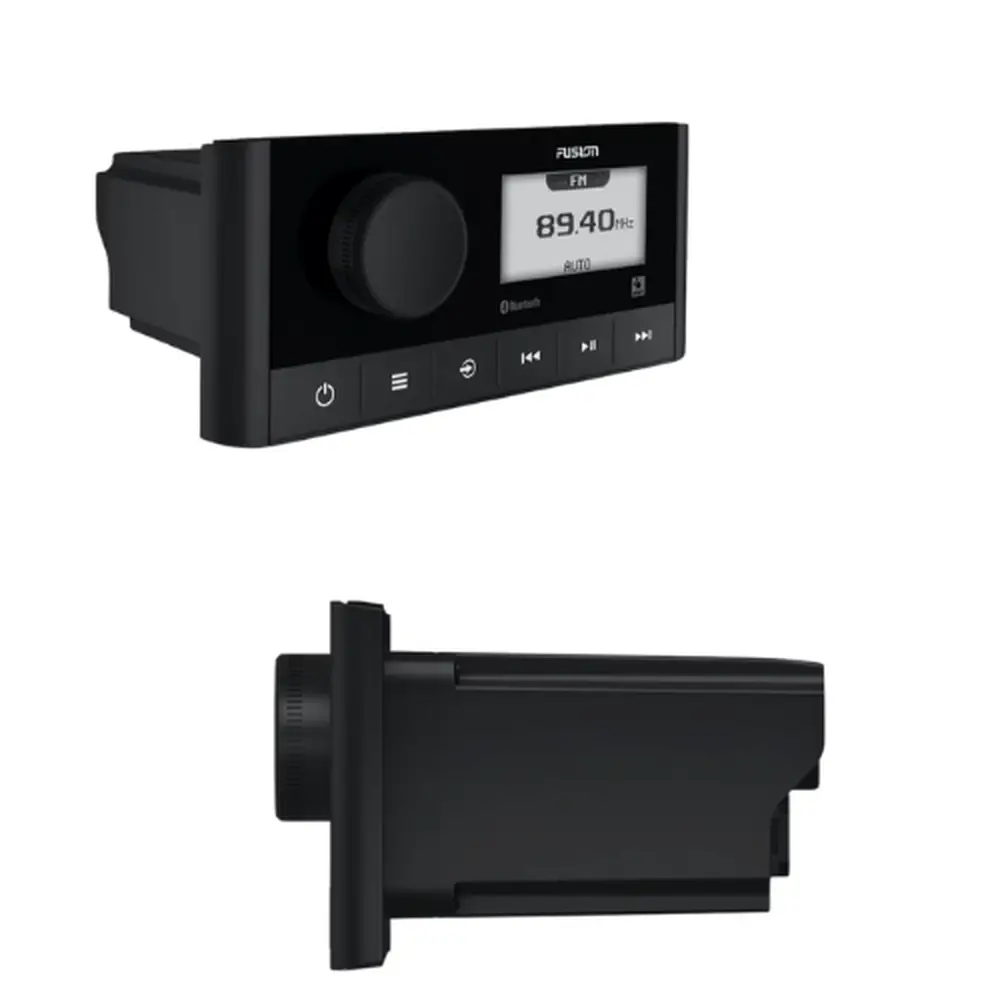

Kit includes: MS-RA60 marine stereo, one pair of 6.5″ EL Series sports gray marine speakers, stealth antenna, two 19 ft (6 m) speaker wires, dust cover, wiring harnesses and mounting accessories.

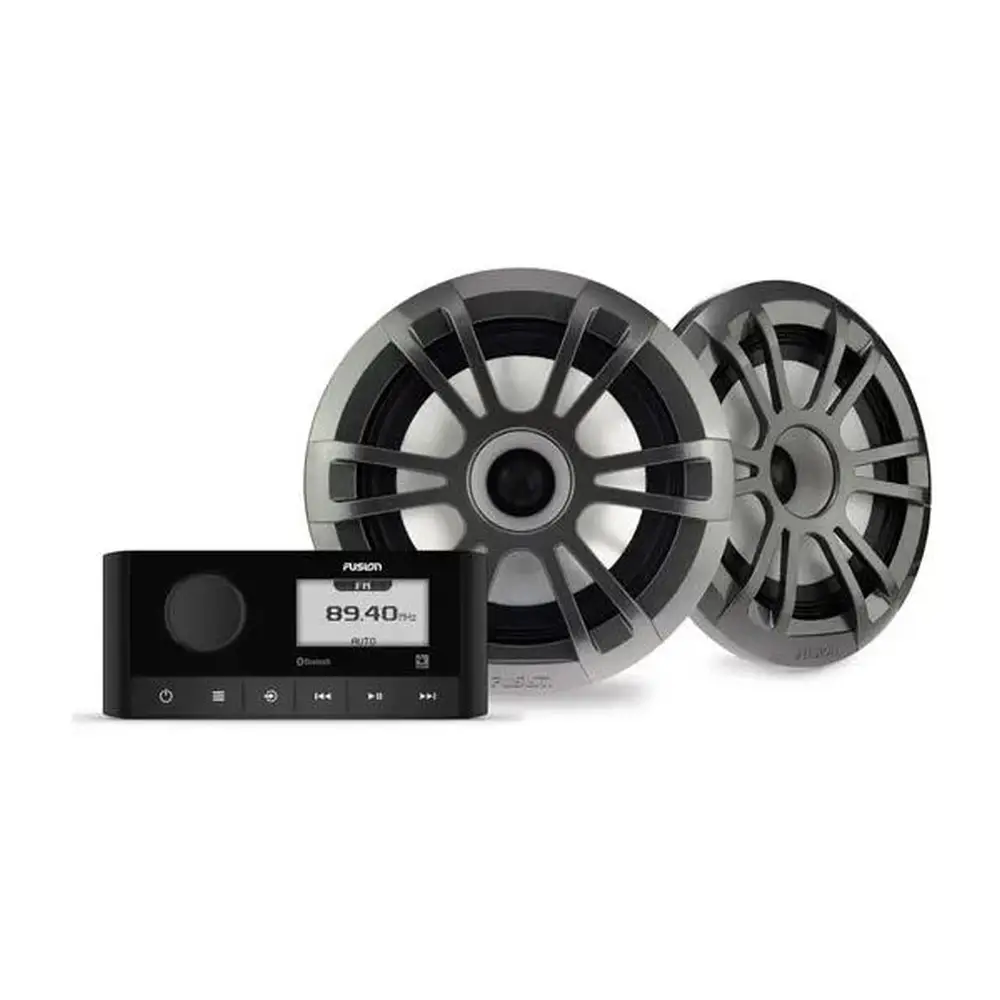

Fusion RA60 + 6.5″ speaker pack
$317.74 USD
In stock
In stock
Description
Amplify the moment with the Fusion MS-RA60 and EL Series sports gray speaker kit. This package puts the perfect soundtrack at your fingertips with everything you need to create an exceptional music experience on your boat at an outstanding value.
Features:
- Enjoy Your Music ASAP: Your marine stereo and both speakers come ready to install with included accessories and wiring.
- Class-D Amplifier (4 ohm): The MS-RA60’s built-in Class-D amplifier brings aboard higher efficiency and greater output.
- Multi-Zone™ Technology: Two independent audio zones are available for a customized listening experience on your boat, each with advanced localized menu controls including volume limits, zone naming and more. Note: Subwoofer and full range line outs require additional amplification.
- Over-The-Air Software Updates: Conveniently update software via BLUETOOTH® technology from the Fusion-Link™ app on your compatible smartphone.
- Fusion-Link™: Easily control music from your compatible smart device (via BLUETOOTH) or Garmin watch (via ANT® Technology).
- Grow Your System: Add additional Fusion speakers, subwoofers, amplifiers and accessories to enhance your on-water audio entertainment experience.
-
t
- Enjoy Your Music ASAP: Your marine stereo and both speakers come ready to install with included accessories and wiring.
- Class-D Amplifier (4 ohm): The MS-RA60’s built-in Class-D amplifier brings aboard higher efficiency and greater output.
- Multi-Zone™ Technology: Two independent audio zones are available for a customized listening experience on your boat, each with advanced localized menu controls including volume limits, zone naming and more. Note: Subwoofer and full range line outs require additional amplification.
- Over-The-Air Software Updates: Conveniently update software via BLUETOOTH® technology from the Fusion-Link™ app on your compatible smartphone.
- Fusion-Link™: Easily control music from your compatible smart device (via BLUETOOTH) or Garmin watch (via ANT® Technology).
- Grow Your System: Add additional Fusion speakers, subwoofers, amplifiers and accessories to enhance your on-water audio entertainment experience.
t
t
t
t
t
Specifications
Product Specifications
-
t
- Stereo Dimensions (HxWxD)2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
- Stereo Weight11.1 oz (316 g)
- Stereo Water RatingIPX6 and IPX7 (front panel only, when properly installed)
- Stereo Power Input10.8-16 VDC
- Stereo Operating Temperature Range32° to 122° F (0° to 50° C)
- Stereo Current (max.)15 A
- Stereo BLUETOOTH® Wireless RangeUp to 30 ft (10 meters)
- Stereo ANT® Wireless RangeUp to 10 ft (3 meters)
- Stereo Wireless Frequencies/ProtocolsBLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
- Stereo Compass-safe Distance5.9″ (150 mm)
- Stereo Display2.3″ perimeter bonded monochrome dot matrix LCD
- Stereo Built-in AmplifierClass-D (minimum 4 ohm impedance)
- Stereo Peak Power180 W
- Stereo Rated Power Output (4 ohm)22 W rms x 4 @ 14.4 V input < 10% THD
- Stereo Fusion-Link™ Controlyes (with smartphone and Garmin watch)
- Stereo Multi-Zone™ Technology2 zones
- Stereo BLUETOOTH Wireless Technologyyes
- Stereo DAB+ Readyyes (DAB tuner built in)
- Stereo Multi-language InterfaceDutch, English, French, German, Italian, Spanish
- Stereo Software UpdatesOver-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
- Stereo Warranty1 year
- Stereo SourcesAM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)
- Stereo Auxiliary InputOne RCA input (AUX)
- Stereo AM/FM RadioOne Motorola antenna connector port
- Stereo Speaker Connections4 x speaker connections (2 zone amplified)
- Stereo RCA Pre-out (Left, Right and Subwoofer)1 zone (requires external amplification)
- Stereo Line OutZone 1 (L + R, requires external amplification)
- Stereo Subwoofer OutZone 1 (requires external amplification)
- Speaker Physical Dimensions (Diameter x Depth)6.93″ x 2.32″ (176 x 59 mm)
- Speaker Water RatingIP65
- Speaker ConfigurationFull range
- Speaker Size6.5″
- Speaker Peak Power (watts)80 W
- Speaker RMS Power (watts)20 W
- Speaker Sensitivity (1 W / 1 m)91 dB
- Speaker Frequency Response45 Hz – 16 kHz
- Speaker Nominal Impedance4 ohm
- Speaker Recommended Amplifier Power (RMS)20-40 W/Ch
- Speaker Operating Temperature Range32° to 122° F (0° to 50° C)
- Speaker Voice Coil Diameter0.79″
- Speaker Cone MaterialPolypropylene cone with cloth surround
- Speaker Compass-safe Distance100″ (254 cm)
- Speaker Warranty1 year
- Speaker Mounting Diameter Clearance5.12″ (130 mm)
- Speaker Mounting Depth Clearance1.69″ (43 mm)
- Product Specifications
- Stereo Dimensions (HxWxD)2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
- Stereo Weight11.1 oz (316 g)
- Stereo Water RatingIPX6 and IPX7 (front panel only, when properly installed)
- Stereo Power Input10.8-16 VDC
- Stereo Operating Temperature Range32° to 122° F (0° to 50° C)
- Stereo Current (max.)15 A
- Stereo BLUETOOTH® Wireless RangeUp to 30 ft (10 meters)
- Stereo ANT® Wireless RangeUp to 10 ft (3 meters)
- Stereo Wireless Frequencies/ProtocolsBLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
- Stereo Compass-safe Distance5.9″ (150 mm)
- Stereo Display2.3″ perimeter bonded monochrome dot matrix LCD
- Stereo Built-in AmplifierClass-D (minimum 4 ohm impedance)
- Stereo Peak Power180 W
- Stereo Rated Power Output (4 ohm)22 W rms x 4 @ 14.4 V input < 10% THD
- Stereo Fusion-Link™ Controlyes (with smartphone and Garmin watch)
- Stereo Multi-Zone™ Technology2 zones
- Stereo BLUETOOTH Wireless Technologyyes
- Stereo DAB+ Readyyes (DAB tuner built in)
- Stereo Multi-language InterfaceDutch, English, French, German, Italian, Spanish
- Stereo Software UpdatesOver-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
- Stereo Warranty1 year
- Stereo SourcesAM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)
- Stereo Auxiliary InputOne RCA input (AUX)
- Stereo AM/FM RadioOne Motorola antenna connector port
- Stereo Speaker Connections4 x speaker connections (2 zone amplified)
- Stereo RCA Pre-out (Left, Right and Subwoofer)1 zone (requires external amplification)
- Stereo Line OutZone 1 (L + R, requires external amplification)
- Stereo Subwoofer OutZone 1 (requires external amplification)
- Speaker Physical Dimensions (Diameter x Depth)6.93″ x 2.32″ (176 x 59 mm)
- Speaker Water RatingIP65
- Speaker ConfigurationFull range
- Speaker Size6.5″
- Speaker Peak Power (watts)80 W
- Speaker RMS Power (watts)20 W
- Speaker Sensitivity (1 W / 1 m)91 dB
- Speaker Frequency Response45 Hz – 16 kHz
- Speaker Nominal Impedance4 ohm
- Speaker Recommended Amplifier Power (RMS)20-40 W/Ch
- Speaker Operating Temperature Range32° to 122° F (0° to 50° C)
- Speaker Voice Coil Diameter0.79″
- Speaker Cone MaterialPolypropylene cone with cloth surround
- Speaker Compass-safe Distance100″ (254 cm)
- Speaker Warranty1 year
- Speaker Mounting Diameter Clearance5.12″ (130 mm)
- Speaker Mounting Depth Clearance1.69″ (43 mm)
