Price range: $33.79 through $65.06 USD

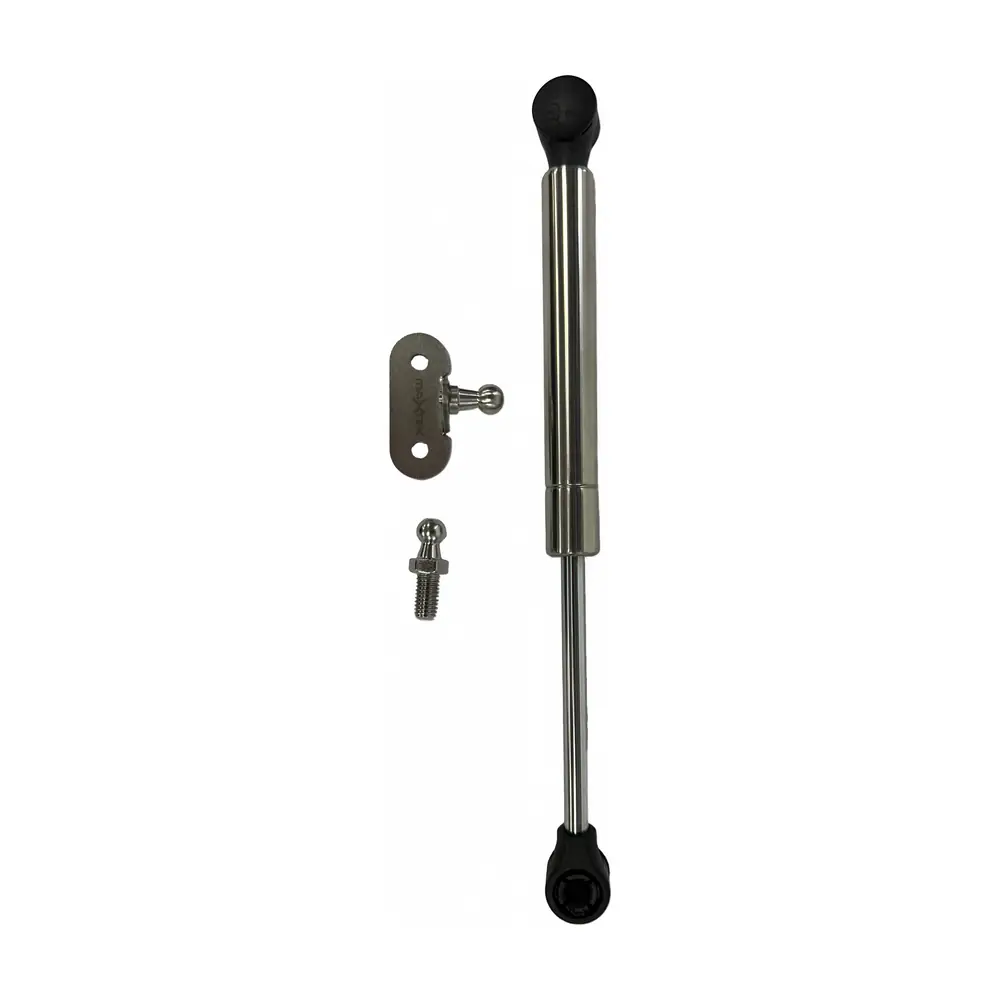

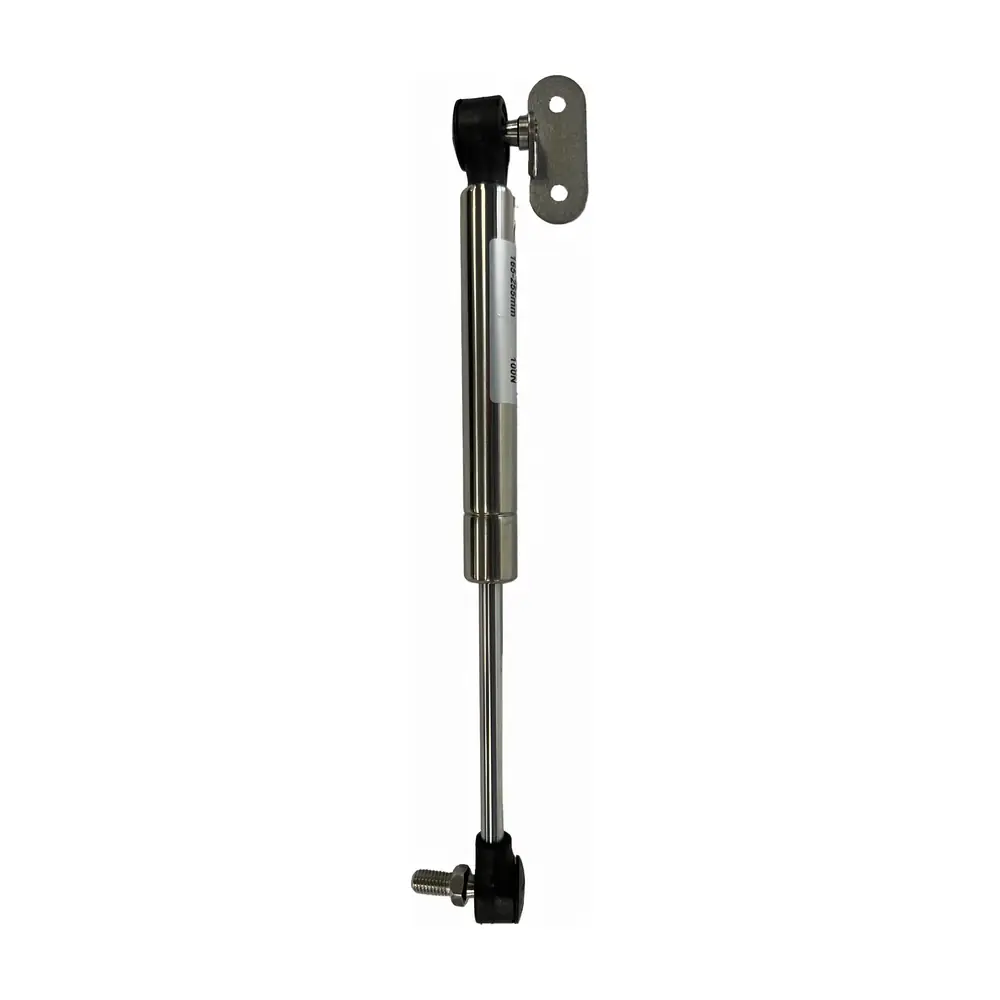

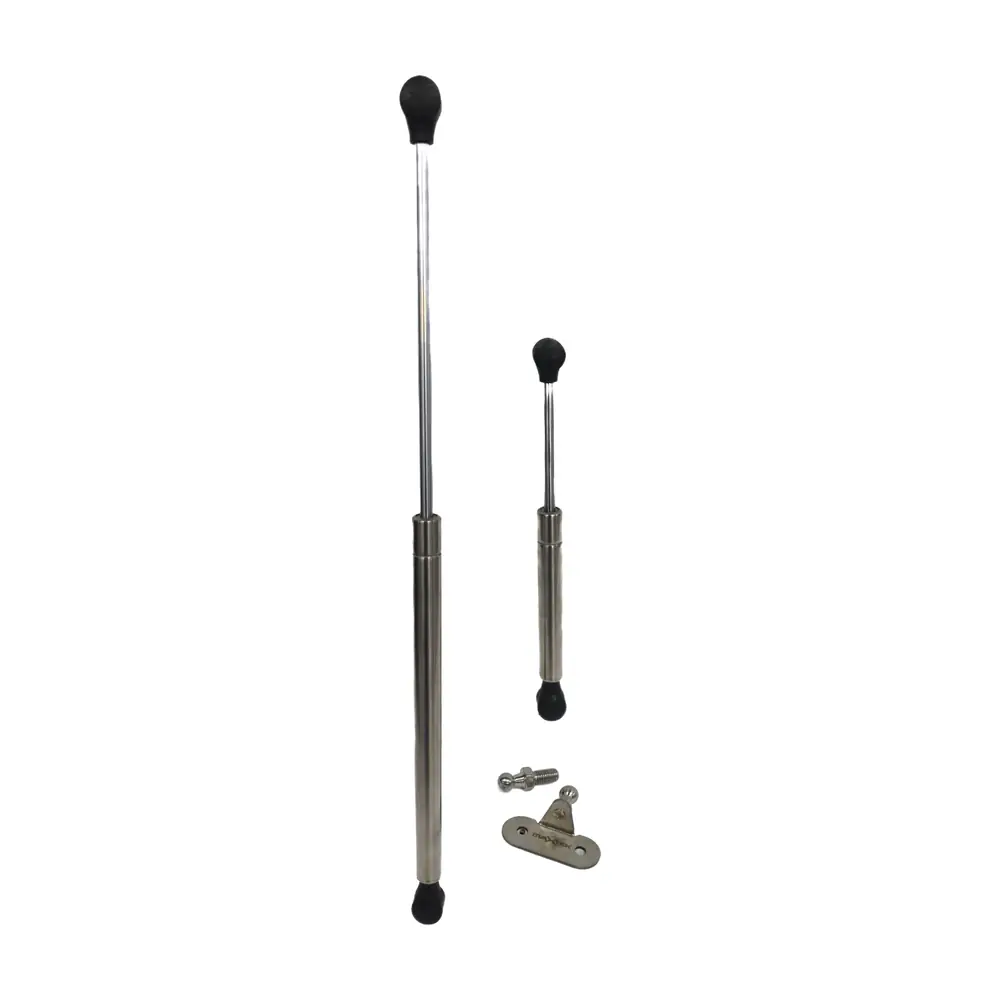

Stainless Gas Struts
Pressurised strut, brackets and studs are all manufactured from stainless steel in order to provide long life.
Telescopic hatch stay applied force:
255mm = 100N (Approx. 10kg)
385mm = 200N (Approx. 20kg)
485mm = 300N (Approx. 30kg)
Pressurised strut, brackets and studs are all manufactured from stainless steel in order to provide long life.
Ideal for supporting storage lockers, hatches and extensions so you don’t. Can be used on the exterior of your boat, motorhome, caravan or any hostile corrosive environment.
Telescopic hatch stay applied force:
255mm = 100N (Approx. 10kg)
385mm = 200N (Approx. 20kg)
485mm = 300N (Approx. 30kg)
Part Number – Dimensions:
304501P – 255mm length (open) with 90mm stroke
304505P – 385mm length (open) with 155mm stroke
304509P – 485mm length (open) with 200mm stoke
255mm Model
Dimension:
Length (oa): 255 – 6mm Rod
Stroke Length: 90mm
Tube length: 125 x 15mm (dia)
Applied Force: 100N
385mm Model
Dimensions:
Length (oa): 385 – 6mm Rod
Stroke length: 155
Tube length: 190 x 15mm (dia)
Applied Force: 200N
| Product Variations |
|
|---|
255mm Model
Dimension:
Length (oa): 255 – 6mm Rod
Stroke Length: 90mm
Tube length: 125 x 15mm (dia)
Applied Force: 100N
385mm Model
Dimensions:
Length (oa): 385 – 6mm Rod
Stroke length: 155
Tube length: 190 x 15mm (dia)
Applied Force: 200N
Tube length:
