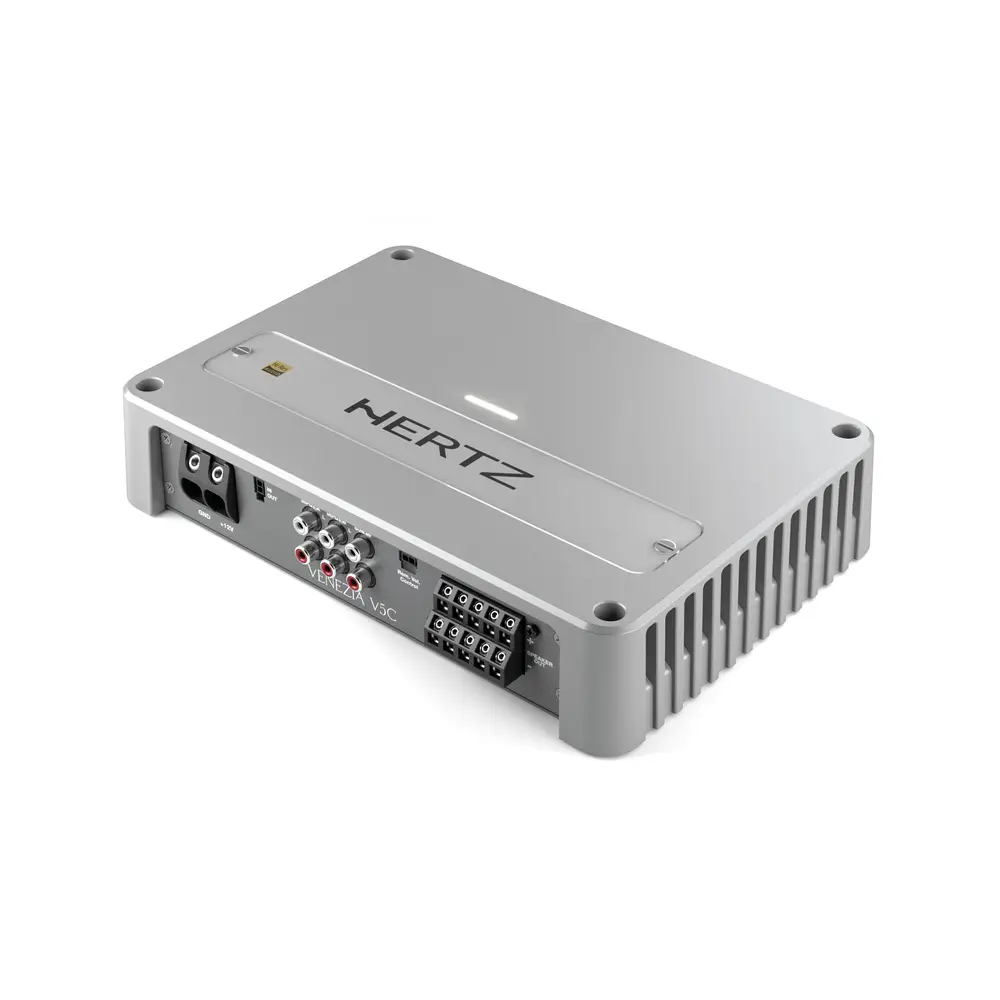

Hertz Audio Venezia V5C Amplifier

Description

Designed for the demanding marine environment, the Venezia V5C offers high-powered channels with bridging capability to meet every performance need. It is engineered and tested for durability under marine conditions, including UV exposure, salt-fog, vibrations, extreme temperatures, and thermal shock, and has earned IPX2 certification.

The Safe-Lock Input, Output, and Power connections simplify installation and boost long-term reliability, while a fanless convection cooling system is seamlessly integrated into its cast heat-sink chassis. Its balanced, fully-differential input circuitry effectively rejects electromagnetic interference for a cleaner signal.

Advanced preamp filter options provide a level of flexibility far exceeding typical mobile amplifiers. Finally, the Venezia V5C is safeguarded by short-circuit, overload, and thermal protections—all with automatic reset functionality for reliable, worry-free operation.

General Specs

Channels: 5 – 3

POWER SUPPLY

Power supply voltage: 9 ÷ 16 VDC

ldling current (power ON/OFF):1.7 A / 0.05 mA

Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 47 A

Remote In: 7 ÷ 15 VDC – 1 mA

AMPLIFIER STAGE

Distorsion – THD (100Hz @ 4Ω): <0,05%

Bandwidth:10 ÷ 42 kHz

S/N Ratlo (A welghted @ 1 V):100 dB

Damping factor: (100Hz @ 4Ω)>130

Pre-ln sensitivity: 0.2 ÷ 5 VRMS

Pre-ln impedance: 10 kΩ

Load impedance (MIN)
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω

Weight (kg/lb): 3.72 / 8.2

Adjustable Crossovers: yes
