Name: Hydraulic Inboard &amp; Sterndrive Steering - maXtek Complete Ki
SKU: ST250S
Price: 1008.69 USD
Availability: InStock

Description

Suits SternDrive -ALPHA, BRAVO 1, 2, 3, Volvo 280,290 Diesel

maXtek Marine Hydraulic Inboard Steering suitable for non- power assisted stern drive.

Complete

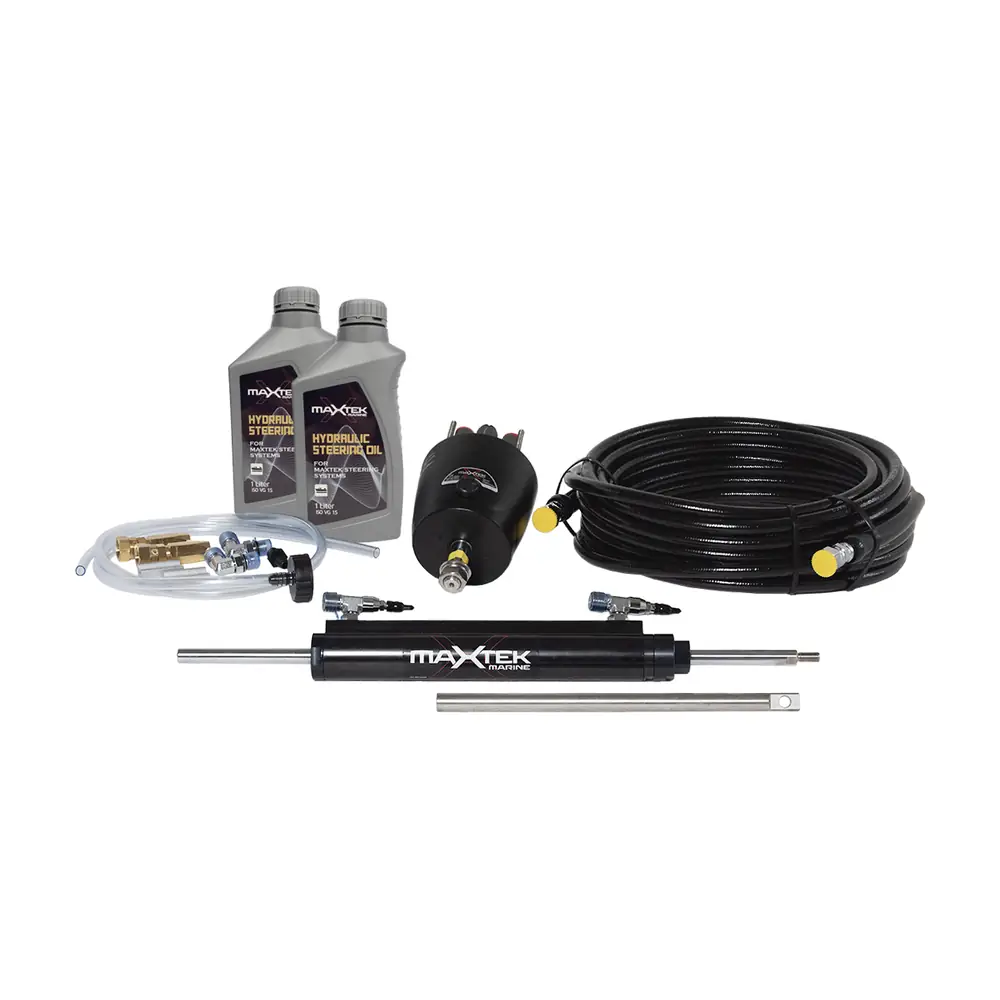

Contents of kit:

Front Mount 30cc Helm Pump – Heavy Duty

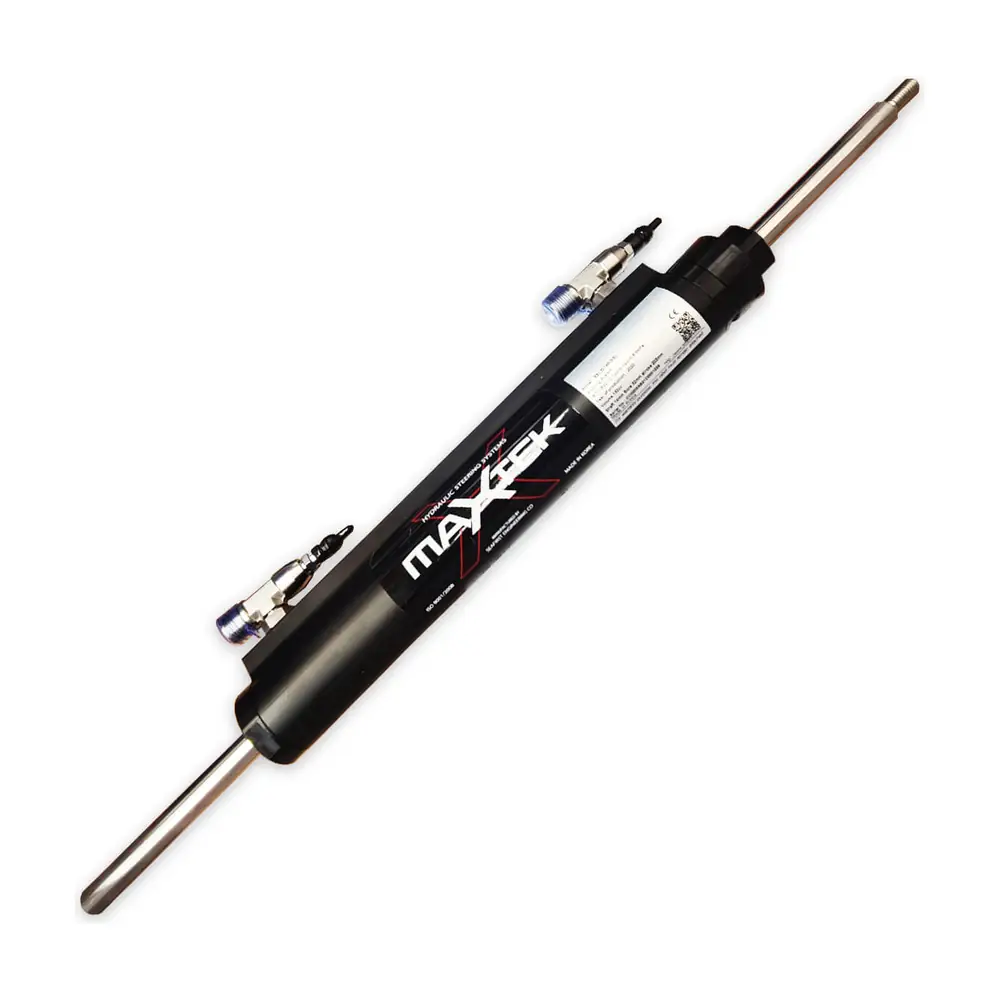

Balanced stern drive Hydraulic Cylinder

1 x 15m Hydraulic Hose With Crimped Fittings Each End (user cuts to required length)

Helm Pump Fittings & Hardware Kit

2L Hydraulic Oil

Funnel with oil supply tube & Bleed Tube

Exclusive to Absolute Marine

Features
100% "Marine Proven" components and materials with added robustness in both shaft and mounting dimensions for the toughest use in both commercial and recreational applications

* Cylinder rod made from high grade stainless and chrome plated
* 9.5mm Hydraulic hose lines – Made in Japan

Application Guide.

Suitable for the following sterndrives;
Maker – Model

MERCRUISER- Alpha, Bravo One, Bravo Two, and Bravo Three

VOLVO- 280, 290, Diesel

Specifications

Front Helm mount 30cc Pump, 3/8 hose x 15m, with reusable couplings, 3 X 1L SAE Oil

Wheel turn 4.4

Torque 64kgm

Stroke 203mm

Shaft 14mm with a bore of 32mm

Output force 455kg

Features

Available from all marine dealers and resellers nationwide

Accessories

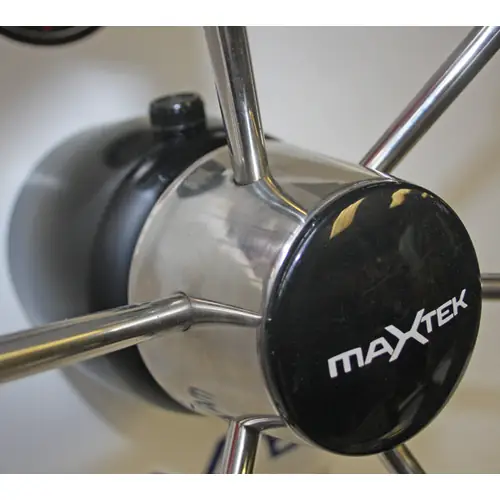

Steering wheel see product code
