Lenco LED Up/Down Switch Panel – Intergrated Controller

Description

12 Volt for Single Actuator Systems

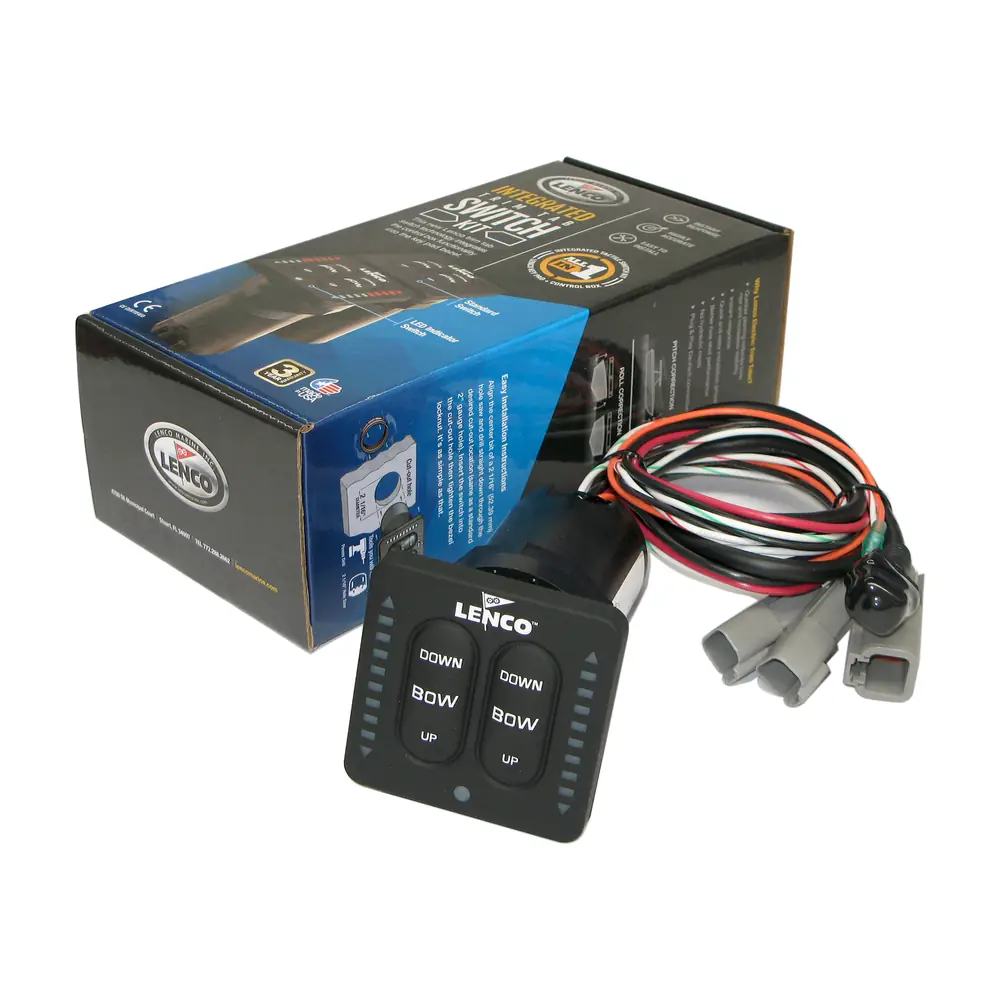

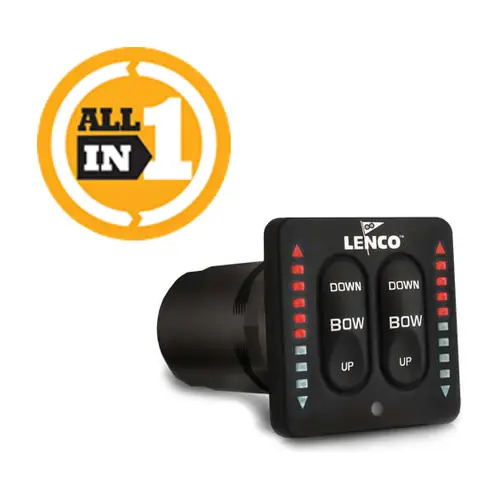

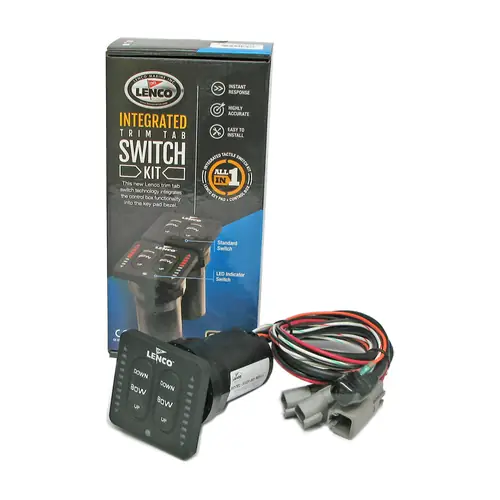

Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

Supplied with waterproof Deutsch connection plugs.



LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting

Features Include

Simple, quick, Plug & Play installation

Instant response

Built-in retractor

Low profile design

Self-contained key pad with waterproof Plug & Play Deutsch connectors

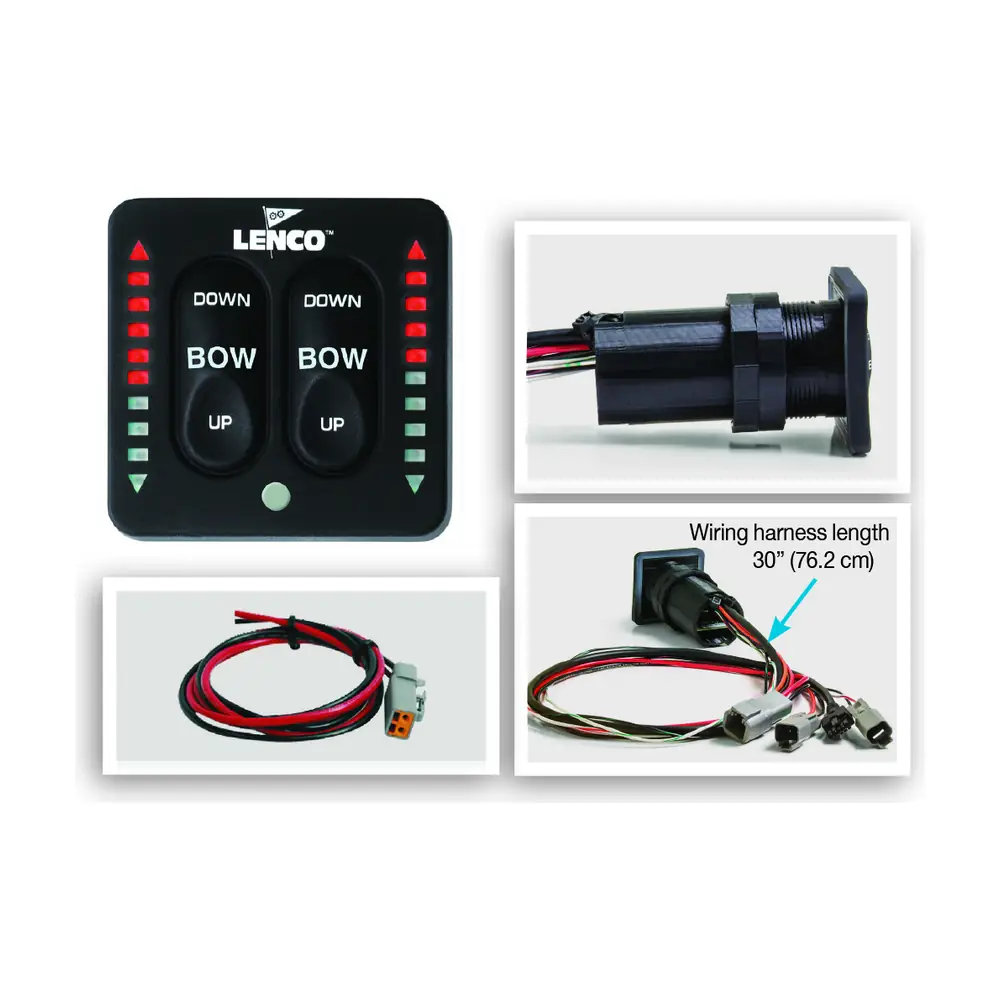

Wiring harness length 30″ (76.2 cm) from the back of the switch bezel

36″ power pigtail

2 1/16″ hole cut-out size, overall key pad size of 2.75″ x 2.75″

4.08″ clearance required from the back of the key pad’s mounting location

2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times

Photo Eye for optimum viewing in all light conditions

Backlit key pad for optimum viewing at night

Self-Check feature
