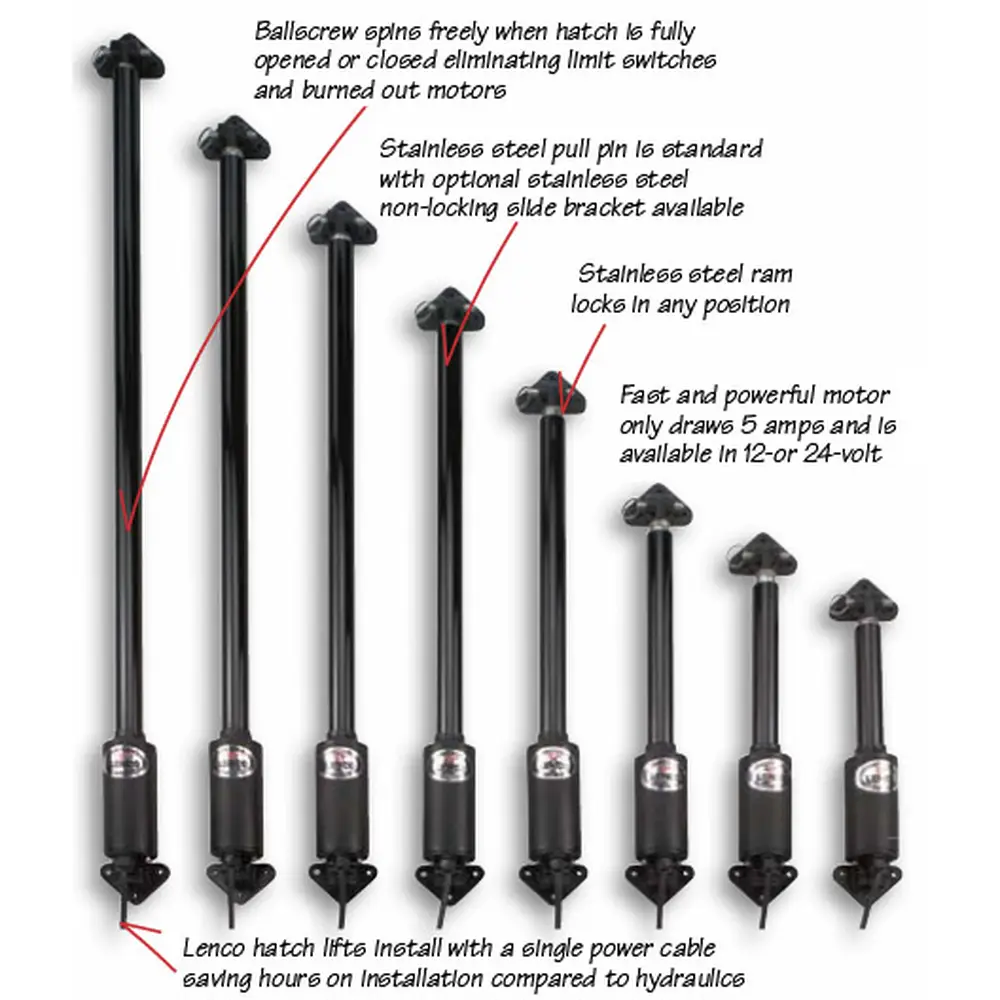

- Clear anodized aluminum tubing
- Available in 12- and 24-volt
- Complete with 2′ lead and Deutsch plug
- Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications
- Inline motor design delivers over 500 lbs. (226.79 Kg) of force
- Waterproof, made entirely of non corrosive materials
- Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
- Vandar mounting brackets with stainless steel pull pins
- Powdered metal gears for strength and precision
- Stainless steel ram locks in any position
- O-ring sealed at 100 psi
Lenco Linear Actuator – HL2000
$579.99 USD
In stock
In stock
Description
Dual installation can be achieved by a free wheeling feature at the end of stroke. Lenco hatch lifts are designed around a ball screw that spins freely when hatch is fully open or closed.
The hatch lift must be allowed to free spin at both ends of its stroke or it will continue to push or pull against any resistance potentially damaging the hatch lift or the hatch itself.
Dimensions:
Length: 1448 mm (oa) Extended
Length: 940mm (oa) retracted
Stroke: 508mm
Sizes available with 10mm through to 762mm stroke.
Specifications:
Voltage: 12 or 24v
Current: 10 amps at 12-volt and 5 amps at 24-volt
