Lowrance StructureScan HD

Description

Working with Lowrance HDS® Gen2 and HDS® multifunction displays – the new StructureScan® HD sonar imaging system delivers greater resolution and wider range for enhanced underwater images.

Connectivity

Easily networks via Ethernet with up to three HDS displays for sonar imaging and waypoint sharing.
Features the dedicated transducer array with the Lowrance innovation of down-looking imaging for the clearest, truest picture possible.
Plug-and-play performance processing module delivers the most horsepower in fishfinding imaging.
Works separately and in tandem with the built-in Broadband Sounder™ of HDS displays and existing transducers.
Offers the exclusive TrackBack™ feature for simultaneous scroll-back of sonar and chartplotter “history” to set waypoints, and share them across the network
Multiple choices in imaging transducer mounting locations.

Fully-waterproof, plug-and-play processor module
The StructureScan® HD fully-waterproof module connects to a 10-17 VDC power supply, and via simple plug-and-play Ethernet cables, networks with up to three HDS displays for sonar imaging viewing with independent control. Or, easily network with other HDS add-on options, such as Lowrance Broadband Radar™ or LWX-1 Sirius® satellite weather and radio antenna.

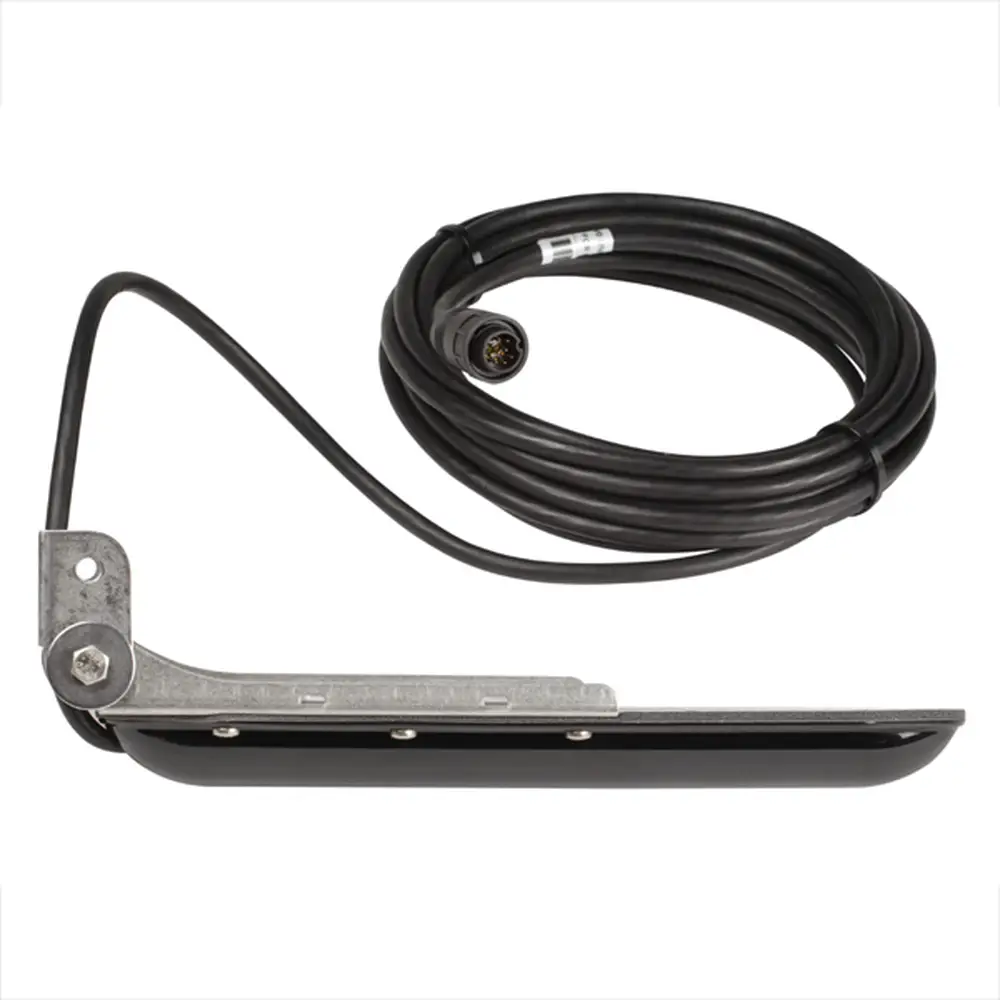

New, enhanced imaging transducer.
Low profile, low-drag design with built-in water temp sensor, made for multiple mounting locations – transom, transom step or jackplate. For transoms, there’s a stainless-steel mounting bracket with a kick-up feature for water hazard strikes. Damage the bracket, and you simply replace it (not the entire transducer) inexpensively.

StructureScan® HD thru-hull transducer options include two designs in plastic or bronze — including a dual thru-hull transducer kit for boats with high deadrise hulls.

• Crisp side-viewing detail takes you farther – with up to 600 ft/183 m of higher-resolution side-to-side coverage.
• Produces a higher level of definition straight down, with exclusive DownScan Imaging™ technology.
• The improved range a huge advancement for StructureMap™ , because now you spend half the time creating a map or searching for structure.
• Three, dedicated transducer signals for best-in-class views — left, right and directly beneath your boat
• Share StructureScan® HD images with up to three HDS displays
