Name: MasterVolt Mass Combi Combi 12/2200-100 (230 V)
SKU: MV-36012200
Price: 1815.15 USD
Availability: InStock

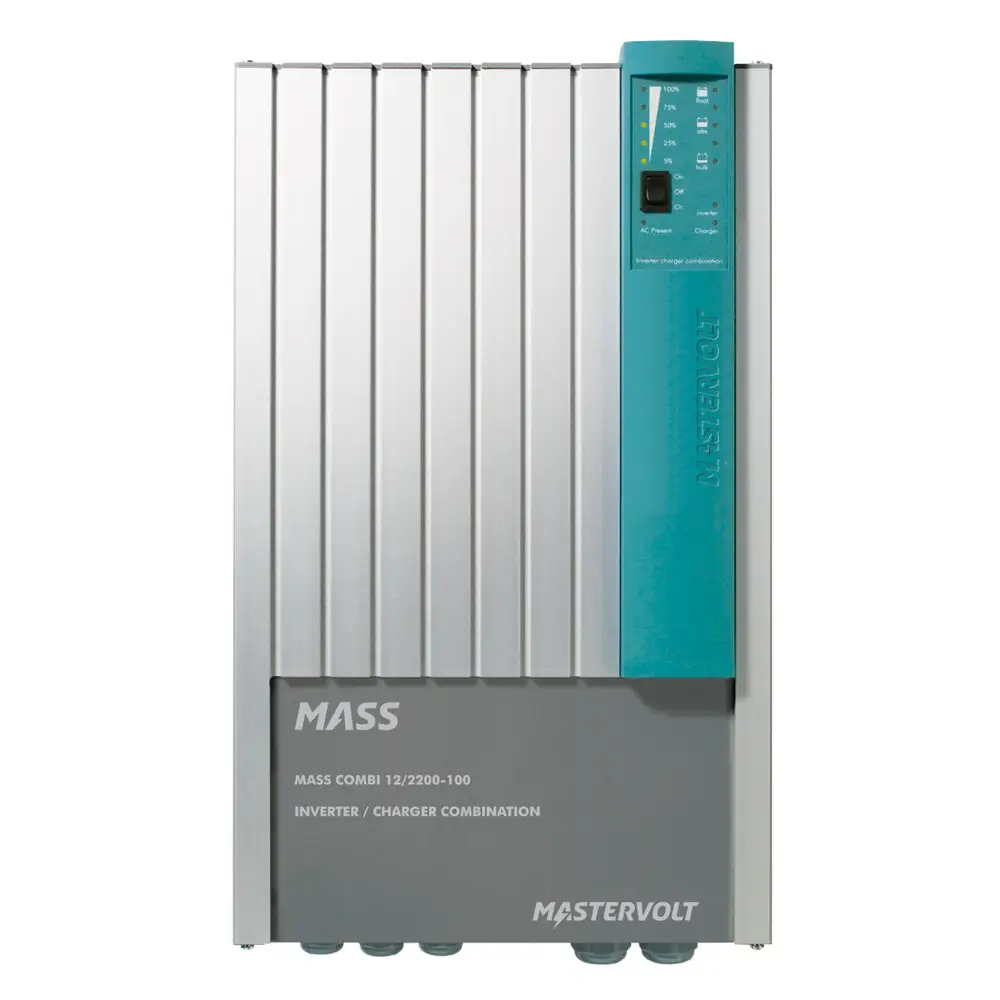

MasterVolt Mass Combi Combi 12/2200-100 (230 V)

The Mastervolt Mass Combi combines the best of both worlds, with an advanced battery charger and silent inverter rolled into one compact device.

$1,815.15 USD

In stock

Product Code: MV-36012200

Categories: Battery Chargers, Inverters

Description

The powerful 3-step+ battery charger guarantees maximum battery life and can simultaneously charge two battery banks. A built-in distribution system switches between grid and inverter power, while two separate AC outputs allow users to connect critical loads to a preferred group.

Benefits of the Mass Combi:

Compact, lightweight and no hum thanks to HF technology
High yield and more power from your batteries
Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life
Charges two individual battery banks simultaneously
Quiet, powerful inverter with 200 % peak power
Power Assist: extra power assistance from the batteries in case of limited grid or generator power (prevents blown fuses)
Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters
Dual AC outputs to separate critical equipment from heavy loads
Higher yields possible via parallel switching (only for 2200 and 2600 W models)
Professional connections ensure fast installation and operational security

Compact, lightweight and no hum thanks to HF technology

High yield and more power from your batteries

Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life

Charges two individual battery banks simultaneously

Quiet, powerful inverter with 200 % peak power

Power Assist: extra power assistance from the batteries in case of limited grid or generator power (prevents blown fuses)

Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters

Dual AC outputs to separate critical equipment from heavy loads

Higher yields possible via parallel switching (only for 2200 and 2600 W models)

Professional connections ensure fast installation and operational security
t

Combi deal with remote control (Remote version)
In addition, Mastervolt can provide all Mass Combi models in a Remote version so that the AC and DC power status can be monitored remotely. The relevant product code includes the Mass Combi model of your choice, plus an ICC and an APC remote control panel.

Specifications

Nominal DC voltage12 V (10-15 V)
Output voltage230 V (± 5 %), adjustable 180-250 V
Output frequency50/60 Hz (± 0.05 %), configurable
Output waveformtrue sine, Thd < 2.5 % under standard conditions
Continuous power at 25 °C / 77 °F, cos phi 12150 W
Max. peak load4000 W
Max. efficiency≥ 90 %
Max. ripple on DC (battery at full load)< 5 %
No-load power consumption on DC (ON/inverter OFF/OFF/energy saving)9 W / 0.1 W / 0 W / 0.5 W
Parallel configurationyes, up to 2 units
3-Phase configuration: no
Synchronise with mains/generator: yes

Specifications battery charger
Input voltage range180-265 V
Max. input current7.2 A
Max. charge current at 25 °C / 77 °F100 A at 14,25 V, adjustable
Secondary charger output voltage12 V
Secondary charger output current5 A
No-load power consumption on AC< 15 W
Battery temperature sensoryes, included
Battery voltage senseautomatic compensation

Specifications transfer system
AC input 150 A (25 A switched, to short break output)
AC output 125 A (short break output)
AC output 250 A (power output)
AC input fuseyes, resettable
Transfer speedhalf seamless (25 ms max., 10 ms typical)
Transfer voltage range180-265 V
Transfer frequency range45-65 Hz

General specifications
Display/read-outLED display
Dimensions, hxwxd 496 x 318 x 156 mm

Weight: 11 kg

Technical specifications
Charge characteristic3-step+ (IUoUo, fully automatic), Equalize
Battery typesAGM/gel/MLI/flooded/spiral/traction
Recommended battery capacity~ 200-600 Ah (based on gel batteries, may differ for other types)
Ground relayyes, configurable
Temperature range (ambient temp.)-25 °C to 60 °C, derating > 25 °C
-13 °F to 140 °F
Protection degreeIP23 (vertical mounting)
Safety classIEC protection class I
Humidity protectionconformal coating, max. 95 % relative humidity, non condensing
Protectionsover temperature, over load, short circuit, high/low battery voltage
Coolingmaintenance-free vario fans

Power Assistyes

MasterBus compatibleyes, in combination with a MasterBus Combi Interface
