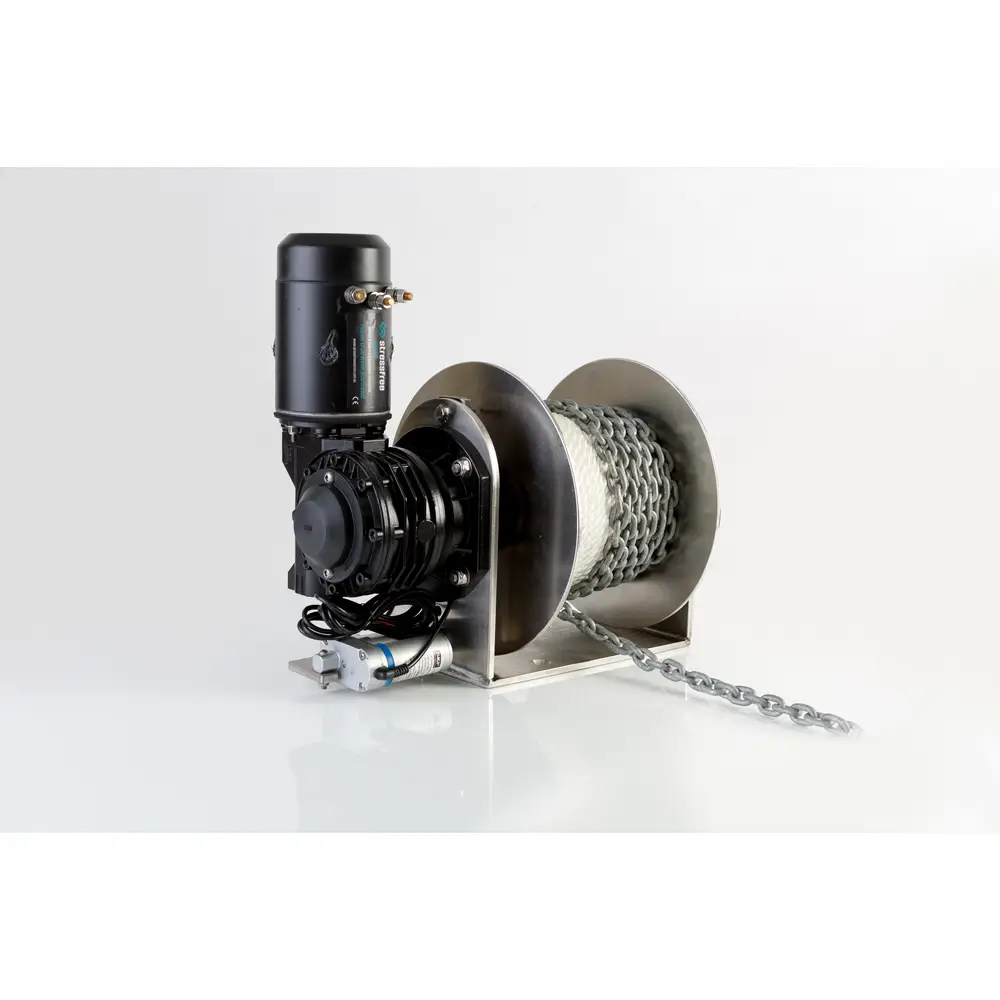

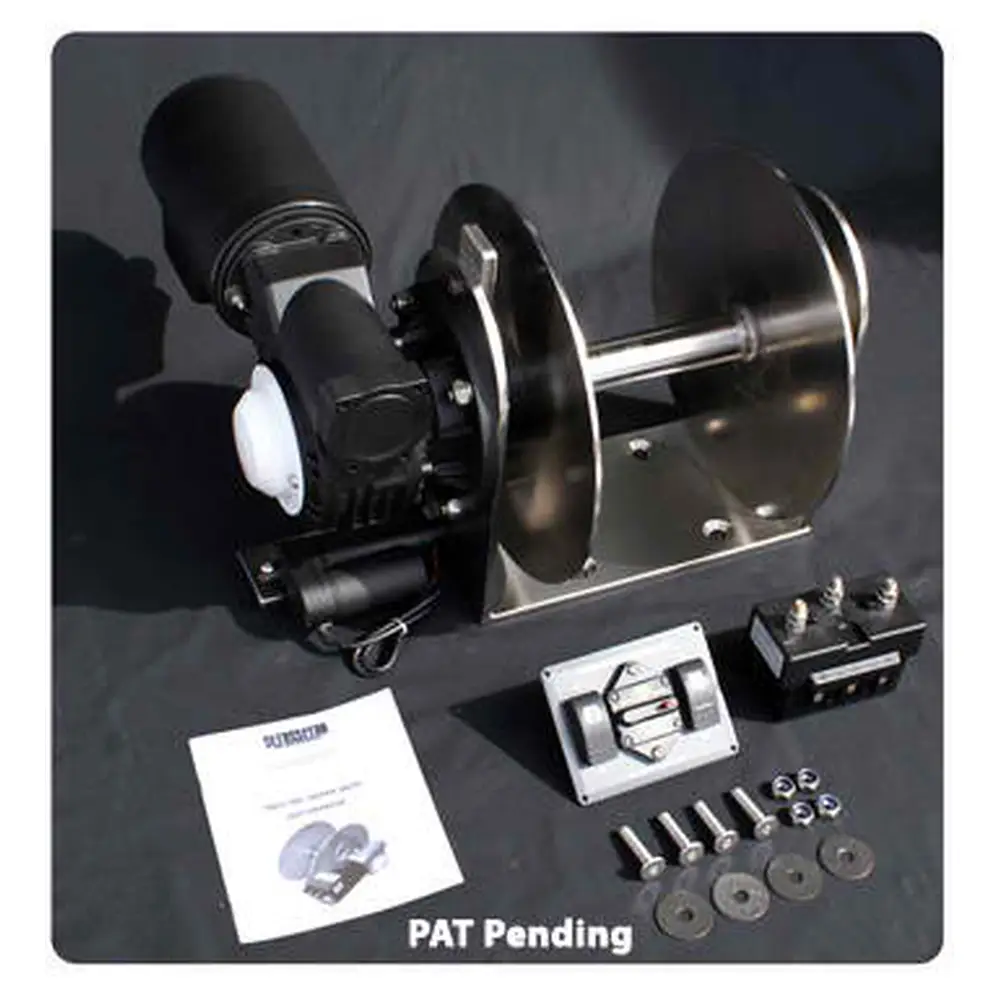

Maxi Free Fall

Description

Stress free anchor retrieval from this compact winch.

• Suitable for boats 7 metres plus
• 1400 watt motor
• All 316 marine grade stainless steel
• Baseplate 8mm marine grade stainless steel in three parts and welded
• Diameter of the drum 300mm
• Maximum lifting capacity 275 kilos (when the drum diameter is small)
• Holding capacity at anchor is 3600 kilos
• Rated to 135 amps
• Normal running the Stress Free will use 25 – 30 amps and under load up to 55 amps
• Recommend dual batteries with the battery switch on BOTH
• Can be deck mounted

Drum capacity
• 85 metres of 10mm nylon plus 8 metres of 8mm shortlink chain OR
• 100 metres of 8mm double braid eye spliced to 5 metres of 10mm nylon plus 8 metres of 8mm shortlink chain

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations. Another 8 adjustment angles are available at 30º and 45º from each of the basic 4 mounting holes.
NB: The amount of chain can be lengthened or shortened to meet individual needs. In these situations the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate.
