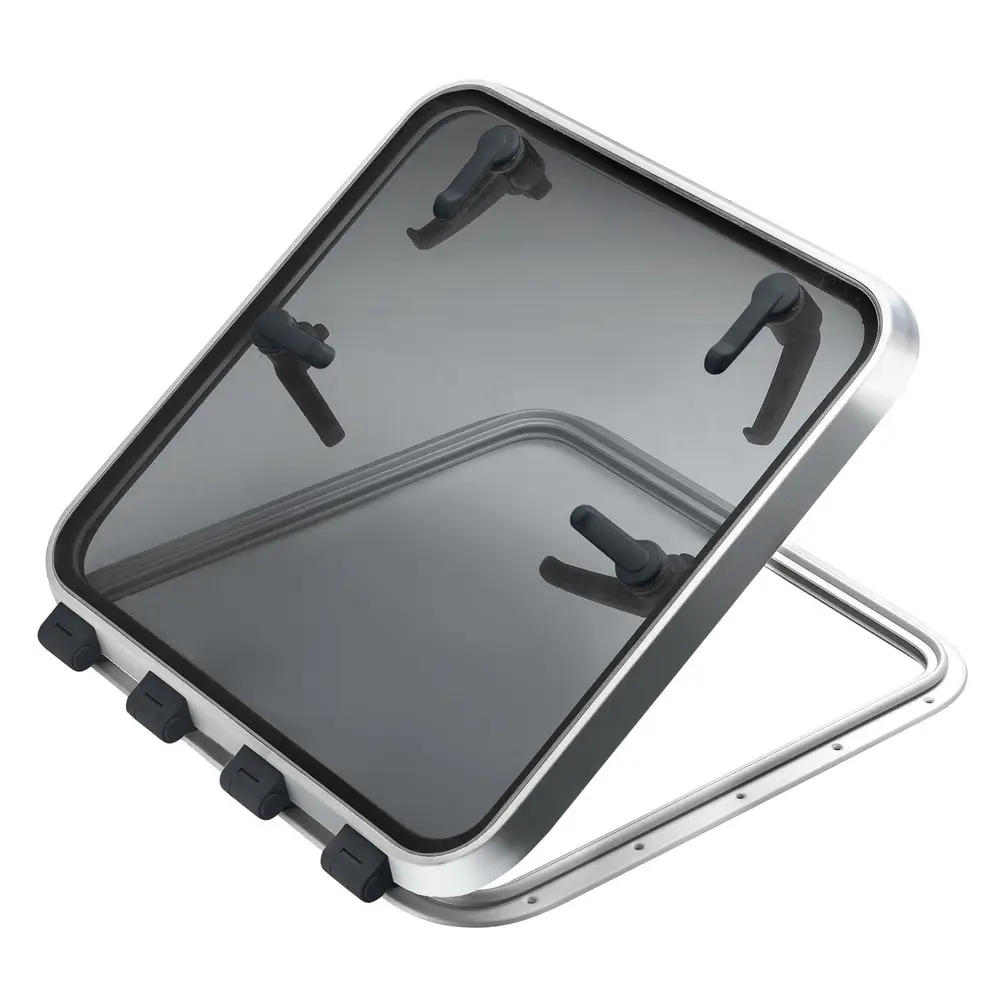

Maxwell Offshore Deck Hatch 559mm x 559mm

Description

• Overall Dimensions 559 x 559 mm
• Ocean use
• Fully waterproof
• Deck or hull mount
• Open through 180°

MAGNUS is a completely new range of extra heavy duty hatches. They are CE classified AI. They are rated and designed for ocean use and can be fitted in any part of the hull or deck. Application on habitable multihulls as a means of escape in the inverted position.
These hatches are provided with friction hinges, which will keep the hatch open in any position, without the need for stays. The hatch can be opened through 180° and there are virtually no obstructions in the hatch opening. The MAGNUS range can be opened from inside or outside the boat. They can also be left locked; either completely watertight or in a ventilation position.

t
• Overall Dimensions 559 x 559 mm

t

• Ocean use

t

• Fully waterproof

t

• Deck or hull mount

t

• Open through 180°
  t

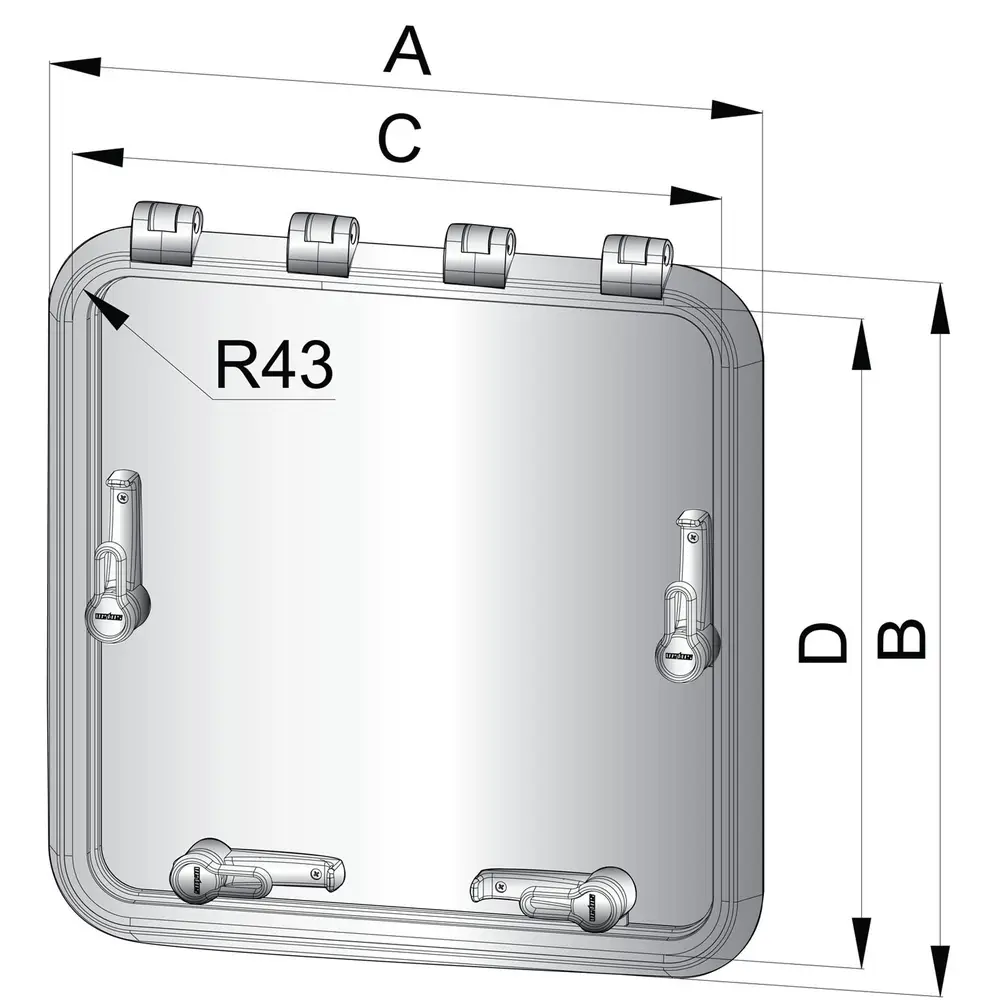

Cut-Out Size:(C & D) 507 x 507 mm

Overall Size:(A & B) 563 x 563 mm

Dimensions:
Corner Radius: 43 mm

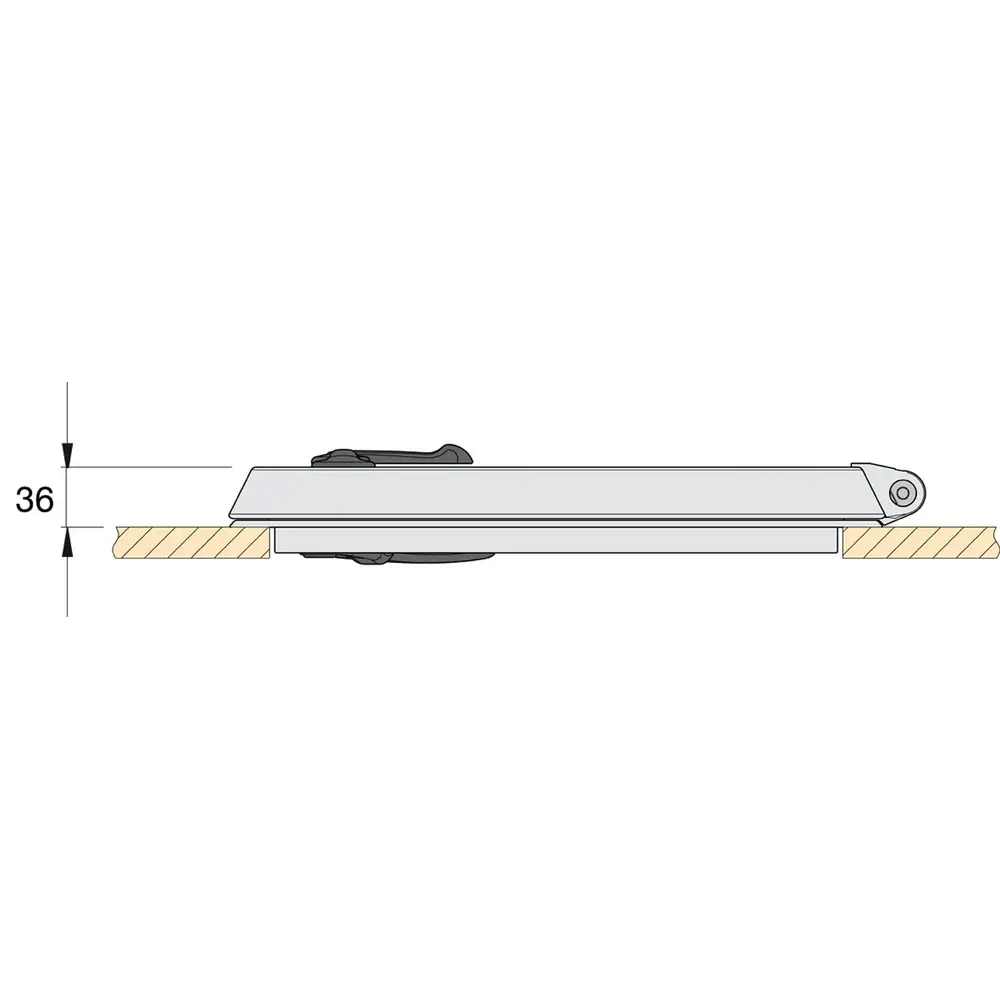

Height: 36 mm
Vetus Hatch Materials Finish:Hand Polished Satin
Lid Type:10mm “Dark Smoke” Acrylic
Support type:Friction Hinge
