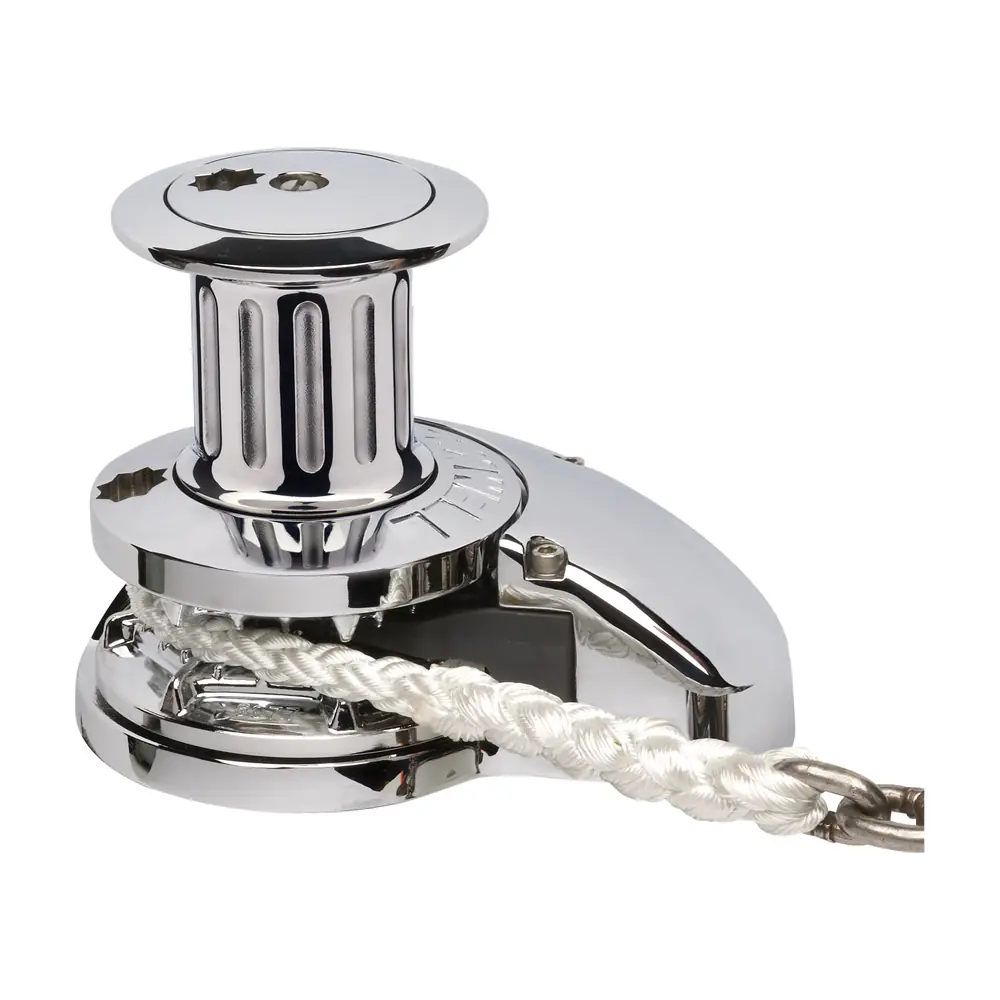

Maxwell RC10-10/8 with Capstan

Description

Suitable for DIN 8mm chain and rope combinations

Suitable for vessesl up to 15.5m depending on vessel weight.

• The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10 is a second-generation rope/chain windlass and is a favourite choice for cruising yachts, launches and pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.

• The RC10 comes in two variants, the RC10-8 and the RC10-10 and is capable of handling 8-10mm (5/16”–3/8″) chain and 14–16mm (9/16”–5/8″) 8-brait (plait) rope.

• The patented Wave Design™ rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.

• Are you running all chain? No problem. The RC10 works just as effectively with all-chain rode.

• Gearbox can be removed by hand and without tools for easy maintenance and inspection.

• Full disassembly capability of the topworks utilizing only the handle provided and an Allen key.

• Manual override and ‘Free Fall’, using the emergency crank/clutch handle provided.

• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.

• Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gear box and dual direction solenoid.

• The unique spacer tube design allows for installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal orientation in virtually all installation situations.
