Ocean Bilge, Deck, Refueling Brass Pump 12v – 35L/min

Description

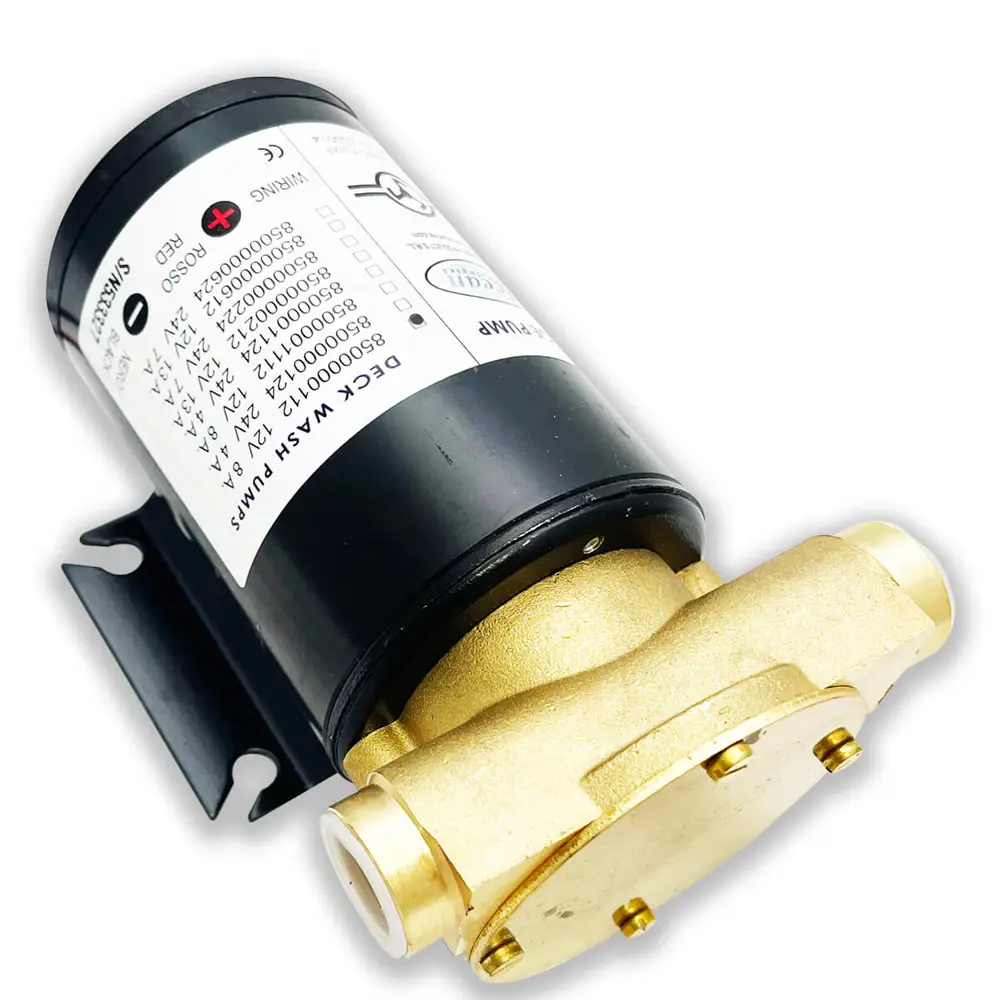

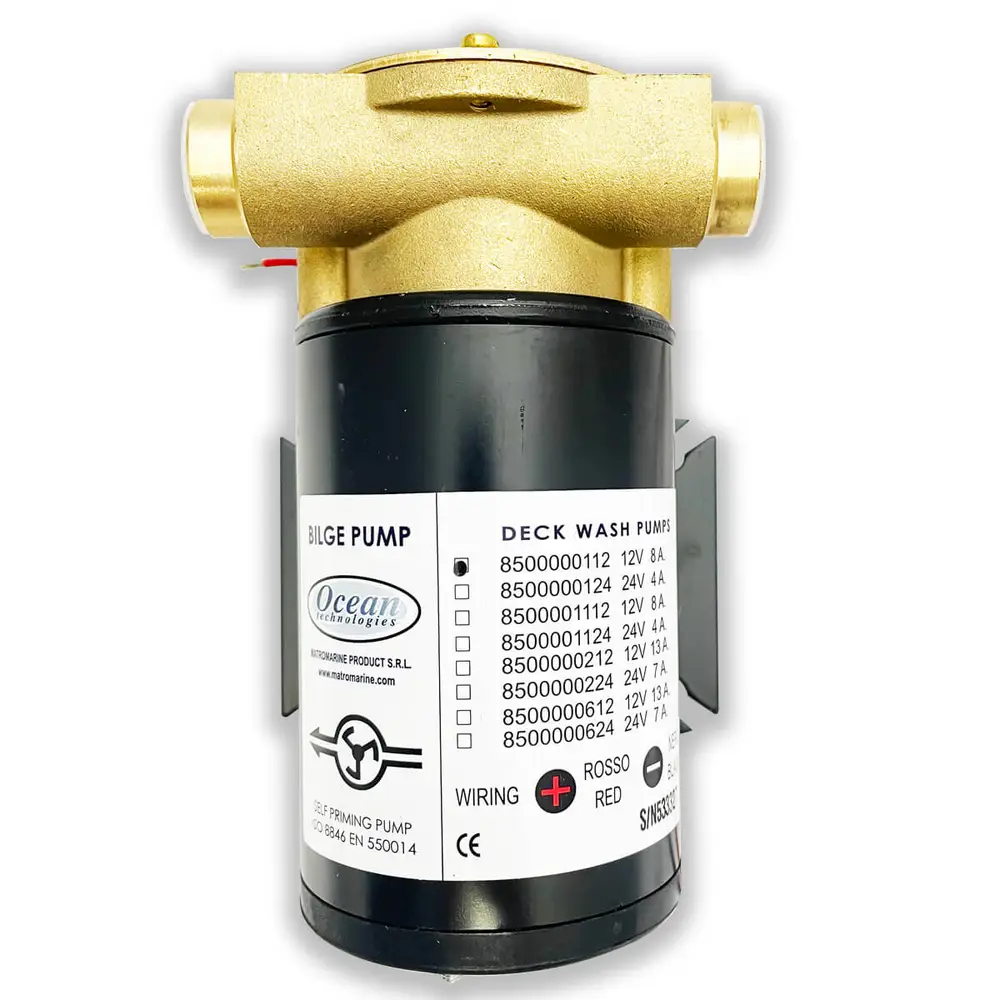

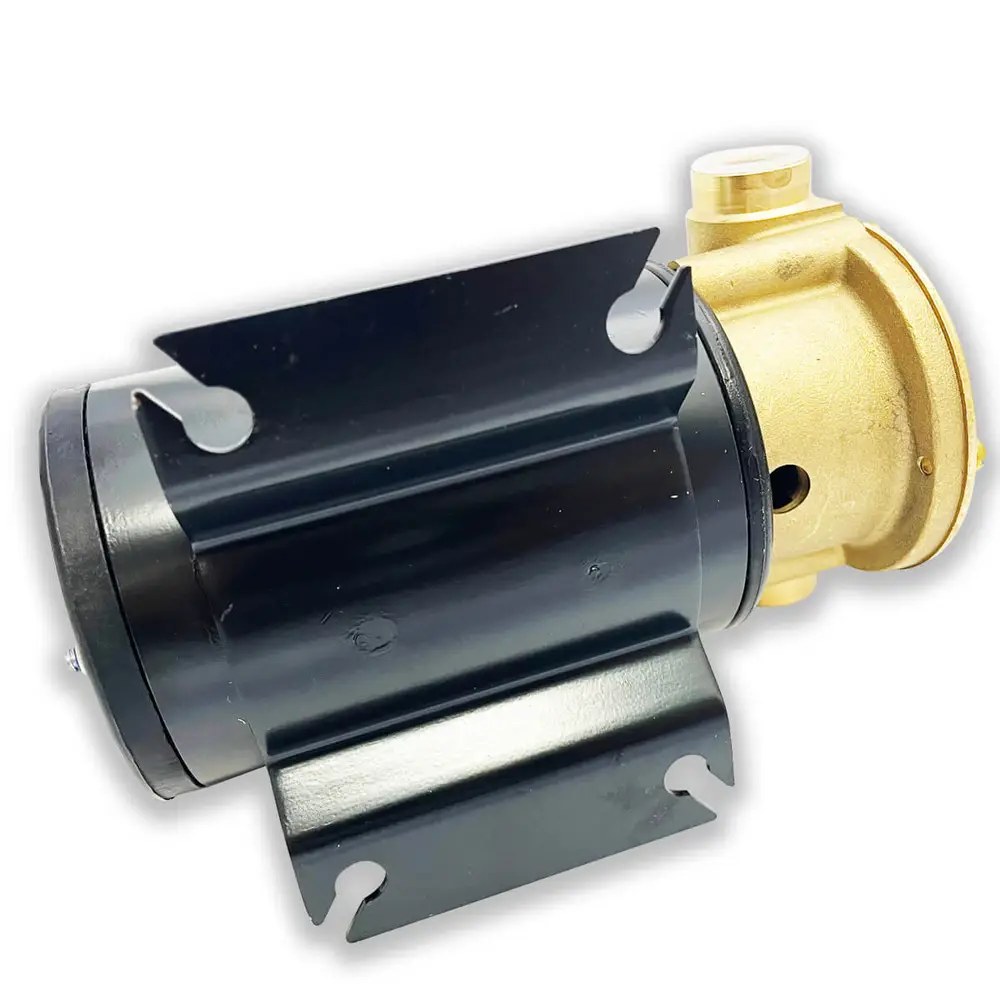

The Ocean Tech Deck pump features a bronze housing and self-priming design along with a small dimensions for transferring of liquids of various nature.

Non corrosive construction with a brass pump body and stainless steel shaft. Super nitrile impeller and PTFE mechanical seal.

Ideal for bilge pumping, deckwash, water circulation, oil and diesel refuelling.

• Self-priming up to 3 m vertical lift
• Light duty, 50 minute rated Diesel fuel transfer pump
• Unaffected by extreme temperature
• Suitable for use from -30°C to +40°C
• Maximum recommended total head 5m
• Reversible to both fill and empty tanks
• Simple design means fewer wearing part

Compatible with;
Jabsco # 23680-4003
Johnson Pump # F38B-19

t
• Self-priming up to 3 m vertical lift

t

• Light duty, 50 minute rated Diesel fuel transfer pump

t

• Unaffected by extreme temperature

t

• Suitable for use from -30°C to +40°C

t

• Maximum recommended total head 5m

t

• Reversible to both fill and empty tanks

t

• Simple design means fewer wearing part
  t

Specifications:
Voltage: 12v
Current: 8 Amps
Flow: 30 l/min
Flow @2metre Head: 23 l/min
Port Connection: Brass 19mm 1/2″ BSP female threaded socket

Dimensions:
160 x 120 x 90 (mm)

Certification:
ISO 8846 MARINE (Ignition protection)
European Standard; EN 55014

Caution:
Not suitable for parrafin or other thin petroleum products
