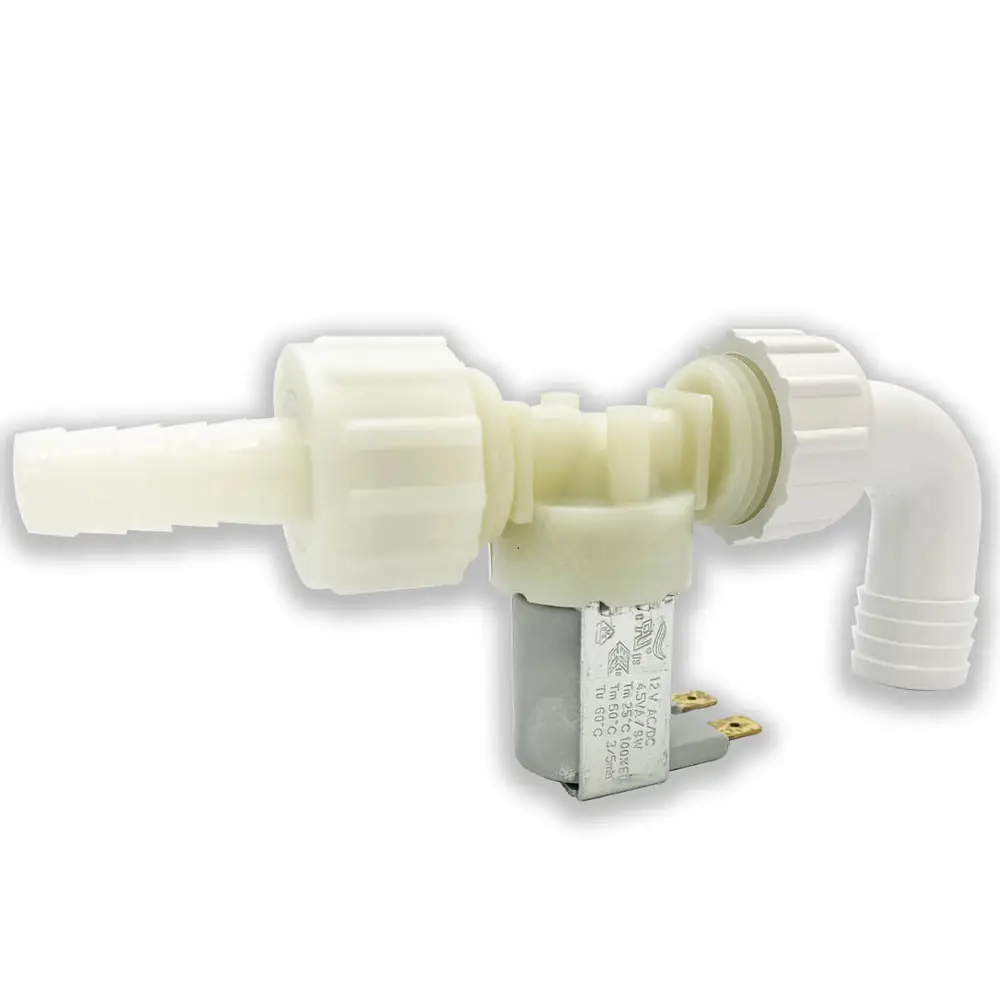

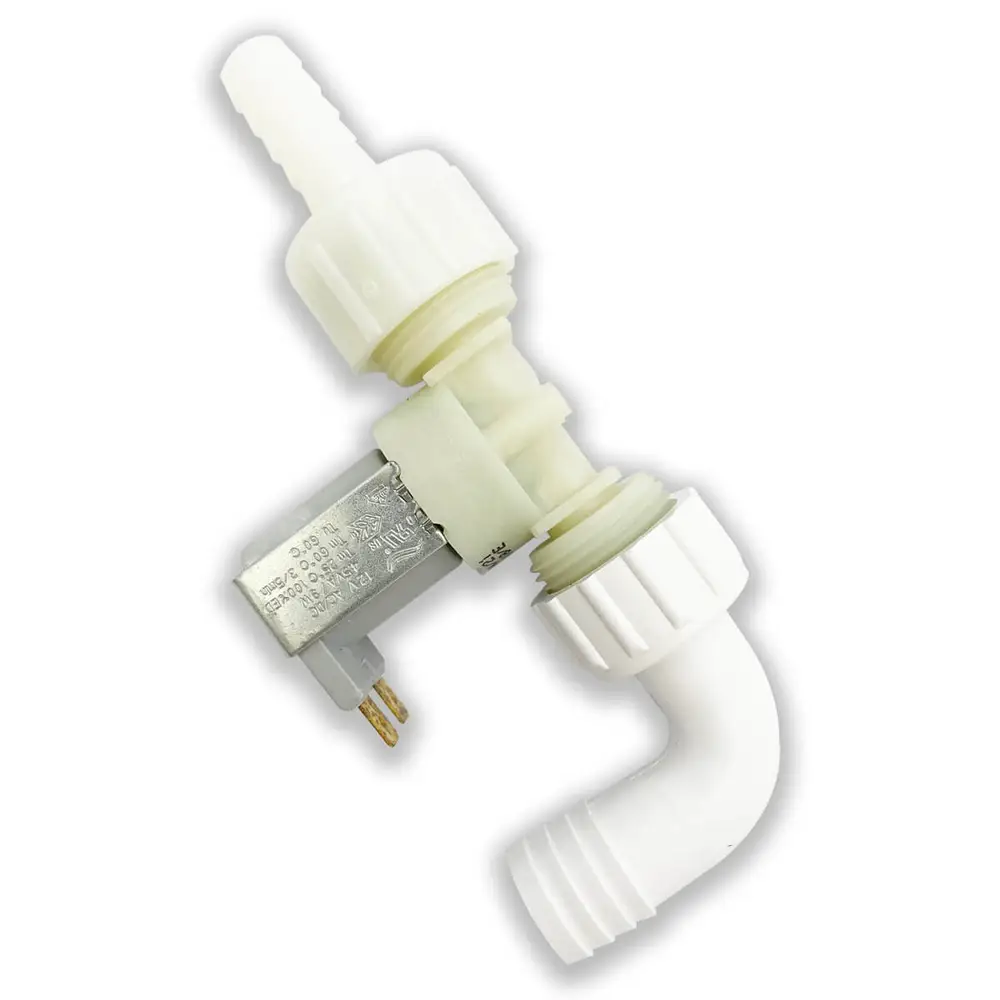

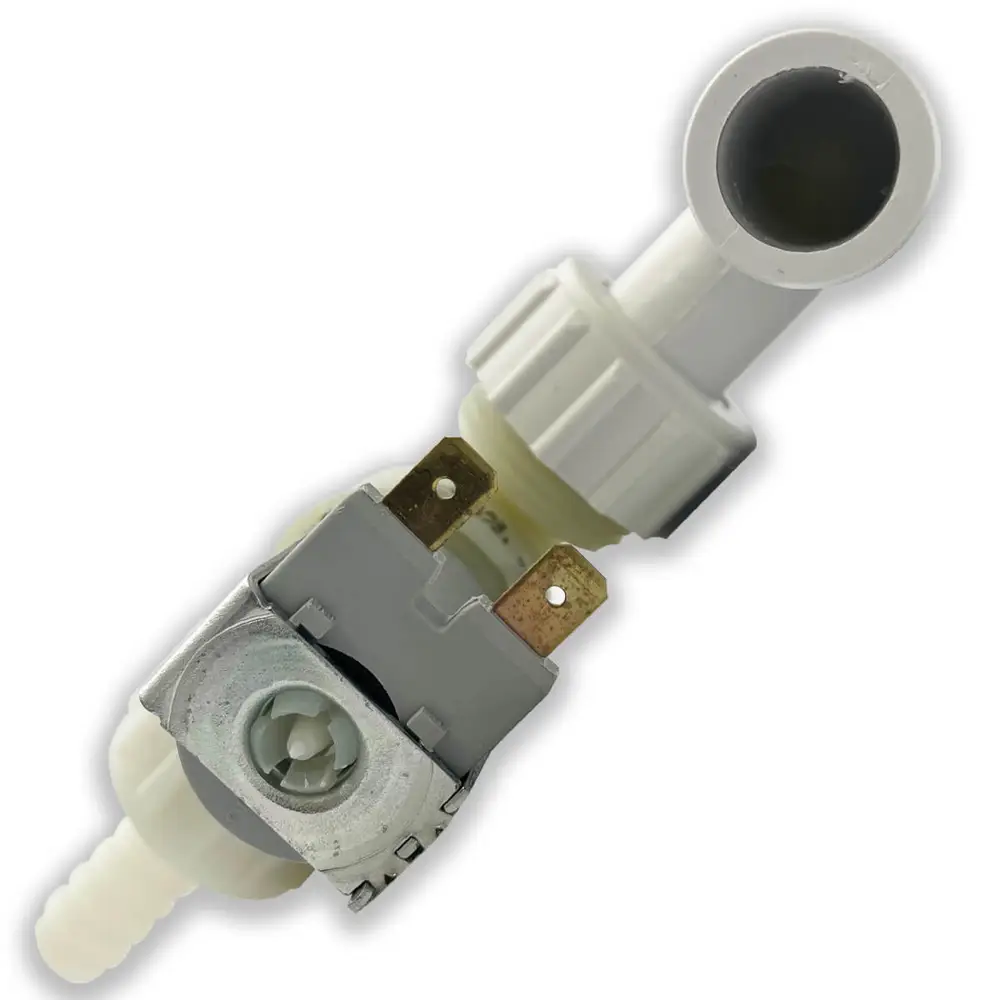

Ocean Tech 12v Eco Water Solenoid

Description

Diaphragm-type valve that requires minimum pressure (3 psi) to operate. It is intended to be used in pressurised systems, not in gravity feed systems.

Normally open valves are “OPEN” in their de-energized state (i.e. when no electrical power is applied, the valve is open). Once the coil is energized, the valve closes.

VALVE COIL / ELECTRICAL
The valve coil is nylon encapsulated and is water resistant (but may not be submerged).

Voltage: 12v AC/DC
Current: 4.5A
Max temperature: 60C

Port connections:
25mm (1”) Male thread or
20mm (3/4”) hose tail outlet
13mm (1/2”) hose tail inlet
