Name: Plastimo Offshore 115 Compass – Conical Card, Survey approve
SKU: 60991
Price: 297.56 USD
Availability: InStock

Plastimo Offshore 115 Compass – Conical Card, Survey approve

$297.56 USD

Low stock

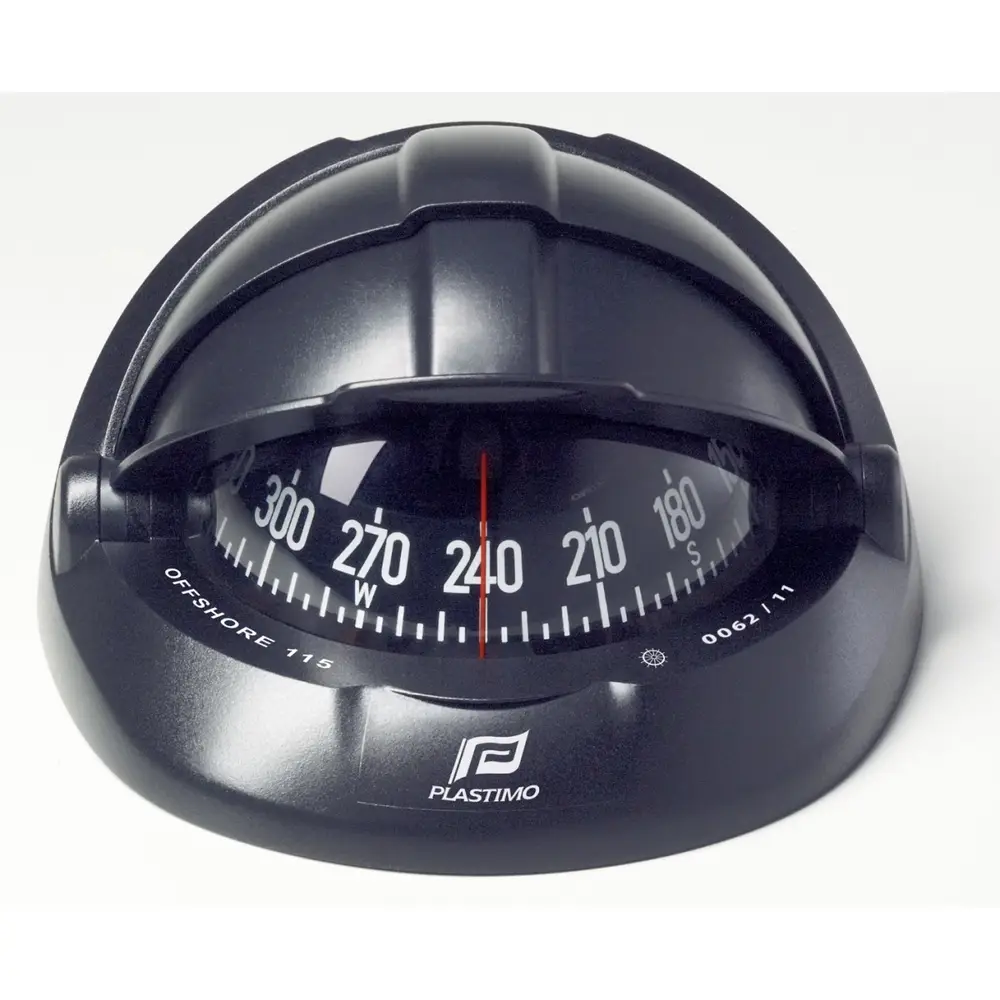

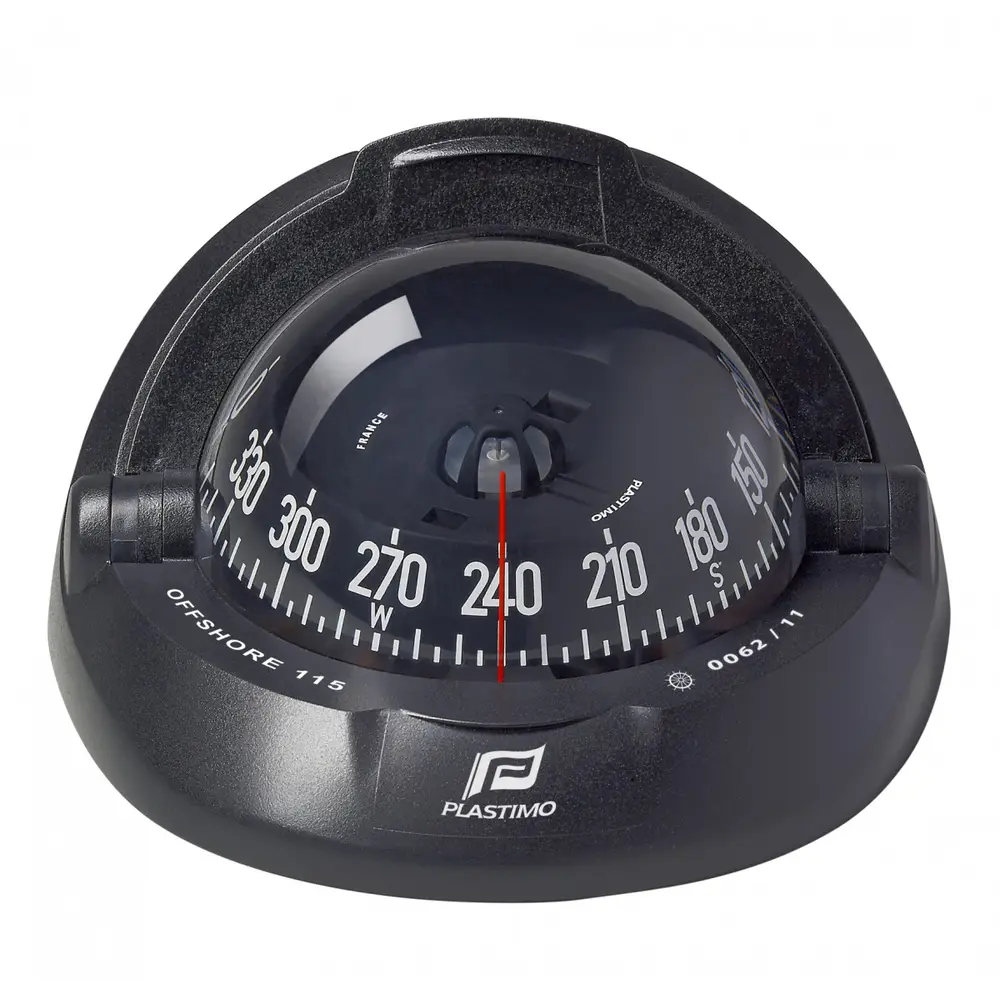

Plastimo Offshore 115 Compass Black Body – Conical Card

Suitable for vessels under survey

SOLAS approved

Binnacle available as an option (61000)

Low stock

Product Code: 60991

Categories: Compass, Compasses

Specifications

	OFFSHORE 115
Boat size	Powerboats of 8 to 12 metres (26 to 40 ft).
Compass card	Conical or flat card graduated every 5°, apparent Ø 101 mm. Heading numerals every 30°.

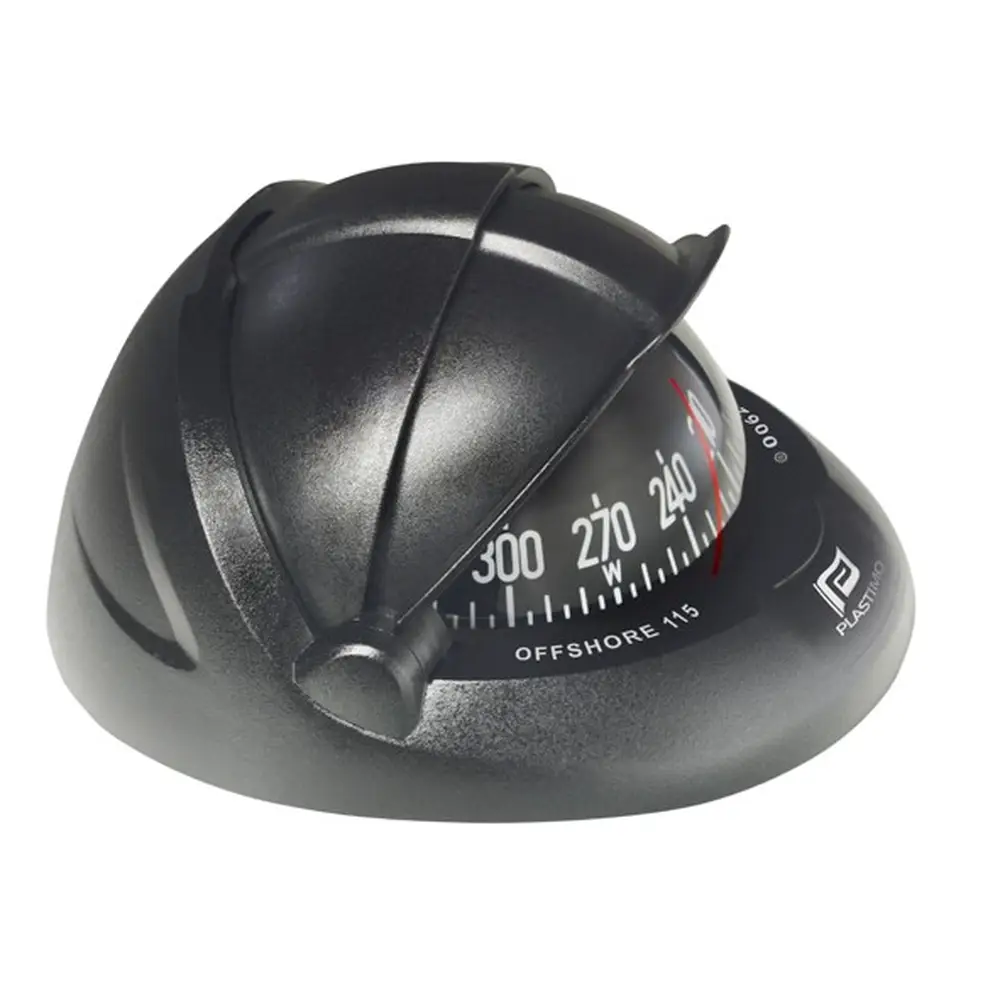

Hood	Articulated protective hood : built-in sliding cover, composed of 3 telescopic parts, with cushioned closing.
Mounting	Flushmount : on a horizontal surface. Binnacle available as option.
Resistance to vibrations and hull pounding	Magnetic cell equipped with the unique “Vibration Absorber” system : minimal contact between the pivot and the sapphire cup (tested by independent laboratory).
Lubber line	1 lubber line.
Compensation	Supplied as standard.

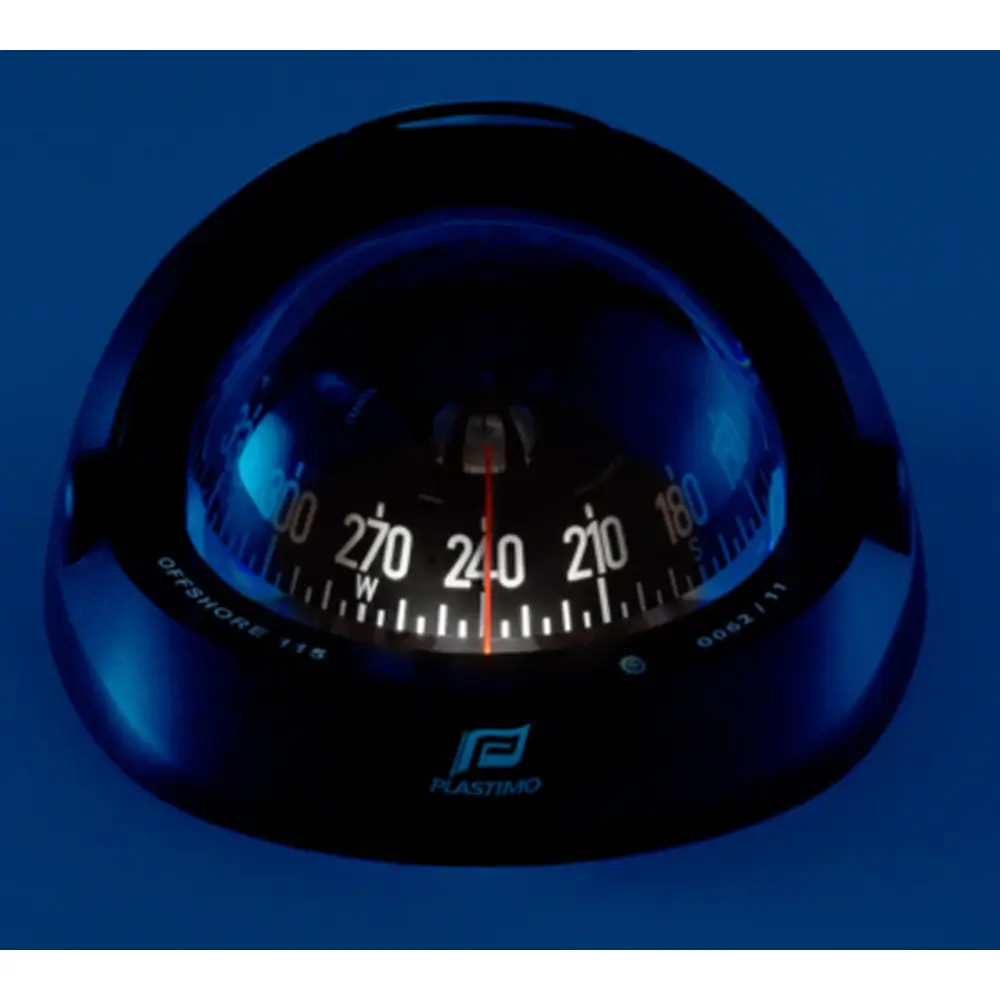

Lighting	12-24 V LED, included.
Supplied with	Screws, drilling template.
Approval/homologation	SOLAS-MED 96/98.

Features

• One-piece moulded flange and bowl.
• Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.

Plastimo Offshore 115 Compass – Conical Card, Survey approve
