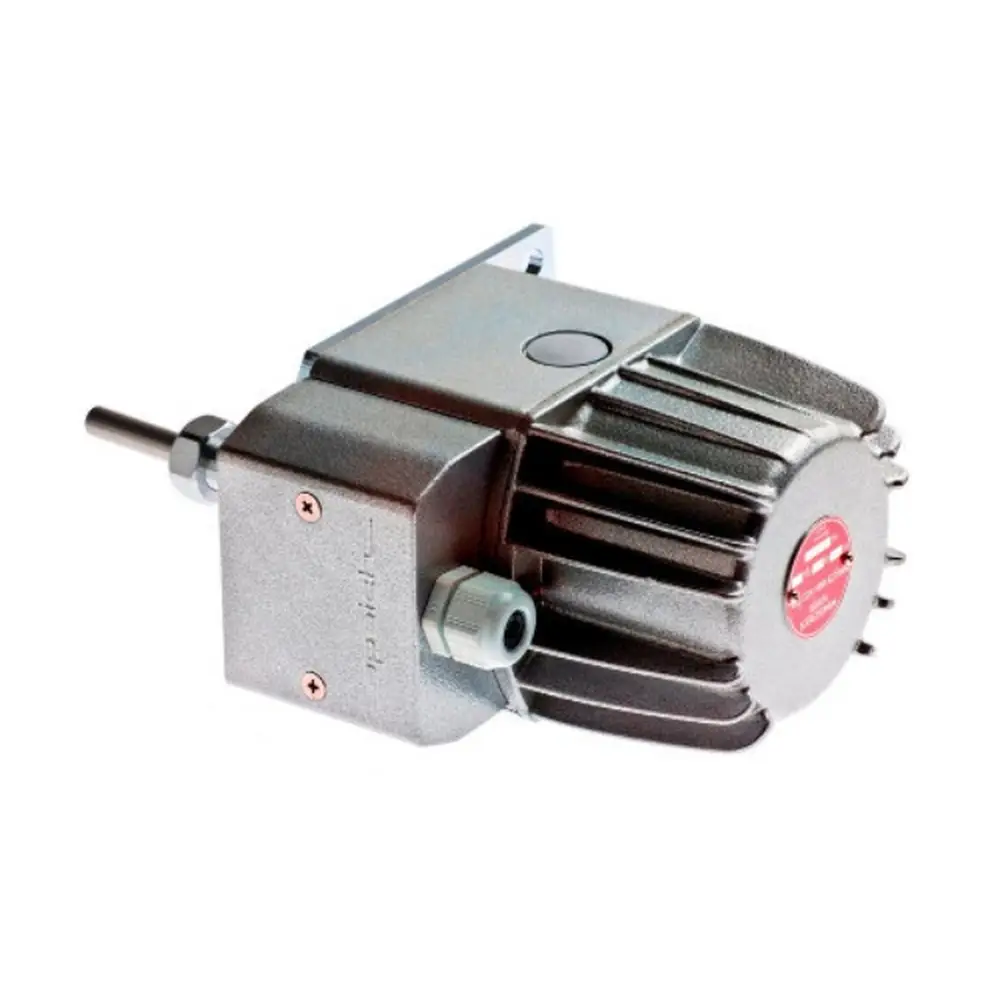

Speich Wiper Motor Type S in 24V A typical application for motor S series is for large-sized wiper systems (arms up to 1200 mm) of pleasure boats when the motor is installed below the window, an installation that doesn’t need the electromagnetic brake to fix the arm in park position.
Speich Wiper Motor Type S 24v 30 Deg D30
$1,752.61 USD
In stock
In stock
Description
Motor type S is designed to:
Have high torque, maintaining reduced dimensions;
Have high strength;
Be easily wired and maintained.
IN STOCK
Specifications
STARTING TORQUE 80 Nm
NOMINAL POWER 85 W
STARTING POWER 420 W
SPEEDV1 = 42 stroke/min
BUSHING FOR WALL THICKNESS DD = 10÷100 mm, step 10 mm
WIPING ANGLES Αα = 30°÷90° step 5°
SELF PARKING FC:
Fc = DX right side, internal view and window upper part motor mounted
Fc = SX left side, internal view and window upper part motor mounted
