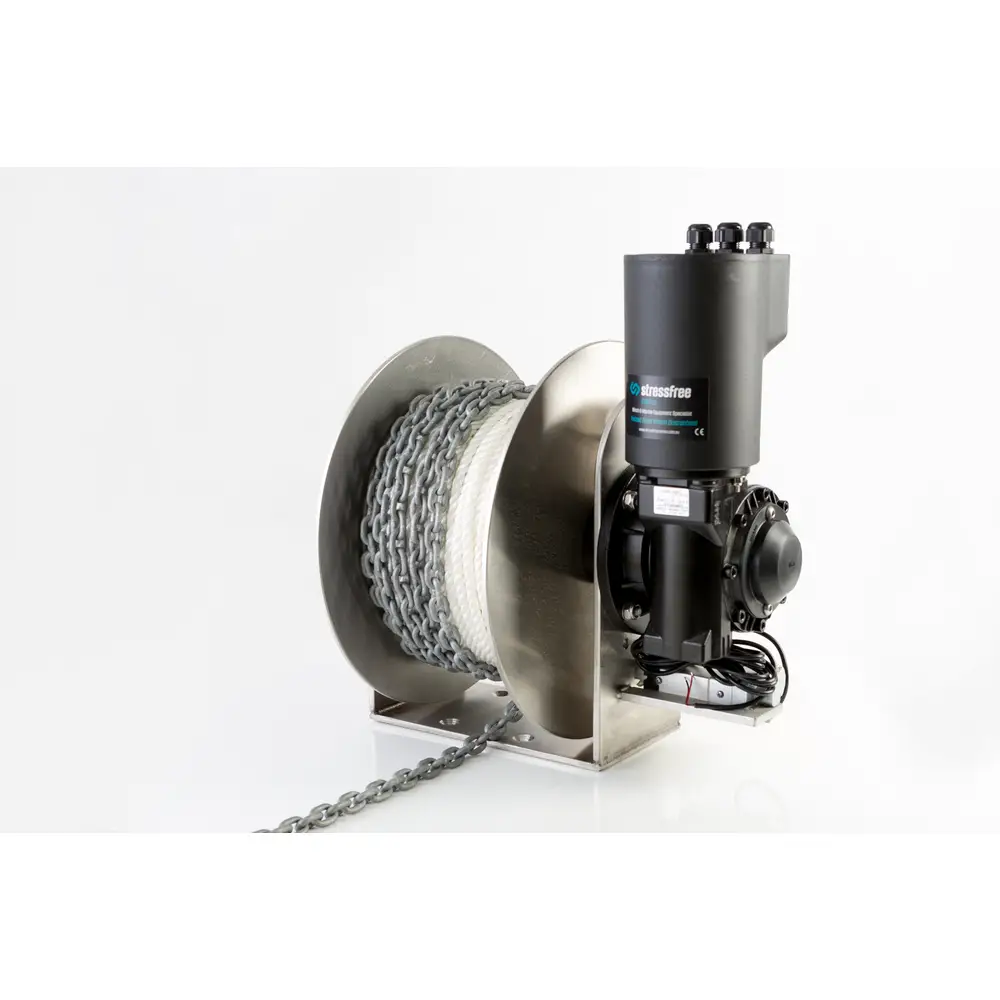

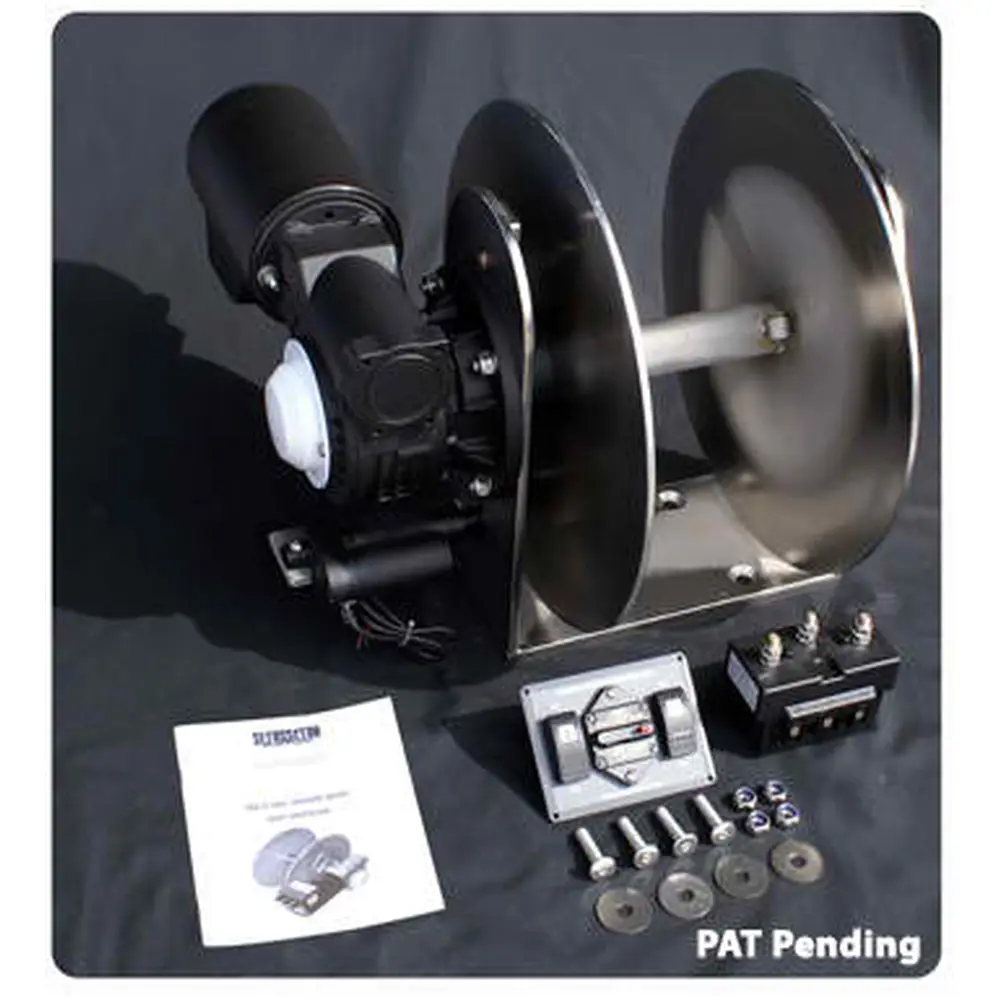

Stressfree Mighty Anchor Winch – Free Fall

Description

Stress free anchor retrieval from this compact winch.

Suitable for boats 10 metres plus

• 1700 watt motor
• All 316 marine grade stainless steel
• Baseplate 8mm marine grade stainless steel in three parts and welded
• Diameter of the drum 400mm
• Maximum lifting capacity 350 kilos (when the drum diameter is small)
• Holding capacity at anchor is 3600 kilos
• Rated to 135 amps
• Normal running the Stress Free will use 25 – 30 amps and under load up to 55 amps
• To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).
• Recommend dual batteries with the battery switch on BOTH
• Can be deck mounted

Drum capacity
• 170 metres of 8mm nylon plus 8 meters of 8mm shortlink chain OR
• 130 metres of 10mm nylon plus 8 meters of 8mm shortlink chain OR
• 100 metres of 12mm nylon plus 8 meters of 8mm shortlink chain

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations. Another 8 adjustment angles are available at 30º and 45º from each of the basic 4 mounting holes.
NB: The amount of chain can be lengthened or shortened to meet individual needs. In these situations the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate.

All Stressfree Models available

Mini
•70 metres of 8mm nylon plus 6 metres of 6mm chain OR
•80 metres of 6mm double braid eye spliced to 5 metres of 8mm nylon and 6 metres of 6mm short link chain

Midi
• 85 metres of 10mm nylon plus 8 metres of 8mm shortlink chain OR
• 110 metres of 8mm nylon plus 8 metres of 8mm shortlink chain OR
• 200 metres of 6mm double braid eye spliced to 5 metres of 8mm nylon plus 8 metres of 8mm shortlink chain

Maxi
• 85 metres of 10mm nylon plus 8 metres of 8mm shortlink chain OR
• 100 metres of 8mm double braid eye spliced to 5 metres of 10mm nylon plus 8 metres of 8mm shortlink chain
