Stressfree Mini – Free Fall – Boats to 6m

Description

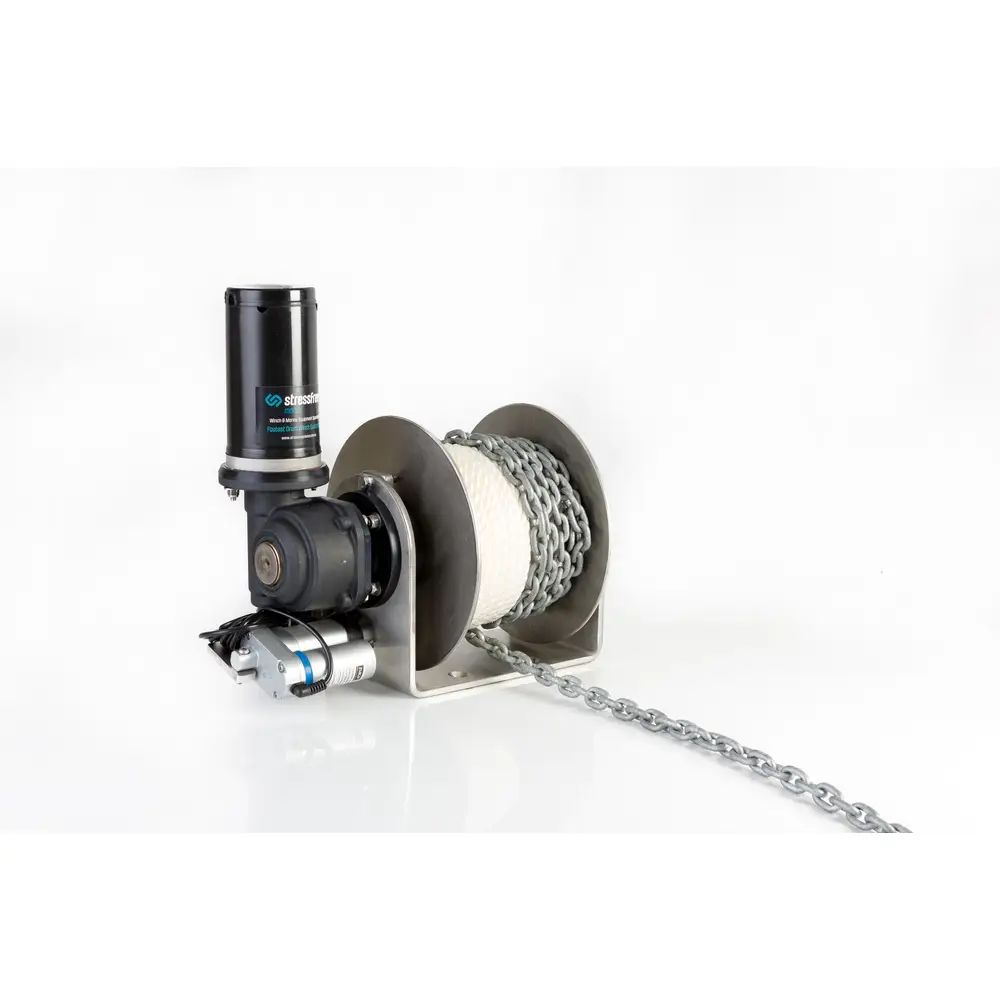

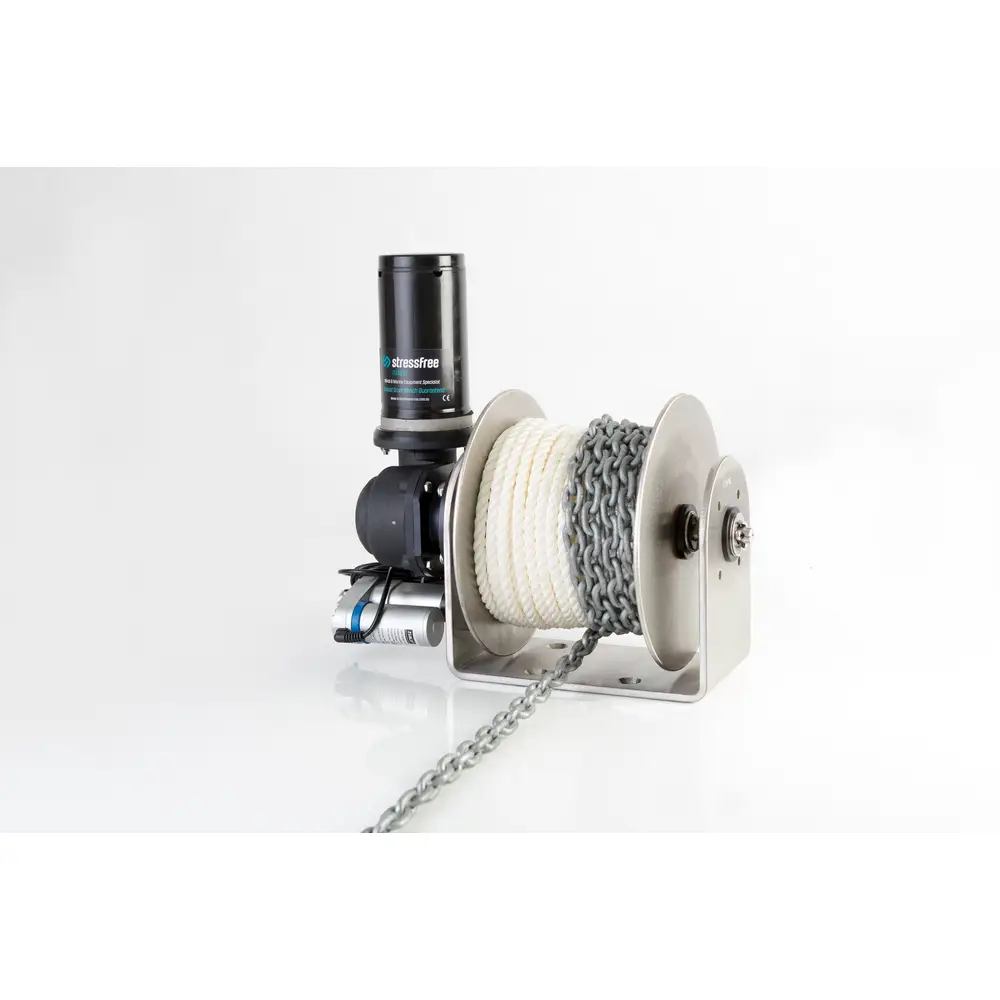

Stress free anchor retrieval from this compact winch.

•Suitable for boats from 4 – 6 metres
•Fits neatly into the anchor well
•The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well

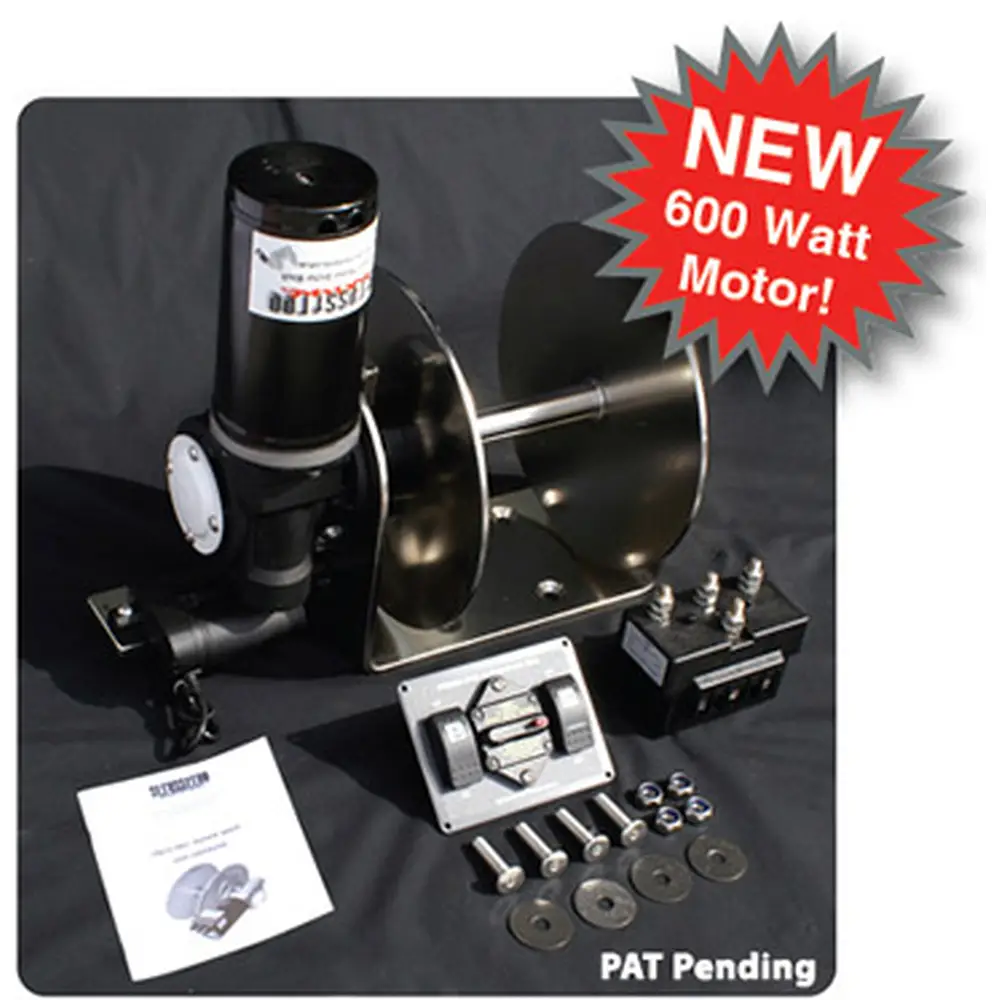

•600 watt motor
•Constructed from 316 marine grade stainless steel
•Maximum lifting capacity 195 kilos (when the drum diameter is small)
•Holding capacity at anchor is 1800 kilos
•Rated to 80 amps
•Normal running the Stress Free will use 25 – 30 amps and under load
up to 55 amps
•To protect the motor, the circuit breaker will trip out if there is a power
overload (for example if the anchor is stuck on the bottom)
•Recommend dual batteries with the battery switch on BOTH
•Can be deck mounted

Drum capacity
•70 metres of 8mm nylon plus 6 metres of 6mm chain OR
•80 metres of 6mm double braid eye spliced to 5 metres of 8mm nylon and 6 metres of 6mm short link chain

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations. Another 8 adjustment angles are available at 30º and 45º from each of the basic 4 mounting holes.
NB: The amount of chain can be lengthened or shortened to meet individual needs. In these situations the amount of rope must be tailored to ensure there is a maintained clearance between the chain and the baseplate.

Why Stressfree?

t
• 36 month warranty – Recreational Use

t

• Proven 20 year history

t

• Patented Freefall mechanism

t

• Precision anchoring – no overruns

t

• Fastest winch on the market

t

• Emergency override

t

• Quality European manufactured motor and gearbox

t

• Innovation is our game
