Quality heavy duty tested ‘D’ shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security.

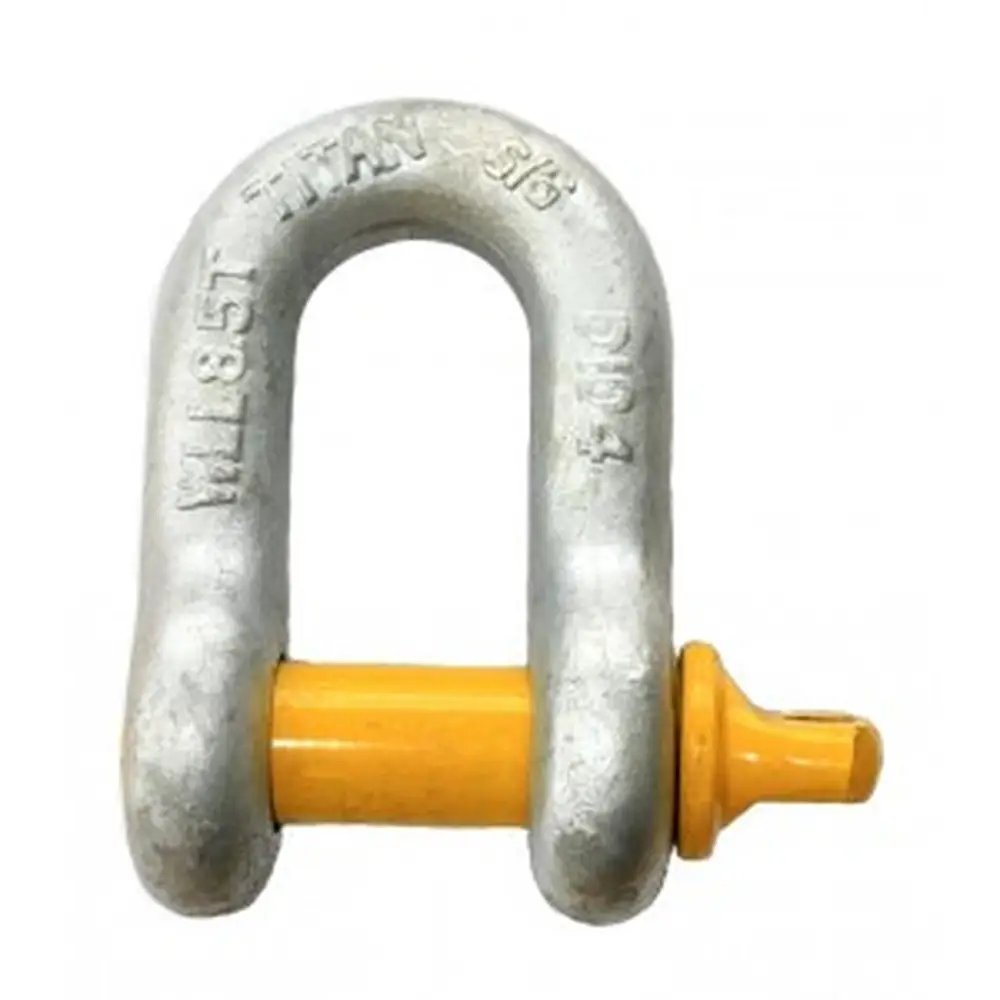

Titan High Tensile Galvanised D Shackle – 5/16″
$4.03 USD
In stock
In stock
Description
Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1.
-
t
- Stamped with working load limit.
- Load rated shackle
- Hot dipped galvanised
- Security Pin
t
t
t
Rating:
| Bail Size | Pin Diameter | Working Load | Breaking Load | Screw Diameter (D1) | Thread (E) | Inside Width (W) | Width (W1)(oa) | Length (L) |
| 8mm | 10mm | 750kg | 4500kg | 5.6mm | 3/8”16UNC | 13.5mm | 29.5mm | 42.2mm |
Specifications
Diameter – 5/16” (8mm)
Pin – 3/8” (10mm)
Working Load – 1650LB, 0.75T, 750KG
Breaking Load – 9900LB, 4.5T,4500KG
