Torqeedo Ultralite 403 Kayak Motor – The first genuine kayak motor An electric outboard suitable for kayaks needs to meet very special standards: It must be extremely light and also watertight.
Torqeedo Ultralite 403 Electric Kayak Motor
$2,420.86 USD
In stock
In stock
Description
The motor needs to fit onto almost any kayak. It must be faster than a kayaker can paddle, and provide a worthwhile range. The result of these challenges is called Ultralight, which meets all these demands. It weighs only 7 kg including battery.
Application
* Leisure:
Increase your range with the Ultralight 403. Or take a family member paddling who enjoys the support and fun of a quiet electric motor.
* Touring:
With the Ultralight you will be able to ride through local currents faster and easier giving you extra reserve capacity.
* Fishing:
We don´t need to convince you. You know you need this motor.
This product includes Kayak motor with integrated LIMA high-performance battery, charger, remote throttle control with GPS-based range calculator with information display, magnetic on/off pin.

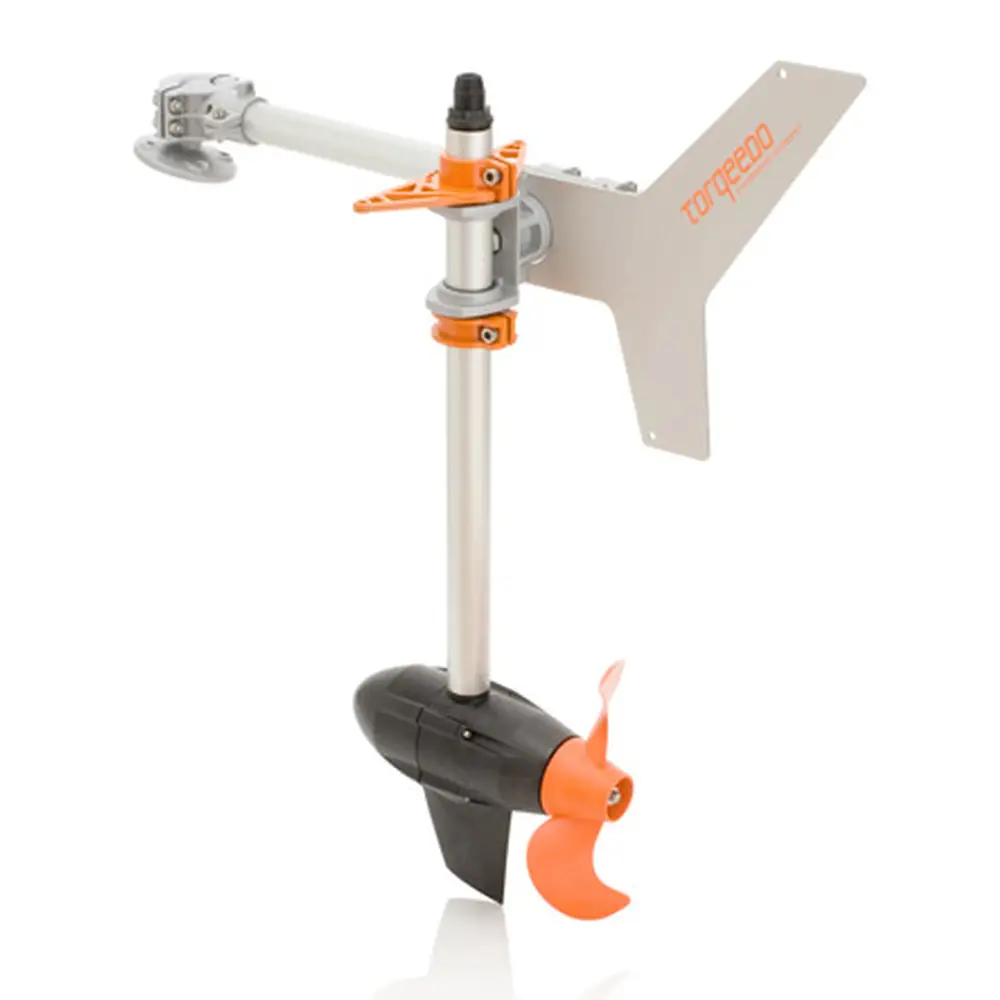

The first genuine kayak motor
An outboard suitable for kayaks needs to meet very special standards: It must be extremely light and also watertight. The motor needs to fit onto almost any kayak. It must be faster than a kayaker can paddle, and provide a worthwhile range.
The result of these challenges is called Ultralight, which meets all these demands. It weighs only 7 kg including battery.
* Mounting: Can be mounted on most rigid-hull kayaks with stainless steel cavity dowel pins.
* Steering: Steering can be locked, after which kayak is steered with the paddle or the rudder. This results in a larger radius of turn. Alternatively, the motor can be connected to the rudder or the steering system of the boat, which makes it very maneuverable (e.g. for fishing).
* Watertightness: All motor components are watertight, protected against complete immersion.
* Safety: The motor shuts off when the magnetic key on the remote throttle control is removed. Therefore, for safety reasons, the magnetic key should be attached to the wrist or the life vest. If the kayak capsizes, the motor shuts off automatically to avoid possible injury.
* Lithium-manganese battery: Integrated GPS; the capacity of the battery is 320 Wh, i.e. 10.8 Ah at 29.6 V. When fully discharged, the charge time with the charger supplied is approximately 8 hours.
*Lithium-manganese battery life expectancy: Charge cycles are not the main factor affecting the service life of the lithium-manganese battery. The battery does not have a memory-effect. Generally, a loss of capacity of 4% per year can be assumed. Aging is accelerated if the battery is exposed to high temperatures for long periods and if it is stored fully charged for long periods. Therefore, the battery can be used in very hot conditions, but should be removed from the sun and stored in a cool place when not used. If it is stored for a longer period of time, its charge status should be about 50%. If these instructions are followed, your battery will have a life expectancy of some 6-10 years.
Specifications
Technical Data spec sheet – compare the different Torqeedo models here
Input power in watts: 400
Rated voltage in volts: 28.8
Final voltage in volts: 33.2
Propulsive power in watts: 180
Comparable petrol outboards (propulsive power): 1 hp
Comparable petrol outboards (thrust): 2 hp
Maximum overall efficiency in %: 45
Static thrust in lbs: 33
Total weight in kg: 7.0
Weight of motor without battery in kg: 4.5
Weight of integrated battery in kg: 2.5
Shaft length in cm: 45
Integrated battery: 230 Wh LIMA
Propeller dimensions in inches: 8 x 8
Propeller speed at full power in rpm: max. 1,200
Control: Remote throttle control
Steering: Provision for connection to kayak rudder; lockable
Tilting device: manual with grounding protection
Stepless forward/reverse drive: yes

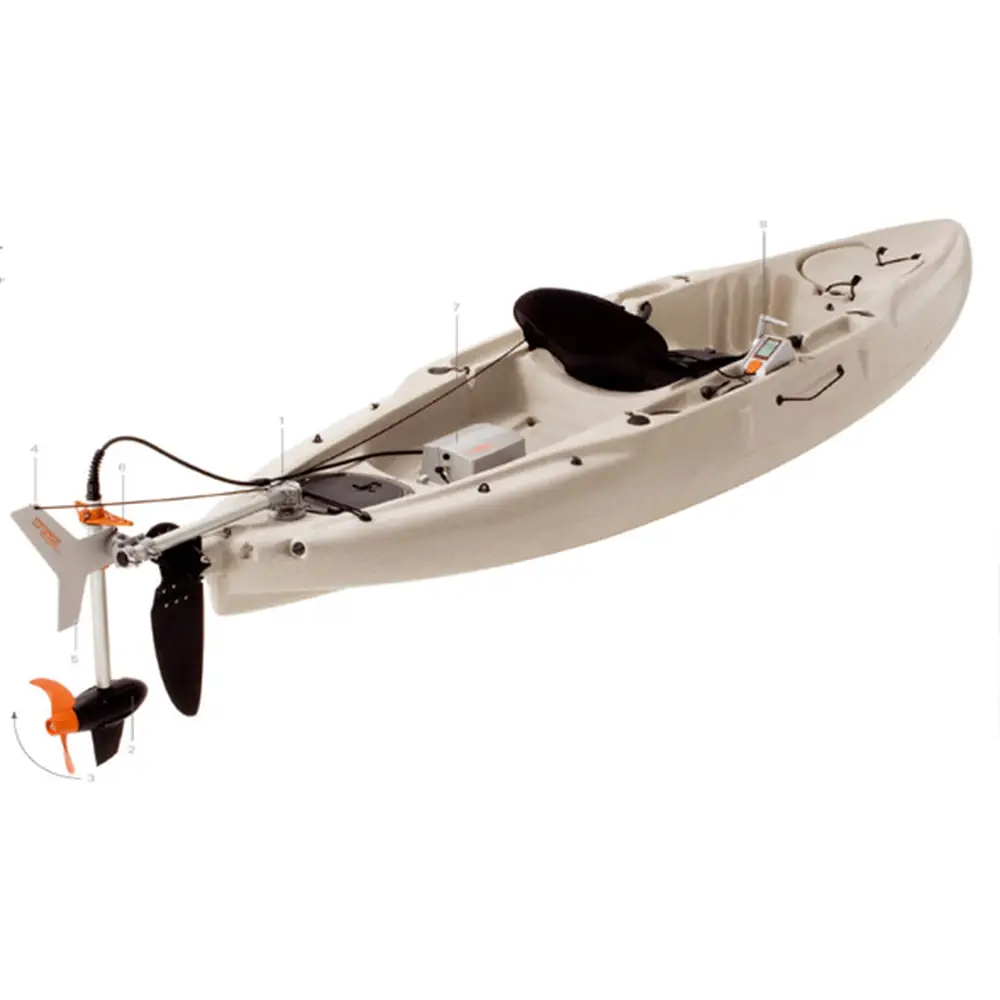

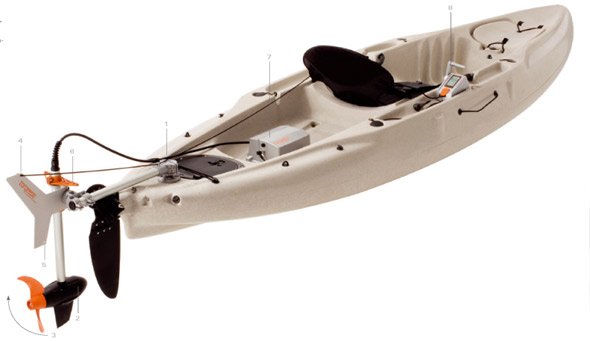

1. Mounting ball attaches onto the top of the kayak. Ball-and-socket joint adapts to different kayak shapes. Only the small mounting ball is fixed permanently to the boat, the motor with all the other parts can be easily removed when not needed.
2. Extremely high-efficient drive train, performance comparable with 1 hp petrol outboard (cable from outboard to battery 2 m).
3. Auto kick-up feature to protect from grounding.
4. Attachement point for a line to manually tilt the motor.
5. Attachement point for the “reverse drive” line (only necessary to revers).
6. Connection to kayak steering / steering lock mechanism.

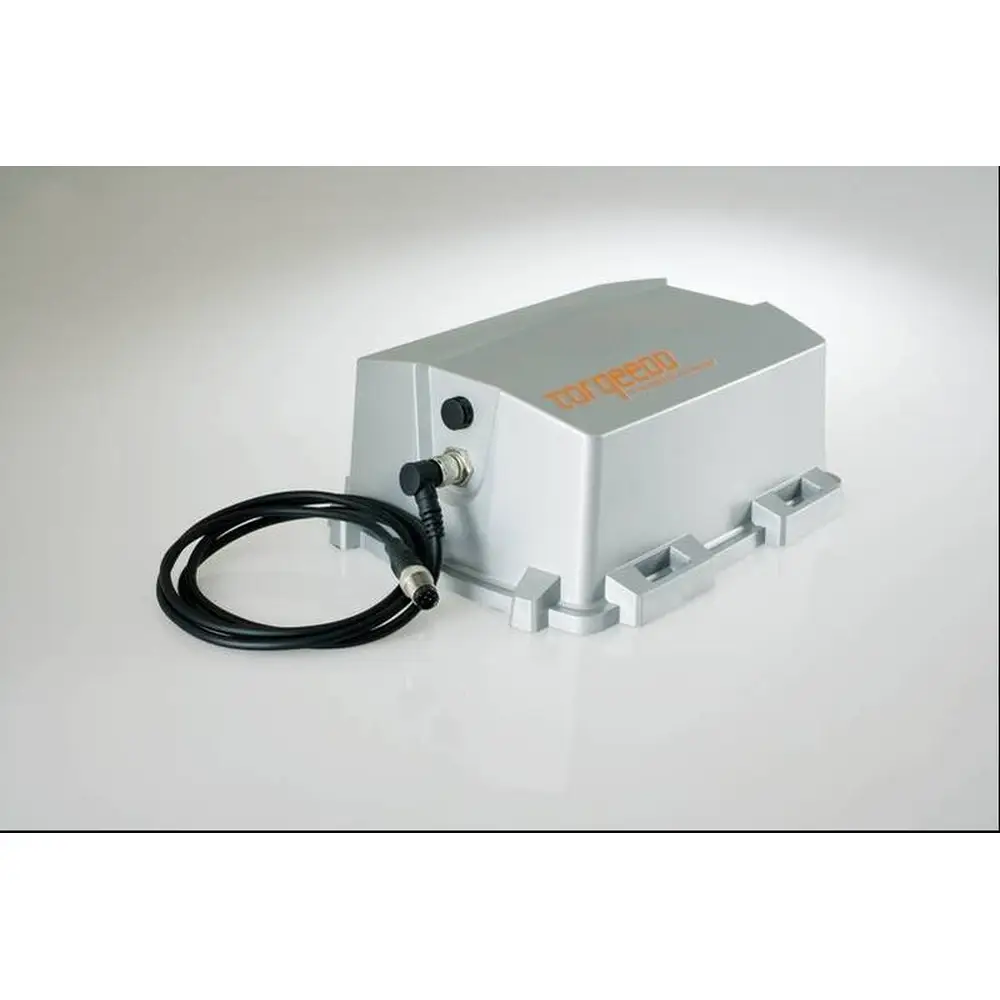

7. Lithium-manganese high-performance battery with integrated GPS-receiver.

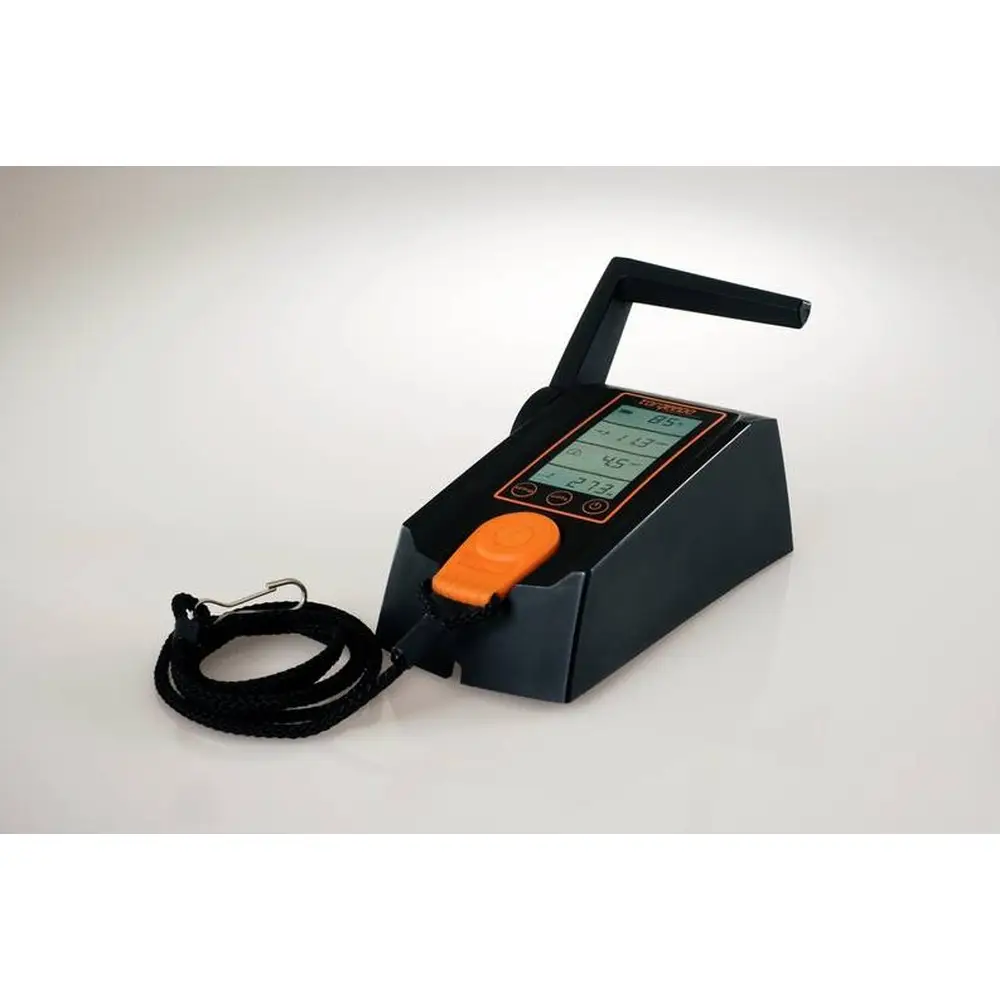

8. Remote throttle control with magnetic on/off key and information display (incl. cable 1.5 m).
Range
Example of use: Ultralight 403 with integrated battery (28.8 V / 8 Ah), Fishing kayak 4.1m, 26.3kg
Full throttle
Speed in km/h: 9.3
Range in km: 5.6
Run-time in hours: 0:36
Half throttle
Speed in km/h: 6.0
Range in km: 18.0
Run-time in hours: 3:00
Slow speed
Speed in km/h: 4.2
Range in km: 25.3
Run-time in hours: 6:00
Example of Use: Ultralight 403 with integrated battery (29.6 V / 10.8Ah), Touring kayak 4.7m, 23kg
Full throttle:
Speed in km/h: 9.8
Range in km: 6.6
Run-time in hours: 0:42
Half throttle
Speed in km/h: 6.2
Range in km: 18.6
Run-time in hours: 3:00
Slow speed
Speed in km/h: 4.2
Range in km: 30.1
Run-time in hours: 7:12
Downloads
Torqeedo Ultralight English Manual – Download (1.47MB)
Torqeedo Catalogue 2018 – Download here
