Name: 12V Power Trim / Tilt Hydraulic Pump Unit
SKU: 6010501
Price: 322.28 USD
Availability: InStock

12V Power Trim / Tilt Hydraulic Pump Unit

12V 3-Wire Power Trim / Tilt Hydraulic Pump Unit

$322.28 USD

In stock

Product Code: 6010501

Category: Outboard Accessories

Description

Mercruiser Volvo / Outboard Trim Tilt Hydraulic Motor
Come complete with hydraulic oil reservoir
This after market replacement part is compatible with Mercruiser and Volvo stern drives. In some cases a fitting maybe required for connection to your existing hydraulic lines.

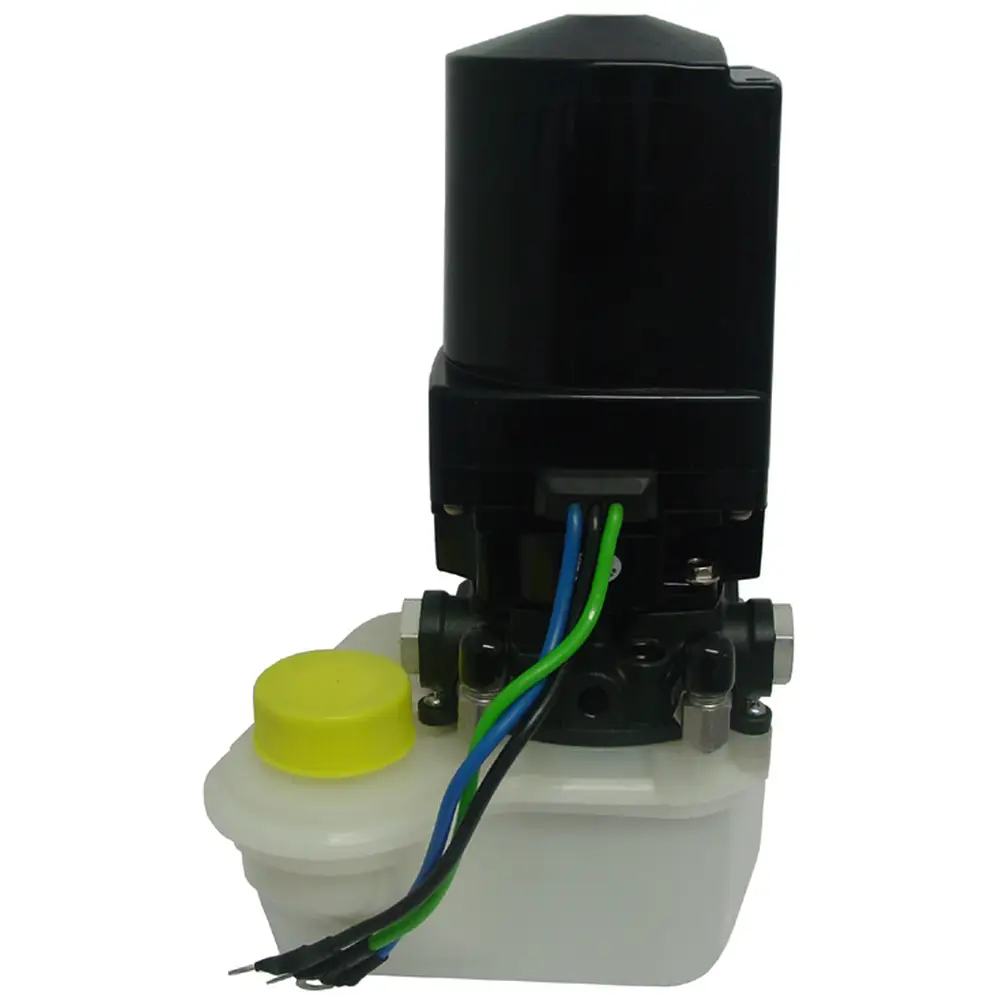

Motor, Pump and reservoir assembly. Fits Mercruiser Alpha and Bravo Stern drives 1983 and newer.
Replaces: Mercruiser: 14336A6, 14336A8, 14336A9, 14336A15,
88183A5, 88183A12

Dimensions: 172.8mm (L) x 150.8mm (W) x 274.1mm (H)

TMC 12V 3-Wire Power Trim / Tilt Hydraulic Pump Unit

Mercruiser Volvo / Outboard Trim Tilt Hydraulic Motor

Come complete with hydraulic oil reservoir

This after market replacement part is compatible with Mercruiser and Volvo stern drives. In some cases a fitting maybe required for connection to your existing hydraulic lines.

Motor, Pump and reservoir assembly. Fits Mercruiser Alpha and Bravo Stern drives 1983 and newer.
Replaces: Mercruiser: 14336A6, 14336A8, 14336A9, 14336A15,
88183A5, 88183A12

Warranty: 2 years

Specifications

Operating pressure: UP 105-130Kgf/cm2, DOWN 50-60Kgf/cm2
Maximum pressure: 170-210Kgf/cm2
Volume: 3.5LPM

Replace these origional manufacturer Part Numbers:
MERCURY MARINE 14336A20, 14336A8, 88183A12
ARCO 6275
EMS 49-8025
API MARINE PT500N
THIS MOTOR IS USED IN THESE APPLICATIONS
MERCRUISER GM120 2.5L 1983-1989
GM140 3.0L 1982-1989
GML4 3.0L 1999-UP
MERC L4 165 3.7L 1987-1989
MERC L4 180 3.7L 1987-1989
GM V6 175 4.3L 1987-1992
GM V6 205 1985-1991
GM V6 4.3L LX/H/EFI 1992-UP
GM V8 200/230 5.0L 1987-1995
GM V8 260 1987-1995
GM V8 5.7L L/LX/EFI 1996-UP
GM V8 350 MAG 1997-UP
GM V8 7.4L 1988-UP
GM V8 454 1995-UP
GM V8 500 BRAVO 1994-1997
GM V8 502/520 MAG BRAVO 1990-1999
600 SC 1997

Fits most Volvo sterndrives however connections maybe need to be altered
Dimensions: 172.8mm (L) x 150.8mm (W) x 274.1mm (H)
