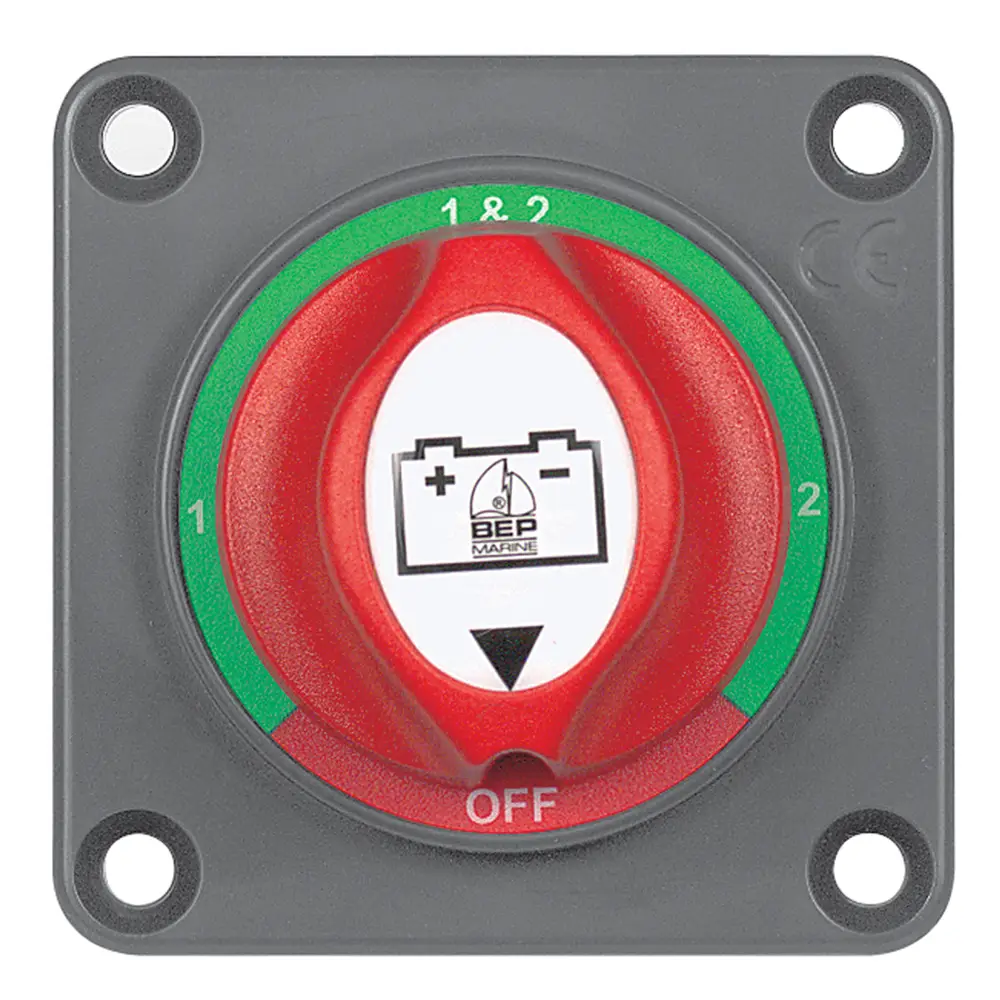

New in 2006 the panel mount range of battery switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution with the following features……….
Features:
•Fits standard BEP battery switch label range.
•CSK recessed for surface mount application
•Standard 2 1/16″ hole cut out (Same as standard gauge hole)
•Ignition Protected
•Full access for cables with no restrictions
•Fit into Contour Connect Panel
701 Specifications:
•Continuous Rating: 200 Amps DC
•Intermittent Rating: 300 Amps DC
•Cranking Rating: 1000 Amps DC
•Voltage Rating: 48 Volts DC
•Operation: 1-2-Both-Off
•Mounting: Recessed or Surface
•Ignition protected

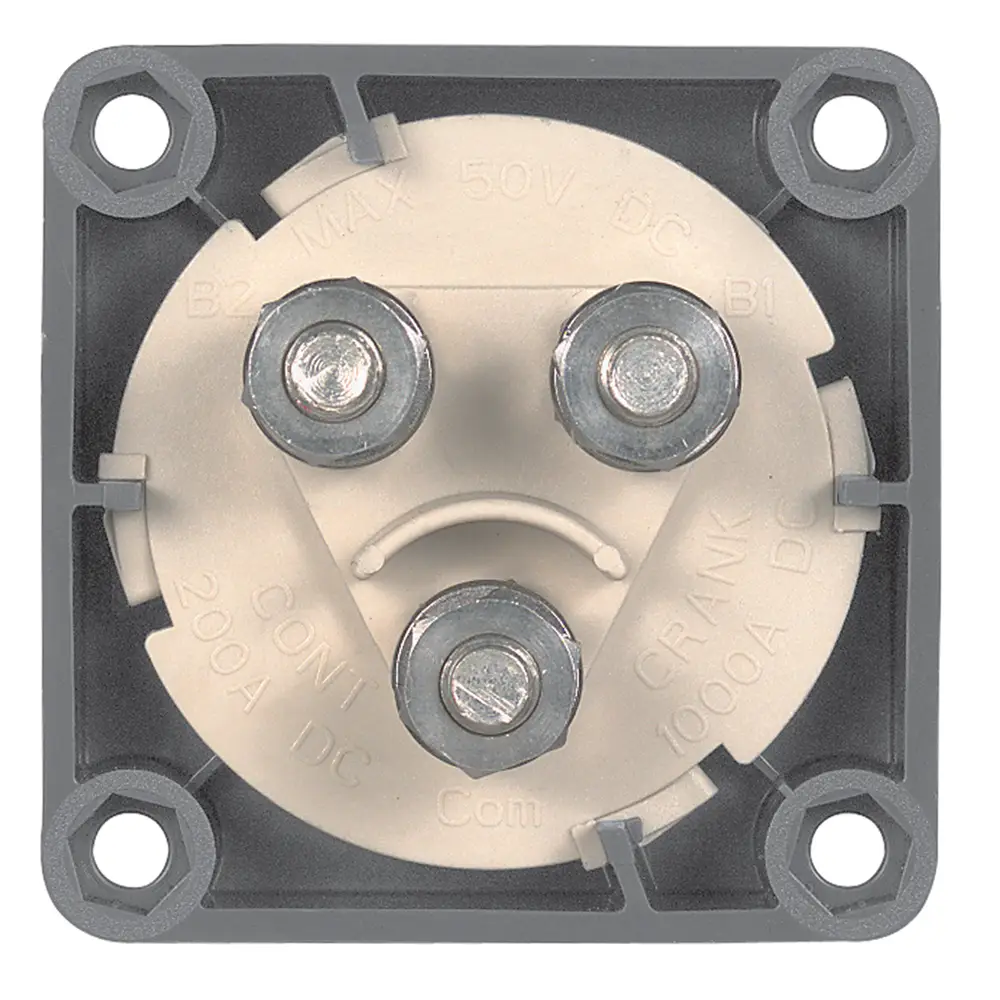

•Termination Stud Size:
3 x 5/16″
•Dimensions: 69 x 69 x 75h mm
(2.75 x 2.75 x 3h inches)
•Tin plated copper studs and nuts
