800-MS4 wiring diagram – click here to download

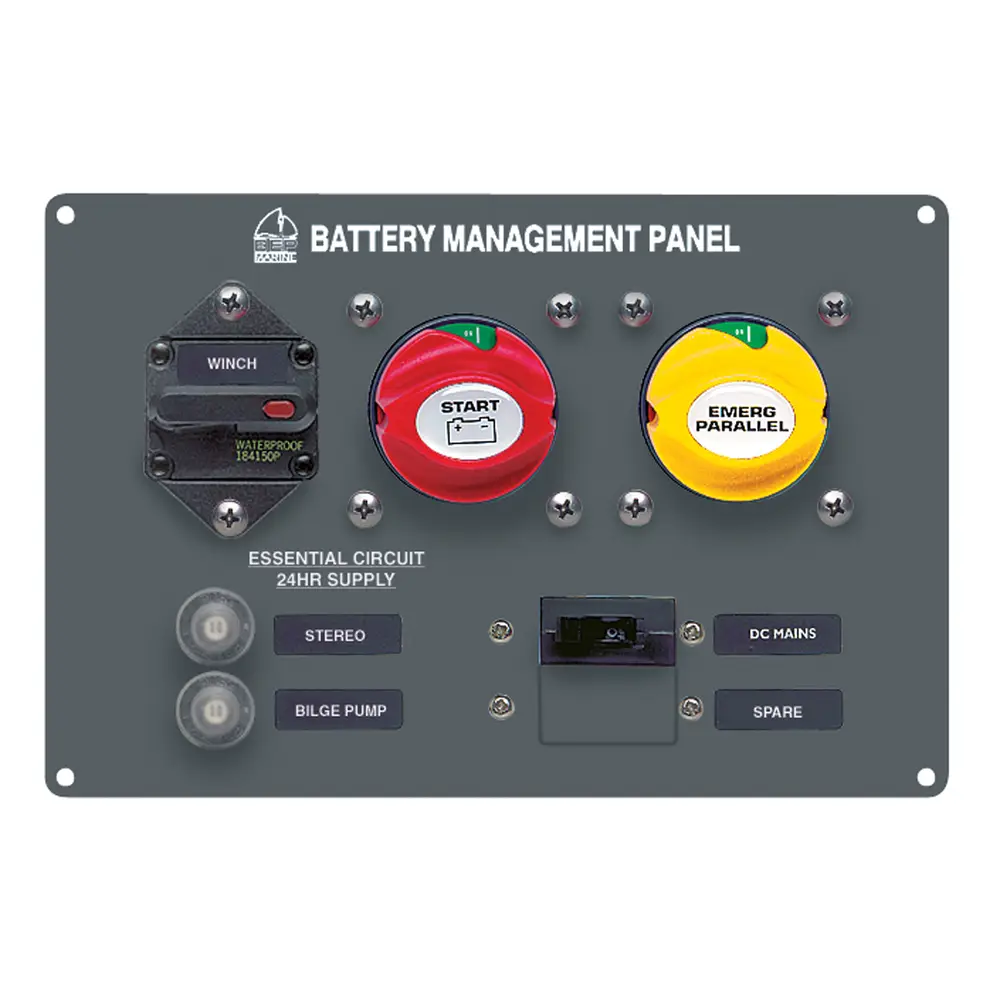

The 800-MS4 panel is designed for sail boats up to 14 m (46 ft) and power boats up to 10 m (32.9 ft) with single engine.
Essential circuits, 24 hour supply
Mains breakers for control panels, davit winches or treatment systems
800-MS4 is supplied with 702B negative stud
Heavy-duty breakers for anchor winches
Powder coated aluminum panel
Supplied with a full label set for panel circuit breakers – Item # SET-MSP (additional label sets available)
Spare positions for additional battery switches and circuit breakers for extras such as radio batteries and genset batteries
DIMENSIONS: 160x239x75 mm (6.3″x9.4″x2.9″)
