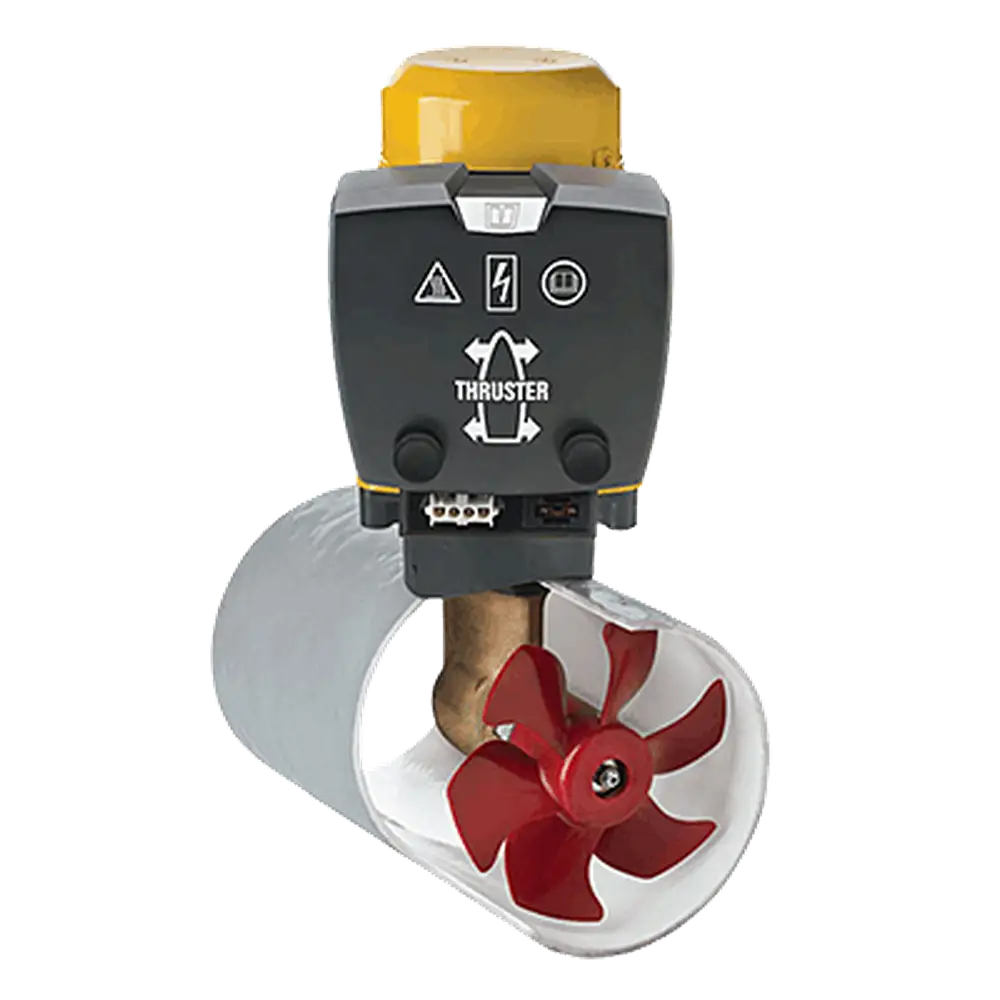

Bow Thruster 35Kgf

Description

The Vetus 35Kgf unit is one of the few thrusters for this class of vessel with a 150mm diameter tunnel – making it much easier to fit than competitors with standard 185mm units.

• A single propeller creates less flow disturbance in the tunnel
• 4 minute continuous run time
• The VETUS unique propeller blade design minimises cavitation noise
• Spiral gears minimise transmission noise
• Bronze streamlined lower leg
• The use of a flexible coupling between tail piece and motor eliminates vibration
• A strong synthetic propeller eliminates corrosion and reduces weight
• Systems are easy to install, supplied with clear installation and operation instructions
• All VETUS manoeuvring systems meet the EMC requirements

t
• A single propeller creates less flow disturbance in the tunnel

t

• 4 minute continuous run time

t

•  The VETUS unique propeller blade design minimises cavitation noise

t

• Spiral gears minimise transmission noise

t

• Bronze streamlined lower leg

t

• The use of a flexible coupling between tail piece and motor eliminates vibration

t

• A strong synthetic propeller eliminates corrosion and reduces weight

t

• Systems are easy to install, supplied with clear installation and operation instructions

t

• All VETUS manoeuvring systems meet the EMC requirements

Technical Data

Model Details

Thrust:35 Kgf

Power kW (hp):1.5 (2)

Reversible DC Motor:yes

Tunnel Internal Diameter:150 mm

Weight (Excluding Tunnel):12 Kg

Power Details

Current Consumption:205 Amps

Operating Time (max/hr):4 minutes

Main Fuse (‘Slow Blow’):160 Amps

Battery Ah Min/Max:1 x 55 / 1 x 108

Battery Cables (m/mm²):0-11/35

Battery Switch:250
