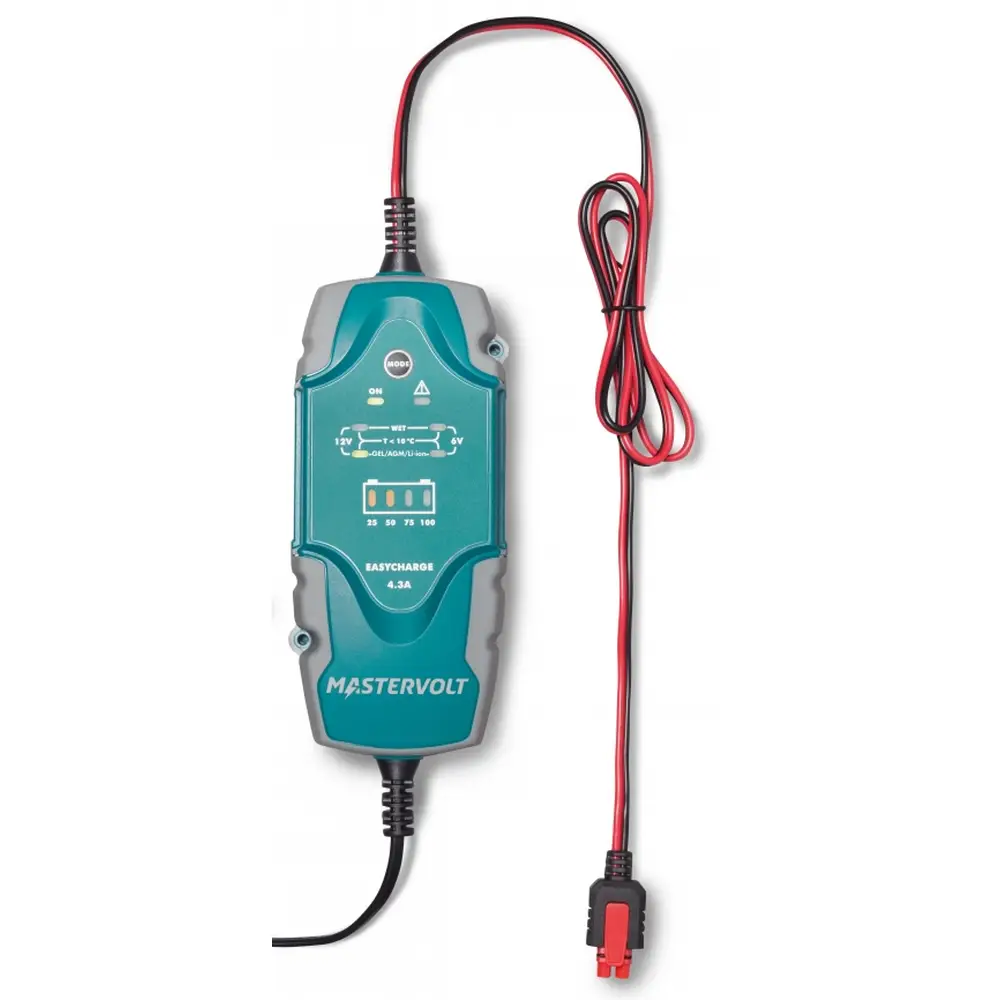

EasyCharge Multi-Stage Portable 4.3A Battery Charger

EasyCharge Multi-Stage Portable 4.3A Battery Charger

Mastervolt IP65 Waterproof portable battery charger

$75.65 USD

In stock

In stock

Product Code: MCP
Category:

Description

The EasyCharge portable battery charger is the perfect solution for trailer boats and cars. Smart charging and maintain battery health of your boat, car, motorcycle, and camper van. With a rugged, ergonomic construction, and waterproof to IP65 standard, the portable charger has an intuitive control panel and a universal input (120-230 V) for total worldwide freedom.

Connection leads included

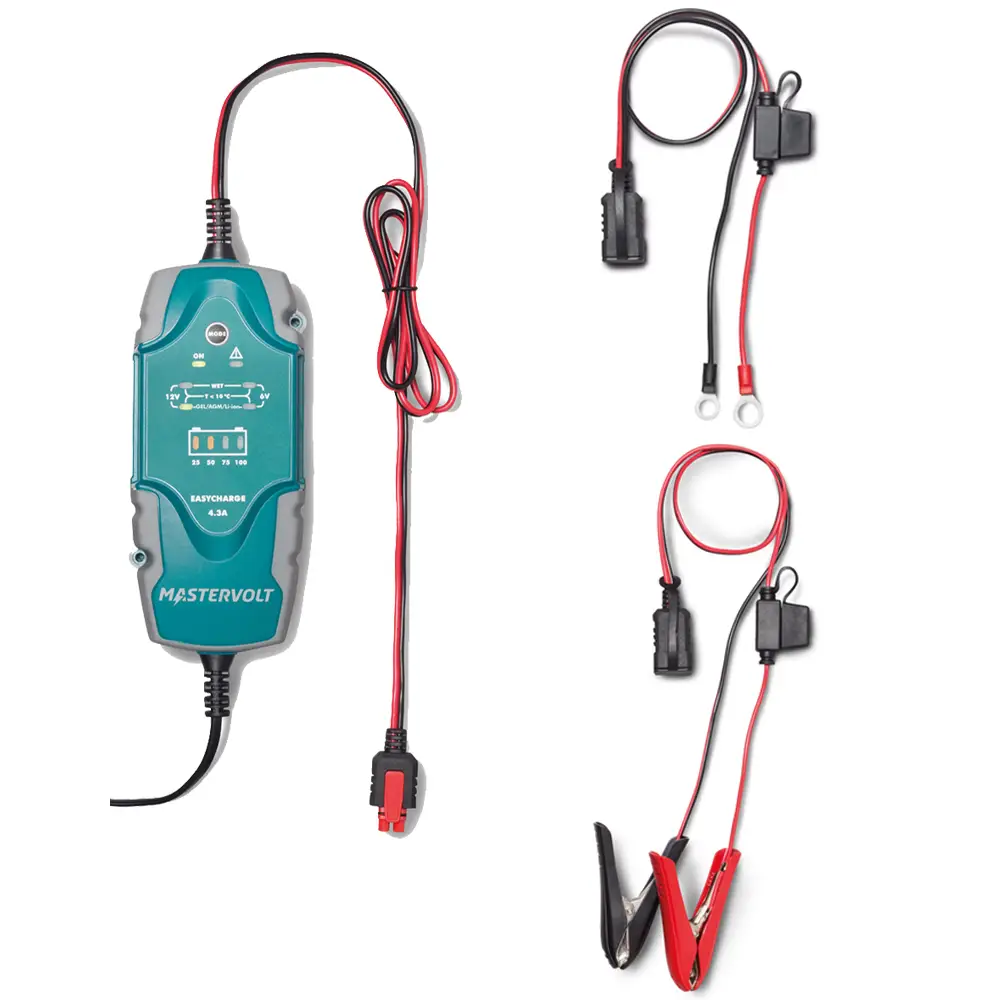

Quick select between 6 V and 12 V battery operation. The unit includes 1.8m of DC cable that connects to either a 61cm lead with ring terminals, or a 61cm lead with alligator clips, for easy installation and a variety of applications; both leads are included in the package.

Features

With Mastervolt 3-step+ charge characteristic.

    t

  • Suitable for any type of battery, including Lithium Ion (model 4.3 A).
  • t

  • Full power up to 40 °C.
  • t

  • Includes cable & NZ/AUS plug
  • t

  • Simple switching between 6 V and 12 V.
  • t

  • Portable and waterproof.
  • t

  • Easy to connect through ring terminals, or alligator clips (included).

Specifications

Total charge current: 4.3 A
Recommended battery capacity: maintain14 to 120 Ah
Recommended battery capacity: charge14 to 90 Ah
Nominal input voltage: 120-230 V (90-265 V), 50/60 Hz
AC connection1.8 m (6 ft) cable + Euro plug (CEE7/16)
DC connectionring and alligator clip connections, with integrated fuse
Galvanic isolation: Yes

Dimensions hxwxd
161 x 72 x 43.7 mm

Weight: 0.9 kg

Compliance: CE, ABYC

Technical specifications
Charge characteristic: IUoUo, automatic 3-step+ for Gel/AGM/flooded/Lithium Ion

Temperature range (ambient temp.)-20 °C to 40 °C

Protection degree: IP65

Protections:
short circuit, reverse polarity, over voltage, current limited, over temperature
