Mastervolt 700 watt Inverter. Affordable 12v to main voltage (230 V 50/60 Hz)

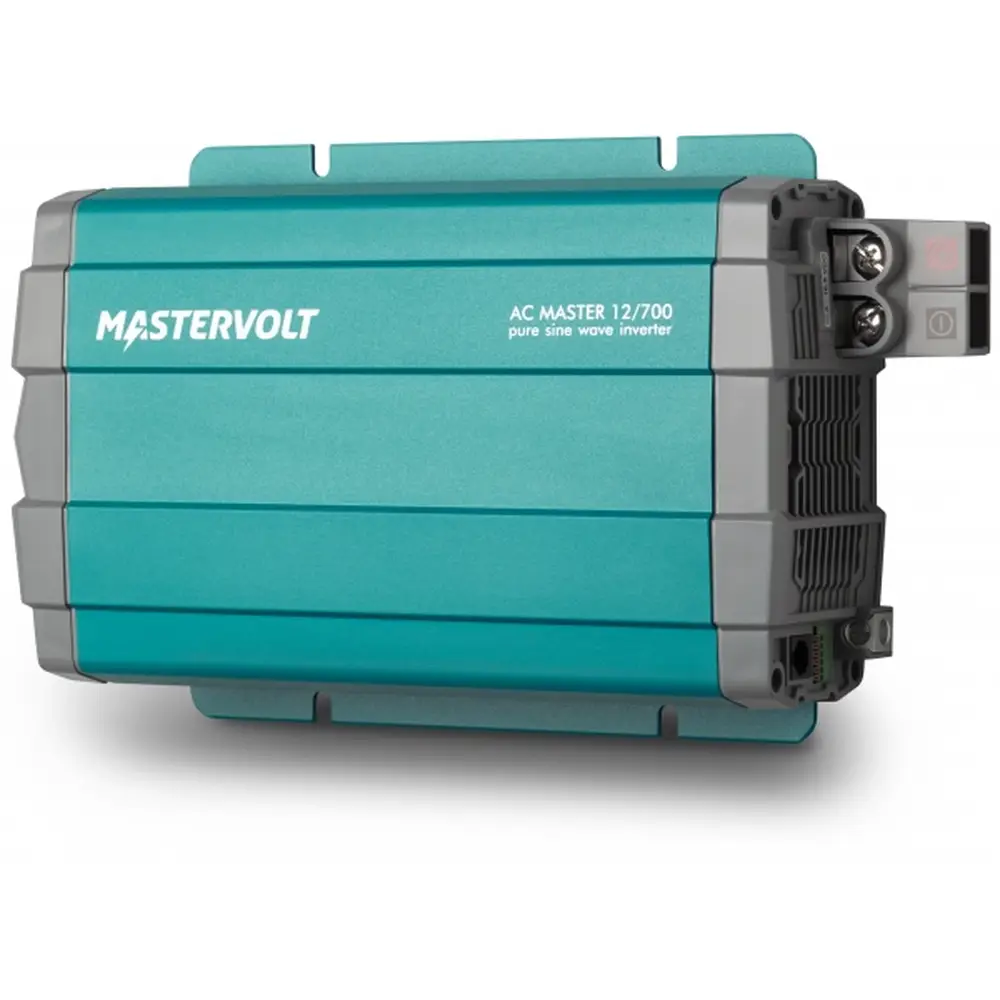

MasterVolt 700 watt 12V Inverter
$353.04 USD
In stock
In stock
Description
Features
- Pure sine wave technology protects sensitive equipment. (Computers)
- Delivers full output at high peak power under the most demanding conditions.
- Automatic power saving system for extended runtime.
- Compact and lightweight design, saving valuable installation time.
- Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
- Variable speed fan for quiet operation at low power.
- Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
- Convenient plug connection for all models
-
t
- Pure sine wave technology protects sensitive equipment. (Computers)
- Delivers full output at high peak power under the most demanding conditions.
- Automatic power saving system for extended runtime.
- Compact and lightweight design, saving valuable installation time.
- Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
- Variable speed fan for quiet operation at low power.
- Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
- Convenient plug connection for all models
t
t
t
t
t
t
t
Specifications
General Specifications:
Output voltage: 200/220/230/240 V – 50/60 Hz (selectable)
Output waveform: true sine
Nominal battery voltage12 V
Recommended battery capacity≥ 100 Ah
Continuous power at 25 °C / 77 °F, cos phi 1700 W
Continuous power at 40 °C / 104 °F, cos phi 1700 W
Peak load (1 min.)< 810 W
Peak load (1 sec.)< 1230 W
AC connection: With NZ/AU plug (code 28410700)
Efficiency91 %
Display/read-outLED indication: battery voltage, load level, status
Alarms: potential free alarm contact
Dimensions (h x w x d)
200 x 330 x 83 mm
7.9 x 13.0 x 3.3 inch
Weight: 2.7 kg
ApprovalsCE, E-mark, RCM
Technical specifications
Technologyhigh frequency, input & output fully isolated
Low battery voltage, switches off at10,5 V
Low battery voltage, switches on at12,5 V
High battery voltage, switches off at16,5 V
High battery voltage, switches on at14,5 V
Input current (nominal load)70 A
No-load power consumption (ON mode)< 1.5 A
No-load power consumption (energy saving mode)< 0.1 A
Minimal DC fuse (slow blow)100 A
Minimal cable size25 mm²
Harmonic distortion typical< 5 %
Cos phiall power factors allowed
Temperature range (ambient temp.)-20 °C to 60 °C, derating power > 40 °C
-4 °F to 140 °F
Protection degreeIP21, horizontal wall mounting
Protectionsover-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
Coolingtemperature and load controlled fan
Not compatible with MasterBus
Downloads
Mastevolt 700 watt 12V Inverter Manual Download
