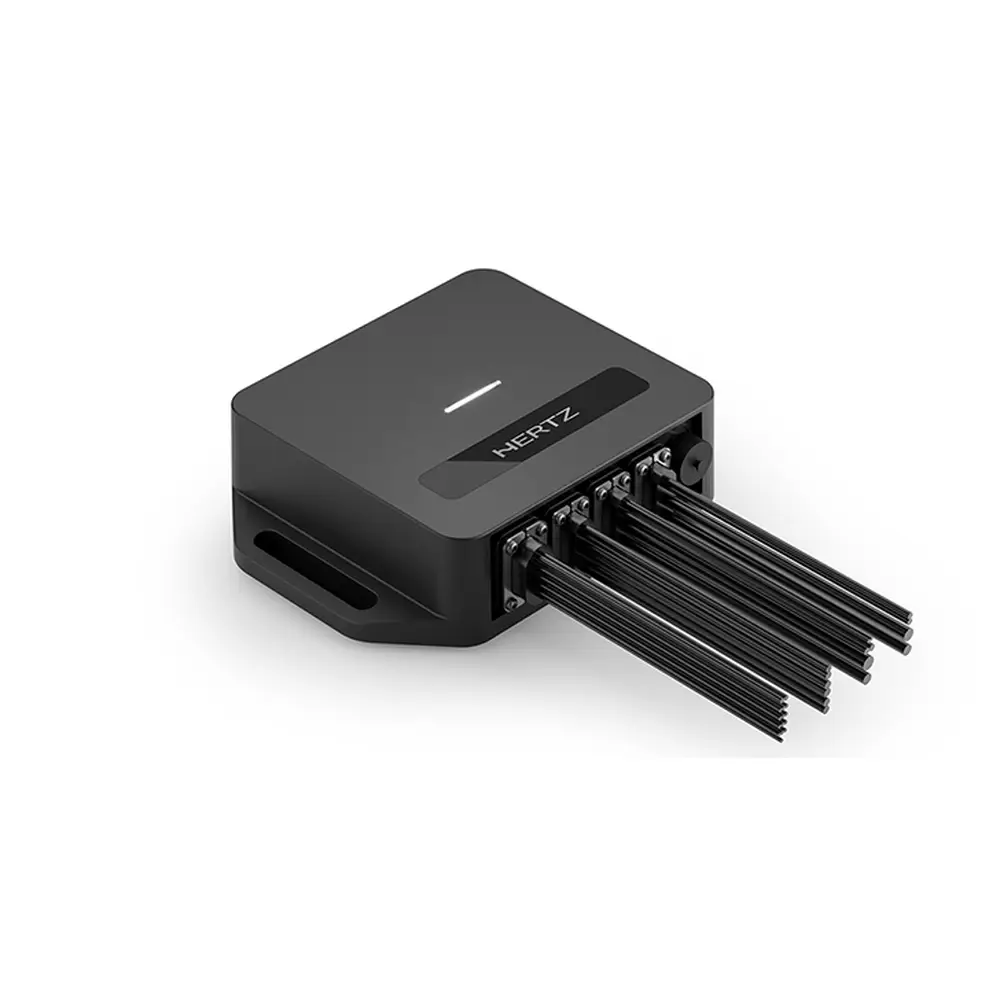

Hertz Audio Capri HBB – Black Box

Description

Designed for effortless operation through remote controls, the Bluetooth® app, or NMEA 2000®, it provides full command of four independent zones, each with dedicated subwoofer outputs. Built to endure demanding marine conditions, the CAPRI HBB delivers exceptional connectivity with Bluetooth® 5.1, USB, digital I/O, and DAB+ readiness—ensuring a true audiophile-grade experience at sea.

Specifications:

PEAK POWER @: 4 ΩCLASS-D: 4 x 70 W

FRONT PANEL IP RATING: IP66

MULTI-ZONE: 4

LINE OUT (RCA): 4x L+R (one per zone) – HPF: ALL, 60, 80, 100 Hz

SUBWOOFER OUT (RCA): 4x (LPF: ALL, 60, 80, 100 Hz)

AUX INPUT (RCA): 2x L+R

S/PDIF DIGITAL IN: Toslink (24 bit/96 kHz)

A2B® DIGITAL BUS: UTP cable (24 bit/96 kHz)

S/PDIF DIGITAL OUT: Coaxial (24 bit/96 kHz)

EQUALIZER: CUSTOM 8 BANDS for each zone

EQ. PRESET: 8

CAMERA IN: Yes

BATTERY VOLTAGE GAUGE: Yes


Size & Mounting

Unit Size mm (in.): W 146 (5.748) x H 105 (4.134) x D 121 (4.763)

Mounting Hole size mm (in.): W 122 (4.8) x H 52 (2.05)

Mounting Depth mm (in.): 99 (3.89

Mounting Method: Panel mount (4 screws)
