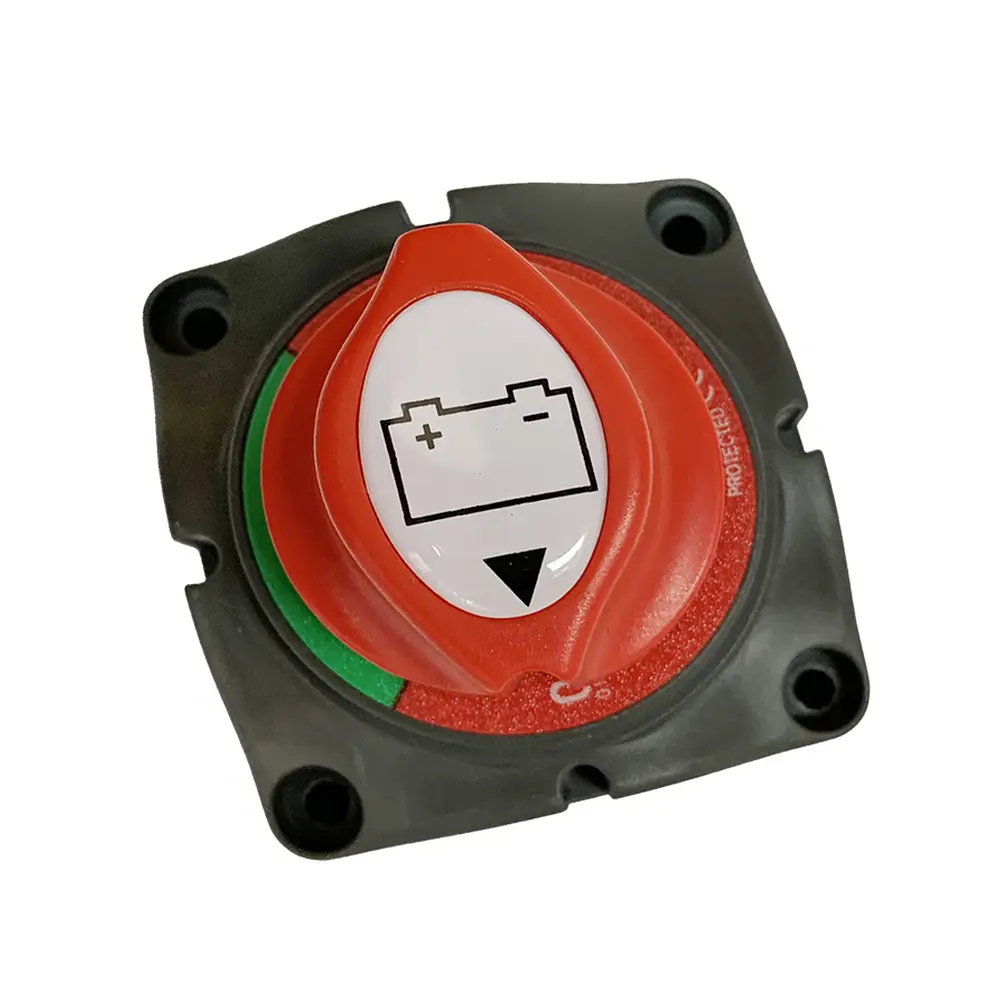

Isolating switch model standard

Description

This model is equipped with a simple on/off control knob for easy operation and reliability.

Specifications:

Continuous Current Rating: 275 Amps DC

Intermittent Current Rating: 455 Amps DC

Cranking Current Rating: 1250 Amps

Maximum Voltage: 48 Volts DC

Stud Material: Tin-plated copper with matching nuts for superior corrosion resistance

Mounting Options: Surface mount or recessed installation (requires 52mm cutout)

Ignition Protection: Yes

Terminal Stud Size: 2 x 10 mm

Dimensions (H x L x W): 75 x 69 x 69 mm
