Maxwell Windlass HRC10-8 – 1000W

Description

Maxwell’s all new HRC10 Horizontal Series represents yet another breakthrough in performance and anchor handling excellence. These horizontal, fully automatic rope/chain windlasses have been designed to meet the demands for use on larger vessels up to 16 metres (52 feet), which require a completely above deck installation system.

The HRC10’s flawlessly handle rope up to 16mm (5/8”) and chain up to 10mm (3/8”) in size, including the thick rope to chain splice. The modern appearance of the HRC10 Series retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.

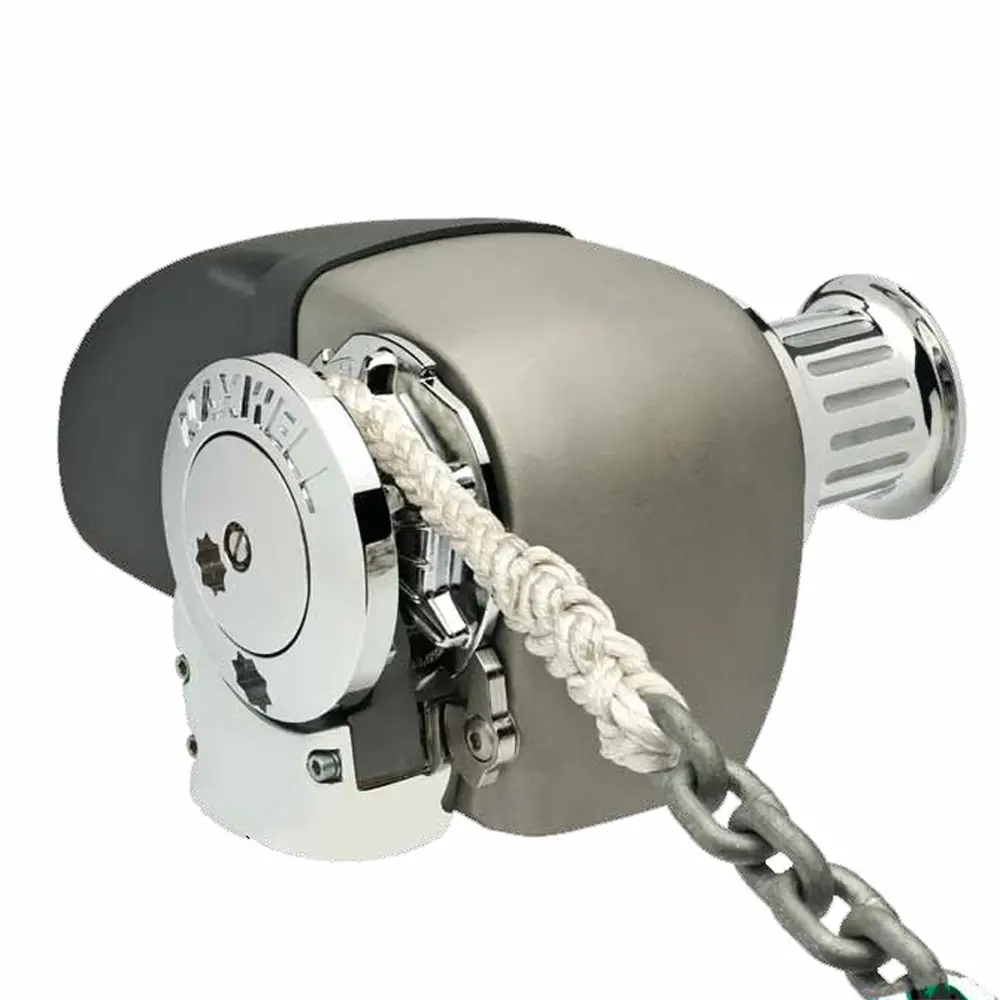

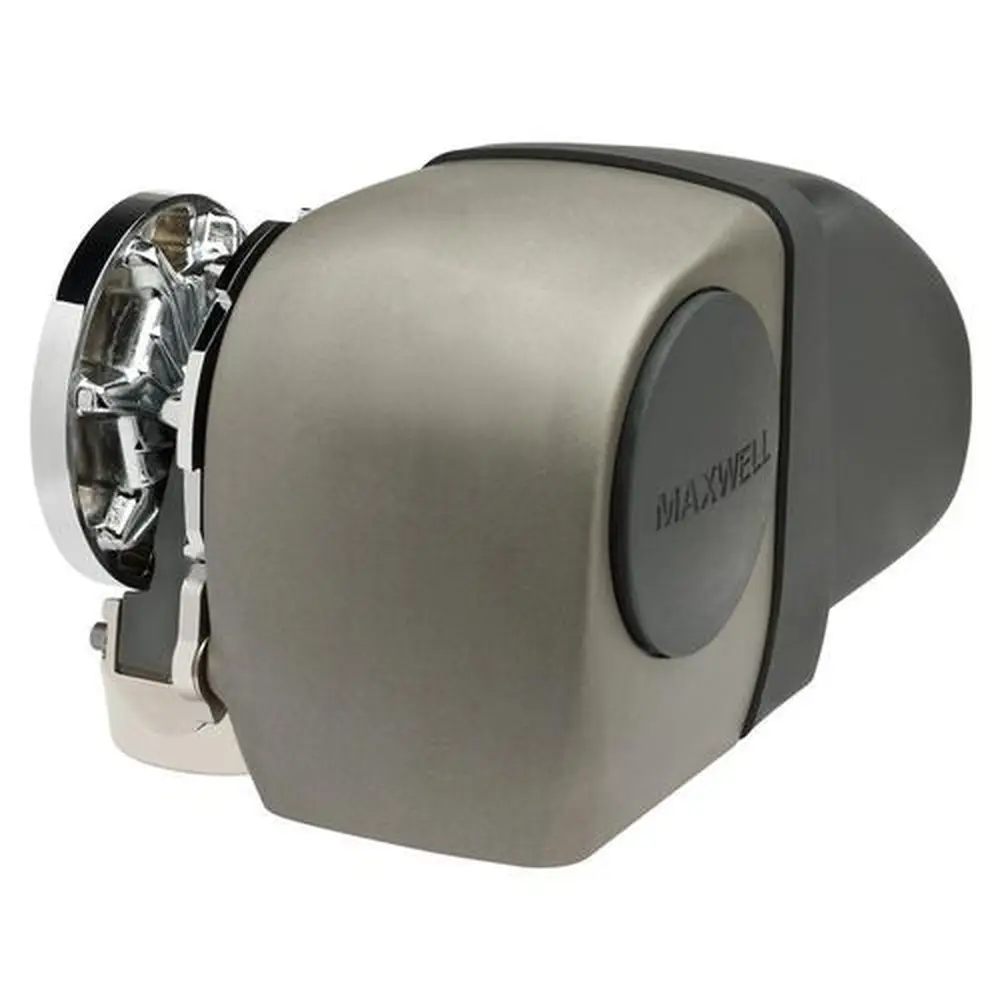

TWO OPTIONS: Chain/Rope Wheel and Capstan (SCW/SD as per image above) OR Chain/Rope Wheel only (SCW), port side – Capped off
Horizontal models have the advantage of being better suited to applications where there is extreme deck thickness (over 200mm – 8”), limited below deck accessibility or when two anchors must be handled from one winch.

MOTOR: 12 V, 1000 W, with Chain/Rope Wheel and Capstan (SCW/SD) OR Chain/Rope Wheel only (SCW), port side – Capped off

CHAIN & ROPE: 8 mm chain, 14-16 mm rope

BOAT SIZE: 25 – 47ft
