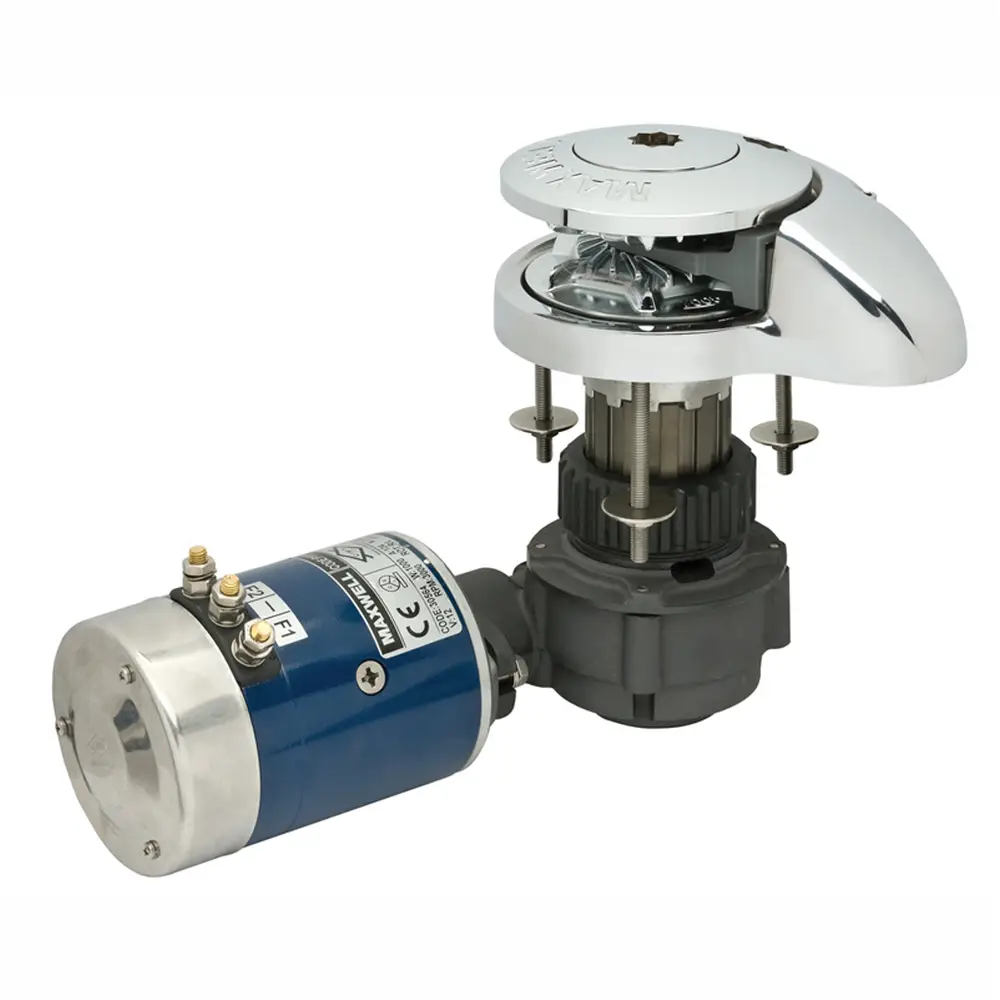

Maxwell Windlass RC8-8 – 1000W

Description

1. Windlass/motor/gearbox
2. Reversing Heavy Duty Solenoid
3. Up/Down Panel Control Switch
4. 135 Amp Circuit Breaker/Isolator

Maxwell’s all new RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. The RC8-8 is available in a low profile version or optional with a top mounted capstan.

The all new stainless steel RC8-8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 8mm chain spliced to 14mm 8-brait (plait) rope.

Maxwell’s revolutionary new chainwheel.

Maxwell once again leads the market in innovative thinking with the introduction of their latest Wave Design™ chainwheel. This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a ‘wave pattern’ action that is far superior to the traditional ‘jam cleat’ manner of holding the rope compared to all other products on the market. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.
Wave Design™ Chainwheel

Is fitted to all RC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and Metric.
Chainwheel’s unique Wave Design™ action

Click here for more information on the Wave Design™ Chainwheel
