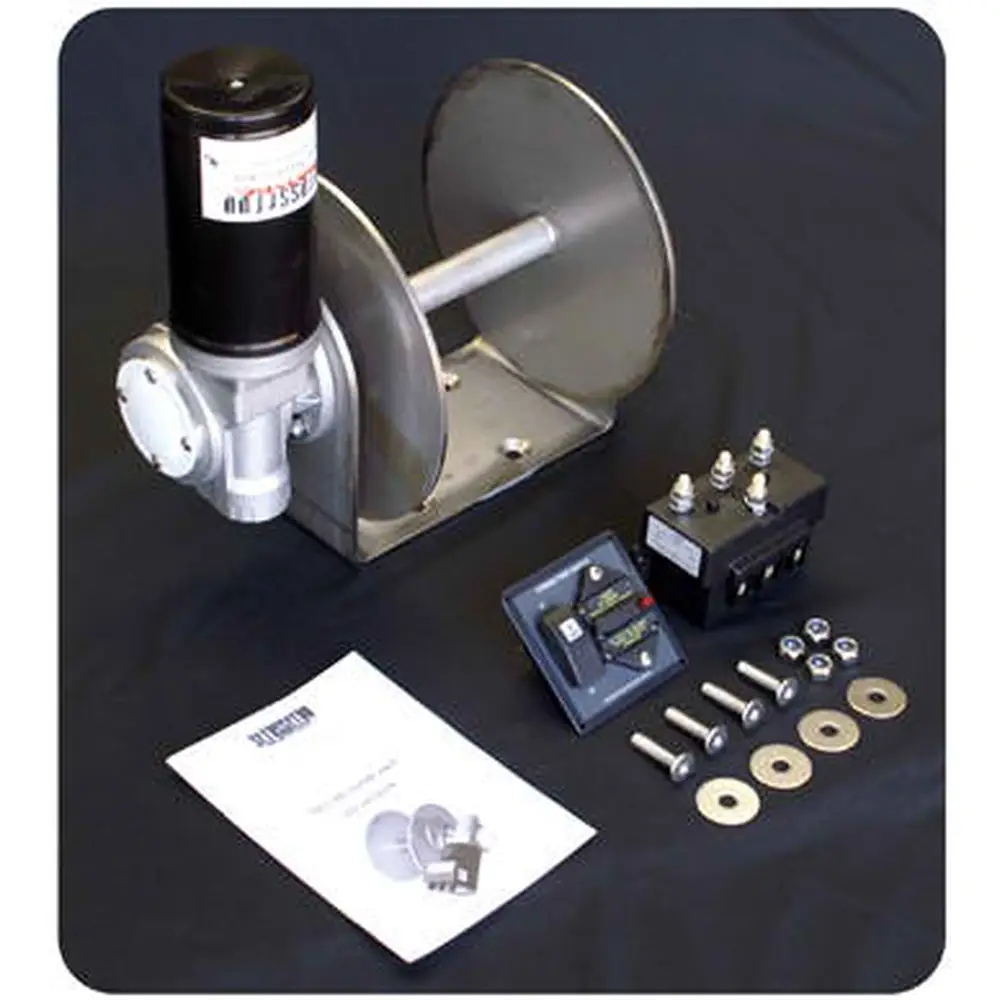

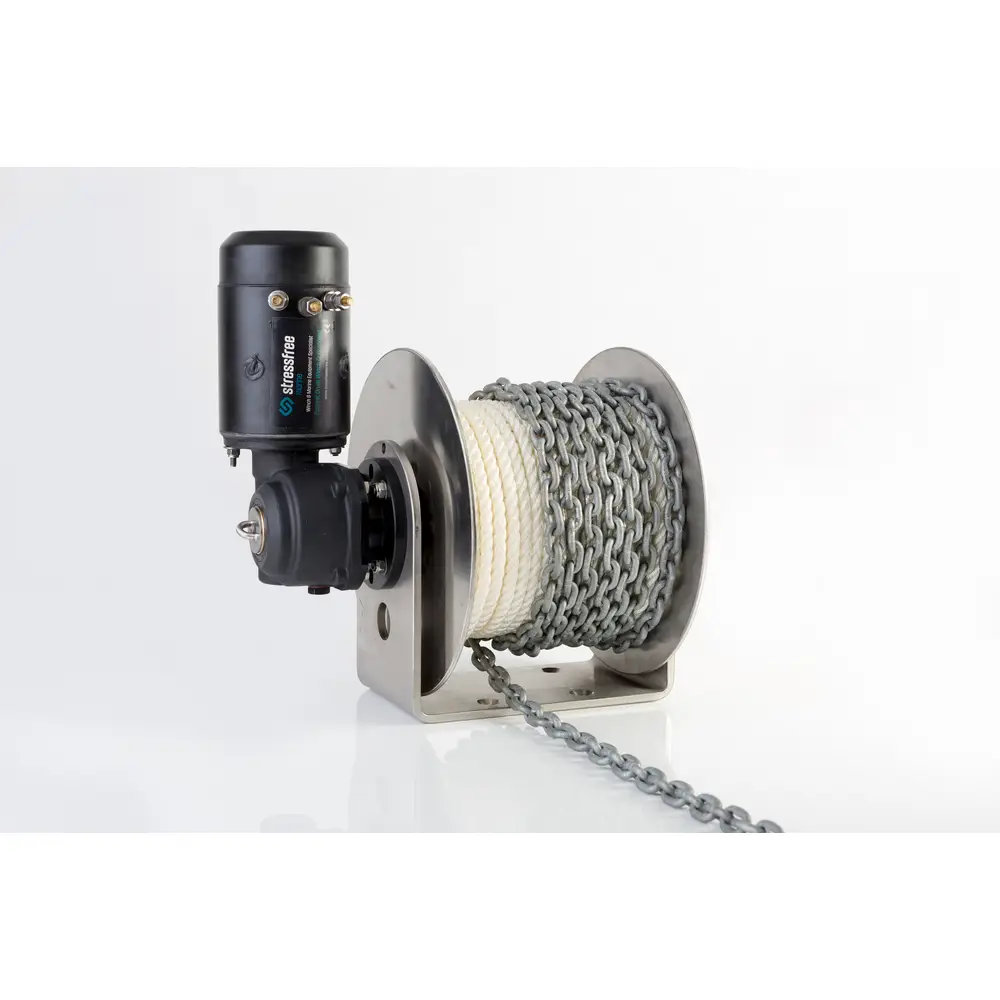

Stressfree Midi Anchor Winch

Description

Why Stressfree?

• 36 month warranty – Recreational Use
• Proven 20 year history
• Fastest standard power up/power down winch on the market
• Emergency override
• Quality European manufactured motor and gearbox
• Innovation is our game

* Suitable for boats from 6 – 7 metres

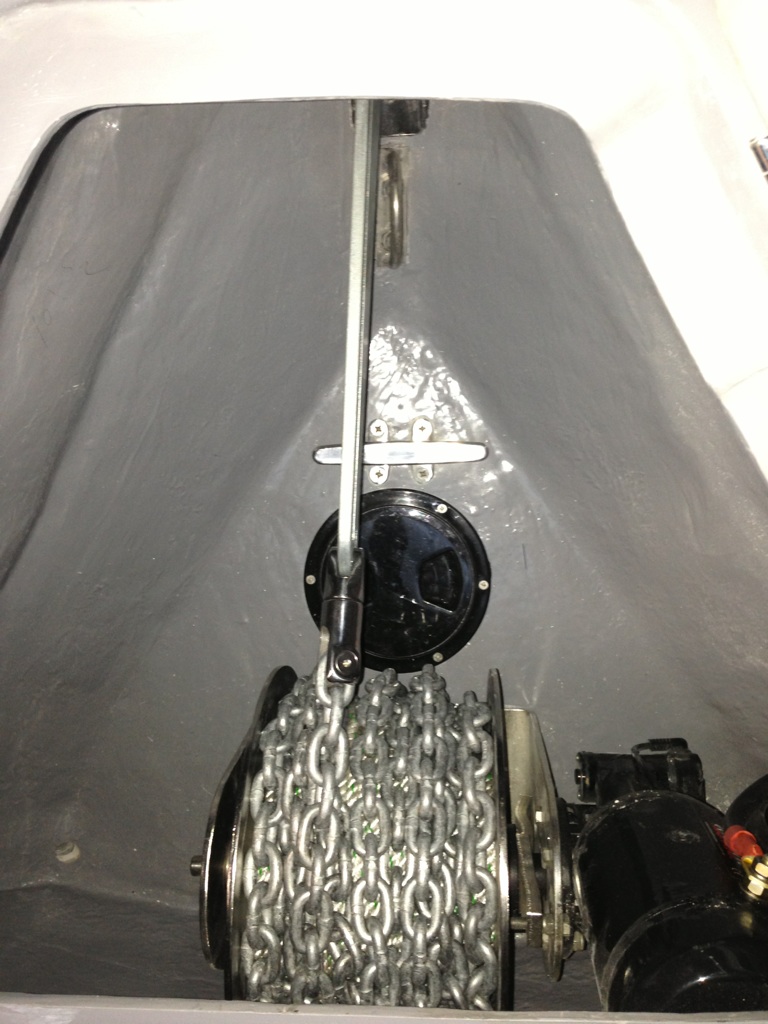

* Fits neatly into the anchor well
* The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
* 1400 watt motor
* Constructed from 316 marine grade stainless steel
* Maximum lifting capacity 250 kilos (when the drum diameter is small)
* Holding capacity at anchor is 1800 kilos
* Rated to 135 amps
* Normal running the Stress Free will use 25 – 30 amps and under load up to 55 amps
* To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom)
* Recommend dual batteries with the battery switch on BOTH
* Can be deck mounted
Drum capacity
• 85 metres of 10mm nylon plus 8 metres of 8mm chain OR
• 110 metres of 8mm nylon plus 8 metres of 8mm chain OR
• 200 metres of 6mm double braid eye spliced to 5 metres of 8mm nylon and 8 metres of 8mm short link chain
The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations. Another 8 adjustment angles are available at 30º and 45º from each of the basic 4 mounting holes.
