Bow Thruster 45Kgf

Bow Thruster 45Kgf

$1,613.91 USD

In stock

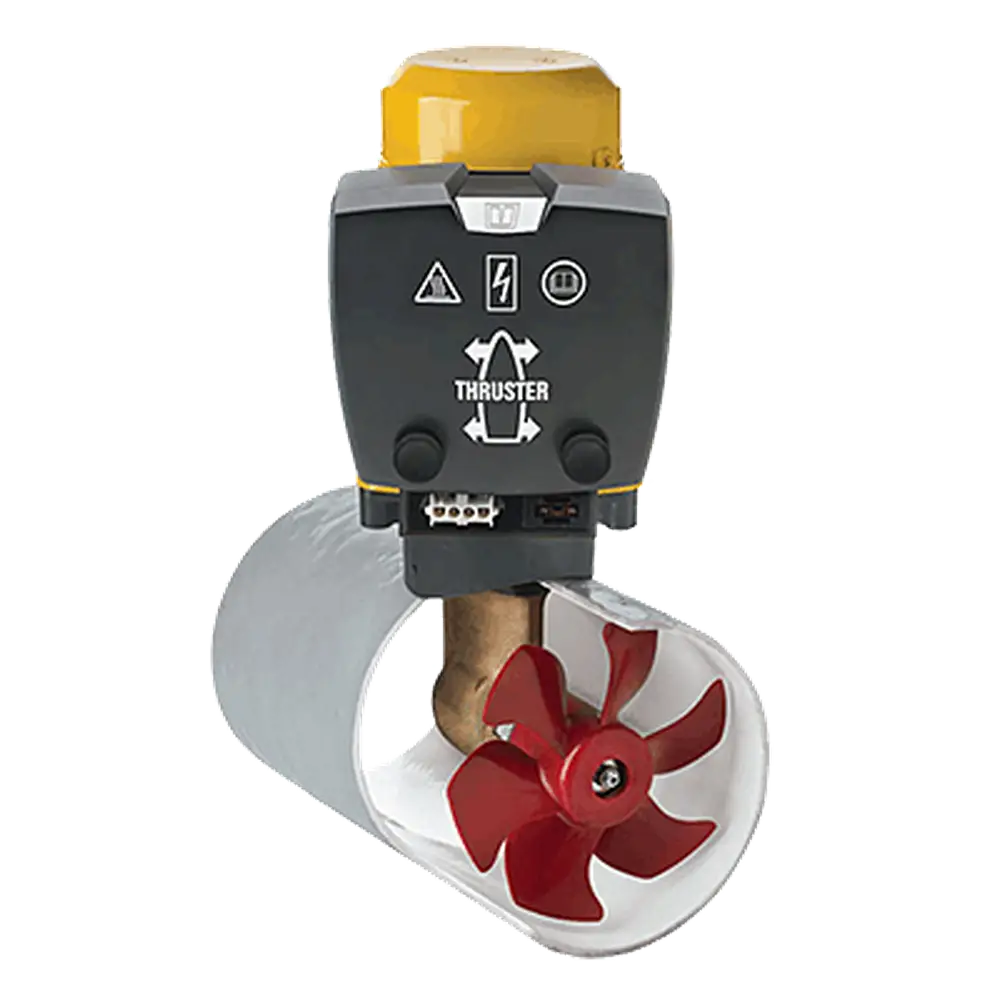

Take complete command in tight spaces with the high-output Vetus 12V Bow Thruster, engineered to deliver a robust 45 kgf of thrust force. Ideal for vessels ranging from 7.5 to 11.5 metres, this system features an advanced 6-blade propeller developed in partnership with MARIN to provide 9% more thrust in both directions with significantly less noise and cavitation.

Key Features

  • Delivers 45 kgf of reliable thrust for boats 7.5 to 11.5 metres

  • High-quality, high-output 12V DC motor

  • Advanced single 6-blade propeller design yields 9% more thrust with reduced cavitation and tunnel noise

  • Flexible drive coupling eliminates shear pins for smooth operation

  • Durable bronze streamlined lower leg

  • Multi-station control compatibility with simple wiring setup

In stock

Product Code: BOW45
Category:

Description

Technical Information

  • Thrust: 45 kgf (450 N)

  • Boat Size: 7.5 to 11.5 metres

  • Voltage: 12V DC

  • Power Output: 3 kW

  • Ignition Protection: No

  • Internal Tunnel Diameter: 125 mm (Tunnel Diameter F: 130 mm)

  • Weight (Excluding Tunnel): 20 kg

  • Current Consumption: 300 Amps

  • Max Operating Time: 4 minutes

  • Main Fuse (“Slow Blow”): 250 Amps

  • Recommended Batteries (12V): Min $1 \times 105\text{ Ah}$ / Max $1 \times 200\text{ Ah}$

  • Battery Cables (Pos./Neg. Runs 0-12m): Minimum $70\text{mm}^2$

  • Battery Main Switch: Model BATSW / Type BPMAIN250 / 12

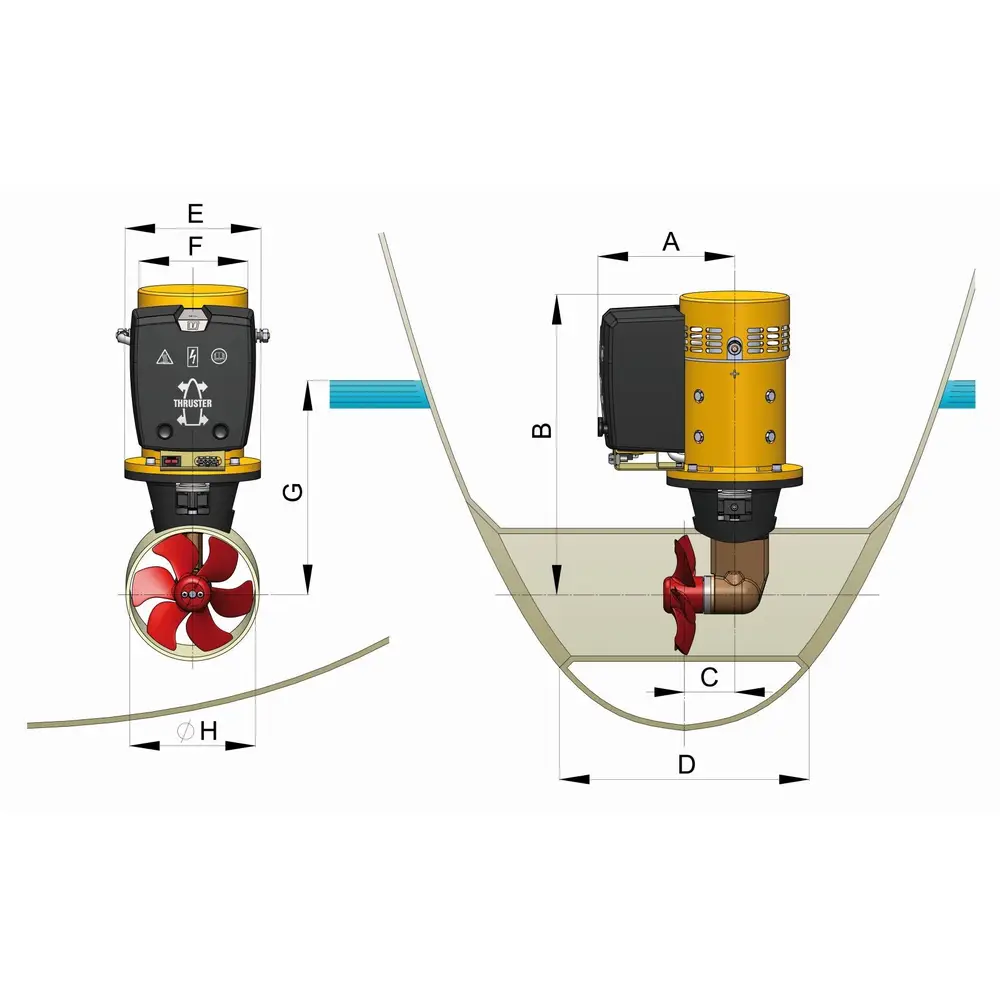

Specifications

Dimensions:

    • A: 143 mm

    • B: 365 mm

    • C: 79 mm

    • D (Tunnel Depth): Minimum 250 mm / Maximum 500 mm

    • E: 160 mm

    • G: Minimum 125 mm

    • H: 125 mm
