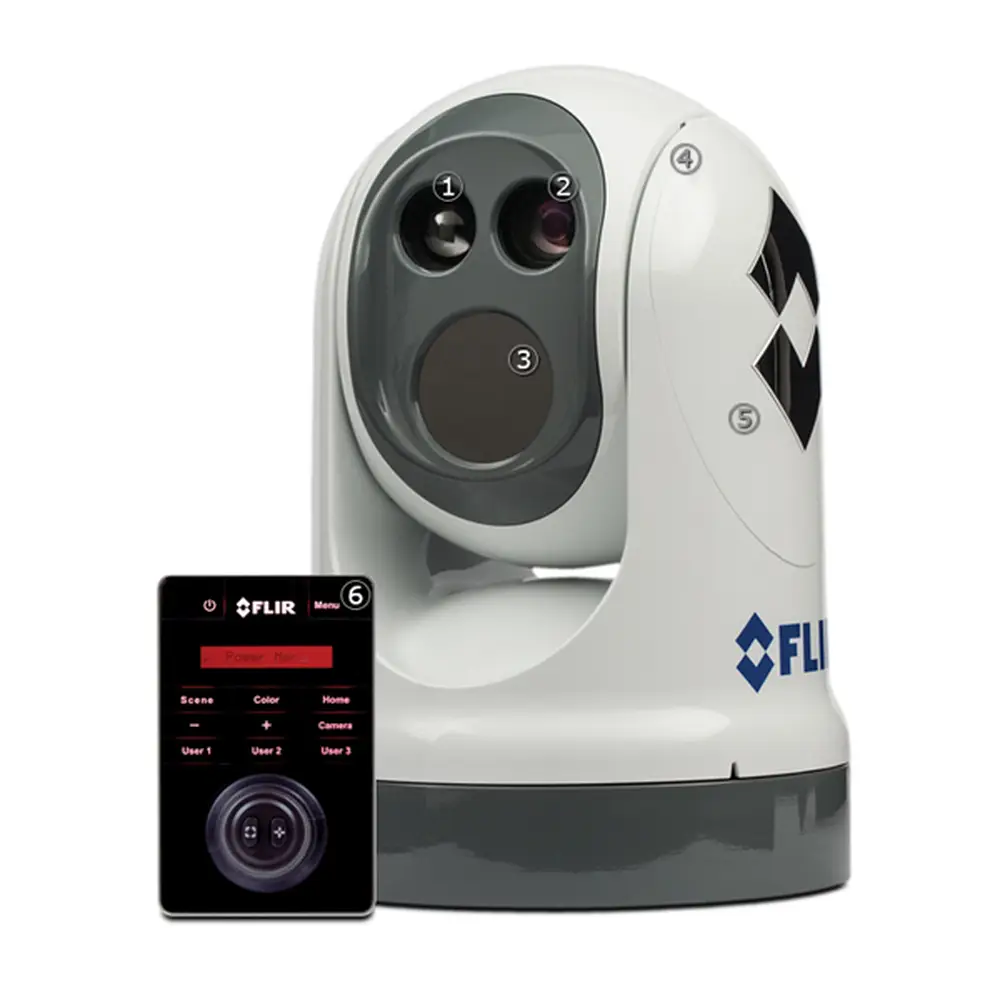

FLIR M-400 with Radar / Video Tracking

Multi-Sensor Marine Thermal Night Vision

POA

In stock

Product Code: M400

Categories: FLIR Marine Cameras, FLIR Thermal Imagers, Night Vision

Description

The FLIR M400 thermal night vision camera is a versatile, high-performance pan / tilt marine camera system designed for best-in-class short and long range target identification. The FLIR M400’s advanced 640×480 sensor delivers crisp thermal video images in total darkness and low-light conditions. An integrated HD color visible camera and tight-beam LED spotlight augment target identification for added safety.

The FLIR M400 has a continuous optical zoom lens (up to 4X) that allows operators to see other vessels and targets at longer ranges. Active gyro-stabilization ensures a steady image, plus radar tracking and optional video tracking keep potentially dangerous targets in view at all times.

Click on DOWNLOAD tabs below for manuals and brochure

Note: M-400 supercedes FLIR Voyager

M400 Applications

Short and Long-range Detection – Recognize marine traffic and key landmarks at night

Scan for other vessels using crisp 640 LCD display

Quickly recognize buoys in channels or open water

Detect key landmarks, such as islands or docks

Thermal and Visible-Light Payloads – Combination thermal detection and visible identification

Up to 4X Optical Thermal Zoom for 18° to 6° HFOV

HD Color 30 X Zoom provides 64° to 2.3° HFOV

Illuminate and identify nearby targets with powerful LED beam

Enhanced Target Identification – Operators can precisely locate and track objects

Gyro-stabilization creates smooth video in rough water

Follow specic radar returns using NMEA 0183 protocol

Lock on and follow any thermal or visible object in the camera’s field of view

Specifications

THERMAL IMAGING SPECIFICATIONS

Detector Type 640 × 480 VOx Microbolometer

Field of View (H x V)18° to 6° / 1.5° HFOV with e-zoom

Focal Length35mm (wide) to 105mm (narrow)

E-Zoom1x to 4x

Image ProcessingFLIR Propriety Digital Detail Enhancement™

DAYLIGHT IMAGING SPECIFICATIONS

Detector TypeLong range color daylight and low light viewing

ResolutionHigh Definition up to 1080/30p

Minimum Illumination>0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W)

Zoom30X Optical Zoom

Focal Length129 mm to 4.3 mm

Field of View64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom

SPOTLIGHT SPECIFICATIONS

TypeLED

Lumens580

Beam5° Divergence Angle

SYSTEM SPECIFICATIONS

Video TrackingNoYes

Pan / Tilt Coverage360° Continuous Pan, +/-90° Tilt

Video OutputDual, independent H.264 Network Video Streams
HD-SDI Lossless Digital Video Interface
High Definition Serial Data Interface
Broadcast-quality video output
Provides HD video over coax cable
Switchable Composite Analog Video Output (SD) NTSC or PAL

Integration OptionsIP Control by FLIR Joystick, PC,and Web Browser
Integration with leading Multifunction Navigation Displays (Nexus SDK)
FLIR Sensors Manager Integration
RS-485/422 Serial Control by Pelco D
NMEA 0183 Serial Communications (for radar tracking)

Camera Head Size15.18″ x 18.68″ / 15.5″ x 22″ Swept Volume Cylinder

Weight45lbs.

Connector TypesBNC

Power Requirements24V DC

Power Consumption<50 W nominal; 130 W peak, 270 W 2/heaters

ENVIRONMENTAL

Operating Temperature Range-20 to 55 deg C

Storage Temperature Range-50°C to 80°C

Automatic Window DefrostStandard

OTHER

Typical ConfigurationCamera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser
